3MZ-FE 3.3L
TID $07: A/F Sensor Heater
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.00017 (A) | Maximum A/F sensor heater current (bank 1) | Malfunction criterion |
| 1 | $10 | Multiply by 0.00017 (A) | Maximum A/F sensor heater current (bank 2) | Malfunction criterion |

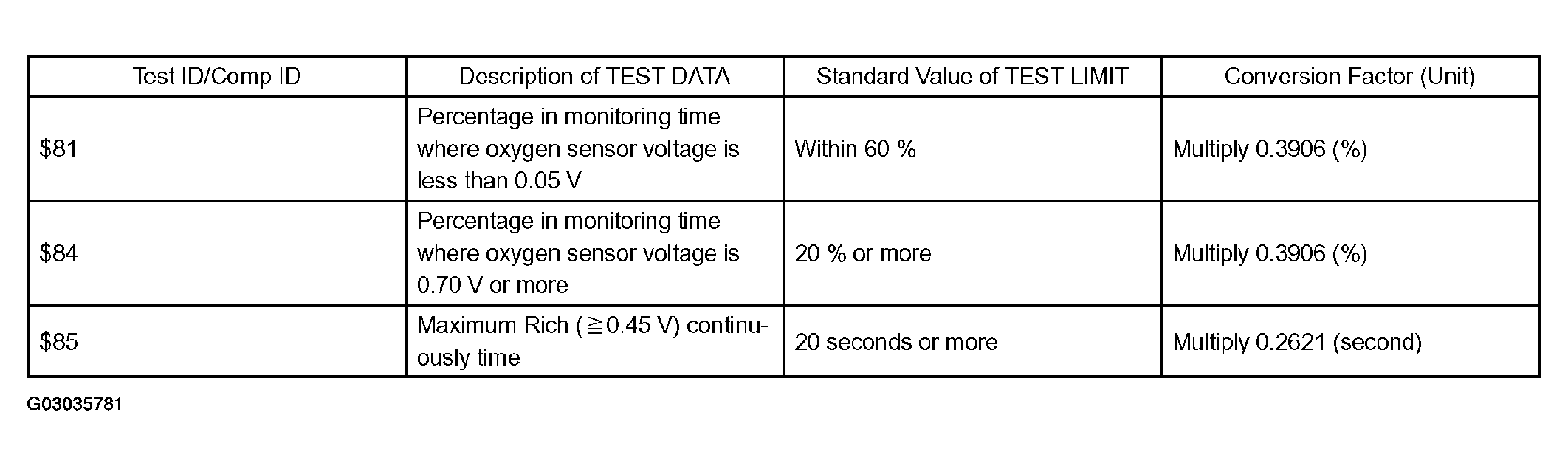

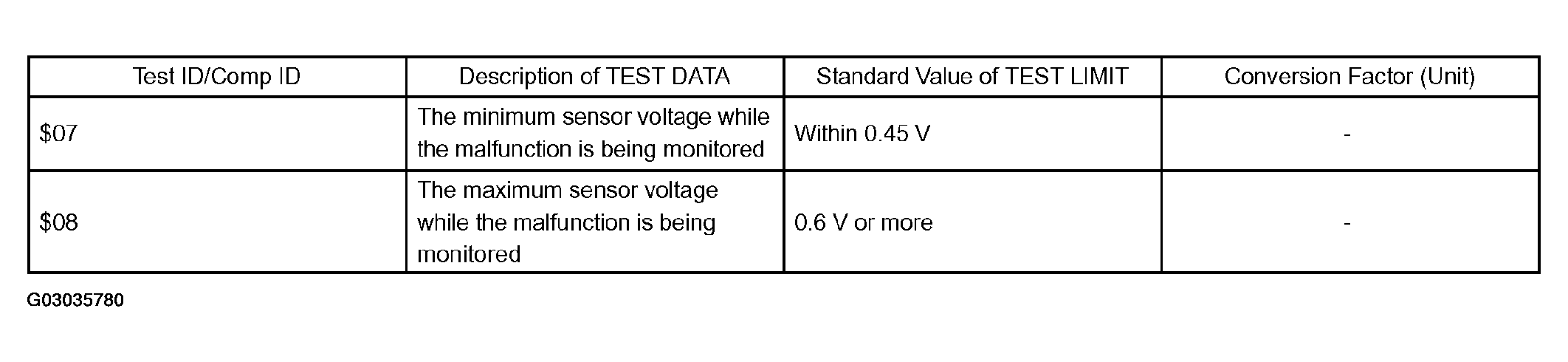

TID $04: HO2S Heater
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 1 | $02 | Multiply by 0.000076 (A) | Maximum HO2S heater current (bank 1 sensor 2) | Malfunction criterion |
| 1 | $20 | Multiply by 0.000076 (A) | Maximum HO2S heater current (bank 2 sensor 2) | Malfunction criterion |
TID $08: THERMOSTAT
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.625 and subtract 40 (°C) | ECT sensor output when estimated ECT reaches malfunction criterion | Malfunction criterion |
TID $01: CATALYST
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 0 | $01 | Multiply by 0.0078 (no dimension) | Catalyst deterioration level bank 1: Determined by waveform of A/F sensor and HO2S | Malfunction criterion |
| 0 | $02 | Multiply by 0.0078 (no dimension) | Catalyst deterioration level bank 2: Determined by waveform of A/F sensor and HO2S | Malfunction criterion |
TID $02: EVAP - LEVII VACUUM MONITOR
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 1 | $01 | Multiply by 0.183 (mmHg) | Test value of EVAP VSV stuck closed: Determined by fuel tank pressure change during vacuum introduction | Malfunction criterion |
| 0 | $02 | Multiply by 0.0655 (Seconds) | Test value of EVAP VSV stuck open: Determined by abnormal state continuation time | Malfunction criterion |
| 0 | $03 | Multiply by 0.0655 (Seconds) | Test value of canister closed valve (CCV): Determined by abnormal state continuation time | Malfunction criterion |
| 0 | $04 | Multiply by 0.0458 (mmHg) | Test value of 0.04 inch leak: Determined by fuel tank pressure change | Malfunction criterion |
| 0 | $05 | Multiply by 0.0458 (mmHg) | Test value of 0.02 inch leak: Determined by fuel tank pressure change | Malfunction criterion |
TID $06: A/F SENSOR
| TLT | CID | Unit Conversion | Description of Test Value | Description of Test Limit |
|---|---|---|---|---|
| 0 | $01 | Multiply by 0.000244 (No dimension) | Parameter for identify A/F sensor response rate (bank 1) | Malfunction criterion |
| 0 | $11 | Multiply by 0.000244 (No dimension) | Parameter for identify A/F sensor response rate (bank 2) | Malfunction criterion |
