Home >> Toyota >> 2004 >> Matrix Base, FWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Vehicle Intrusion Protection System - Diagnostics >> Location

Vehicle Intrusion Protection System - Diagnostics: Location

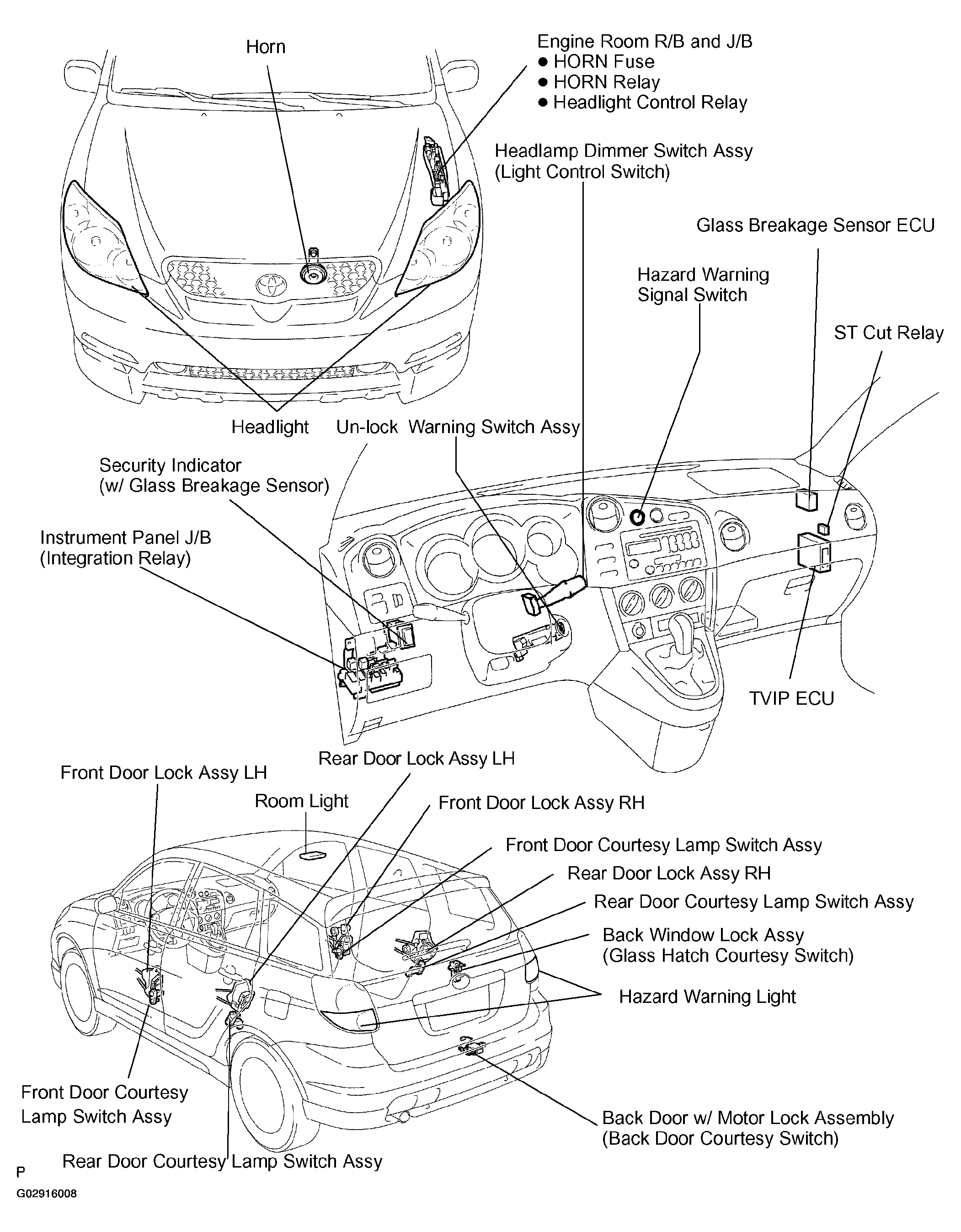

Fig 1: Locating TVIP System Components

G02916008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
