Starter Cut Relay Circuit: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

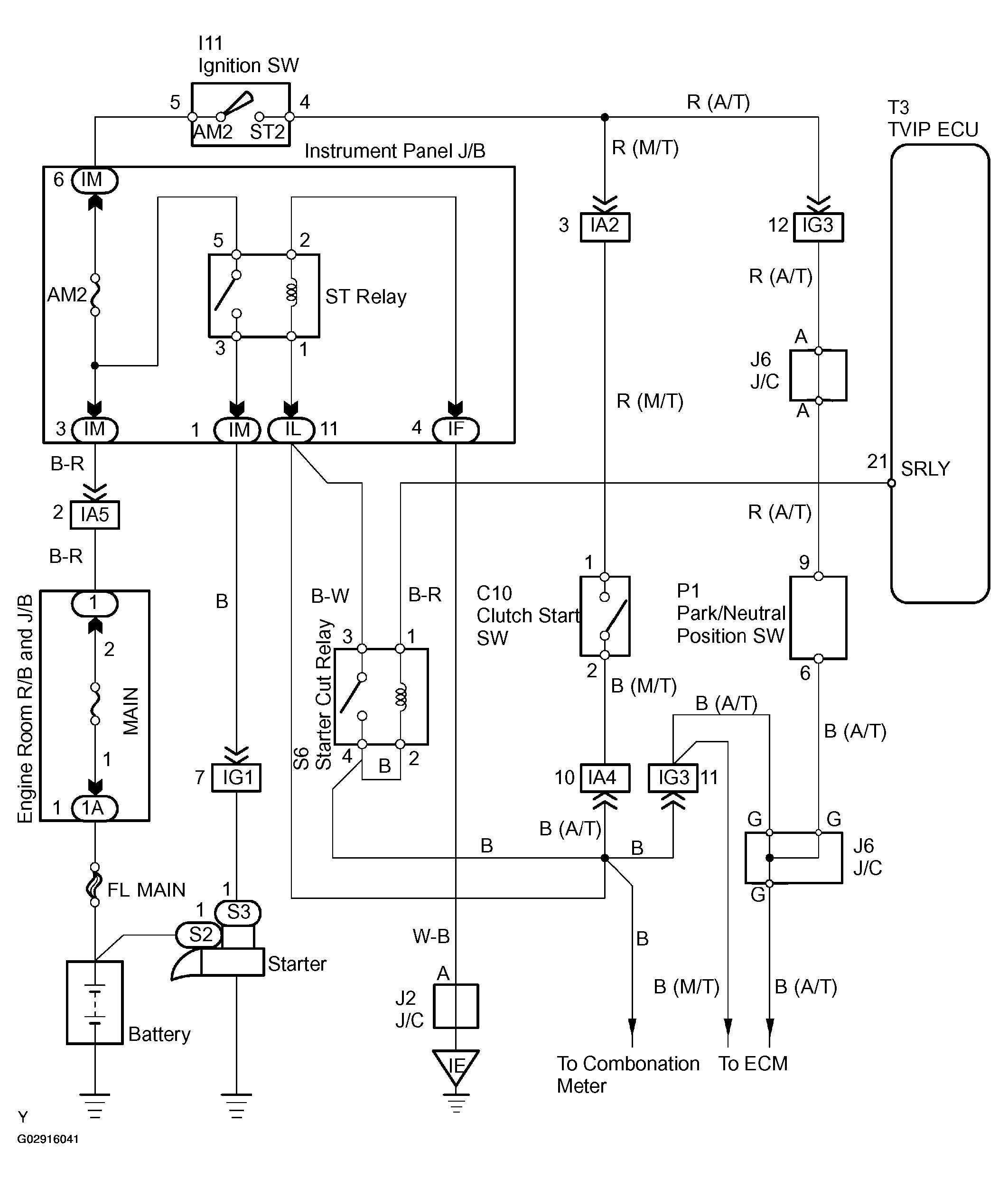

Fig 1: Wiring Diagram - Starter Cut Relay
G02916041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
