Chapter 1: Electronic Circuit Matrix Chart

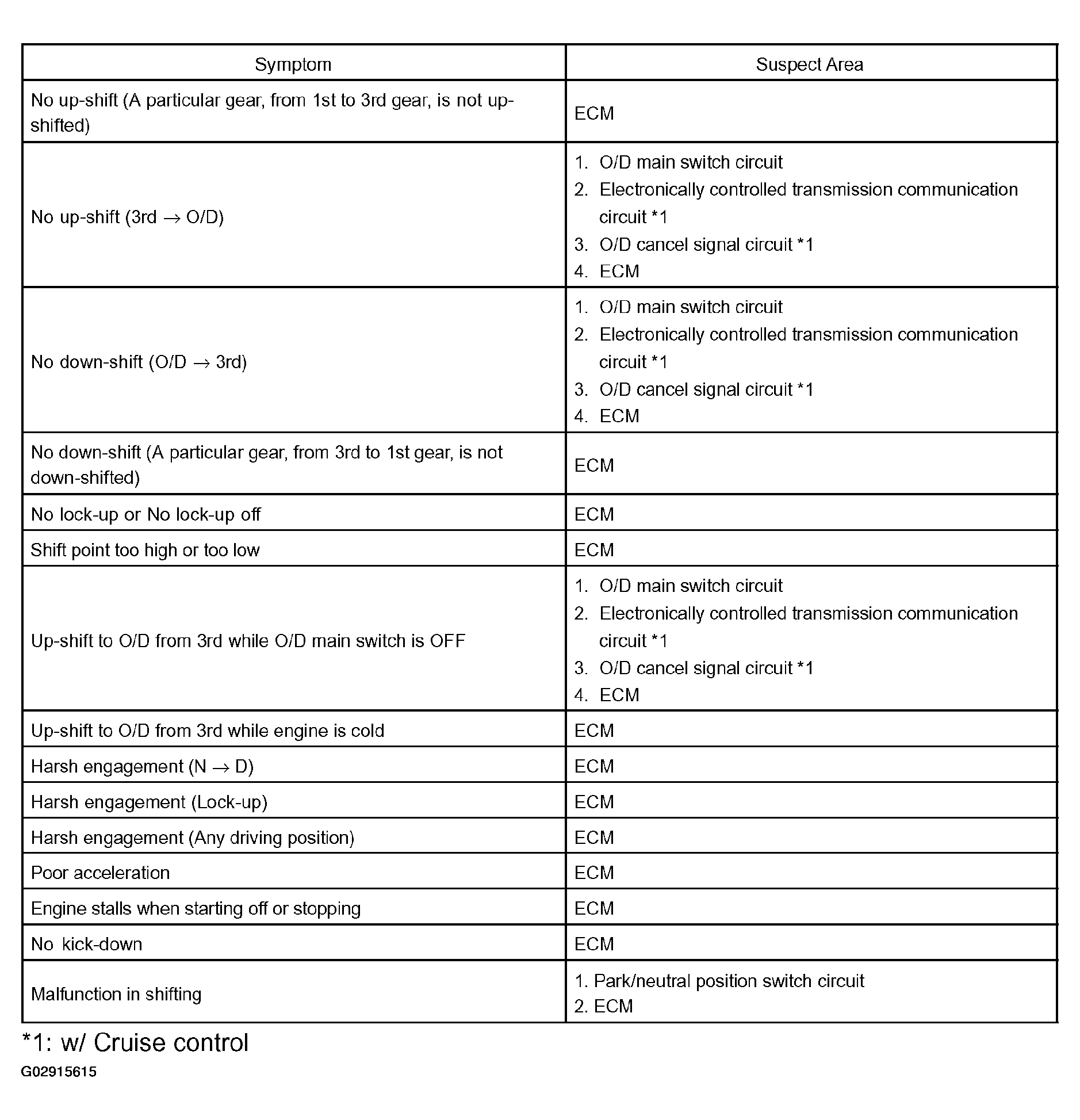

Fig 1: Electronic Circuit Check Table

G02915615

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
