Automatic Transaxle Assembly (A246E): Components

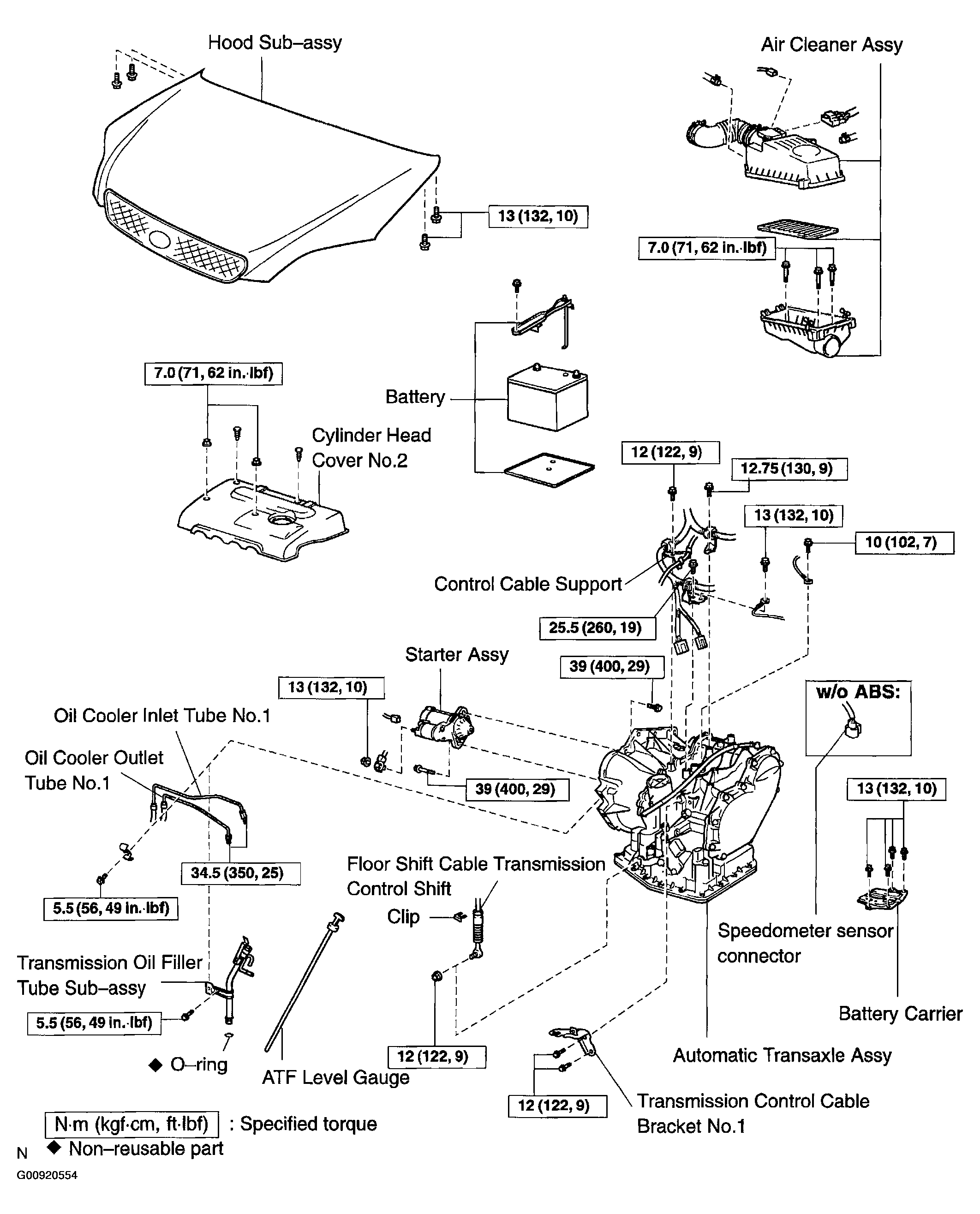

Fig 1: Identifying Automatic Transaxle Assy Components (A246E) (1 Of 2)
G00920554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

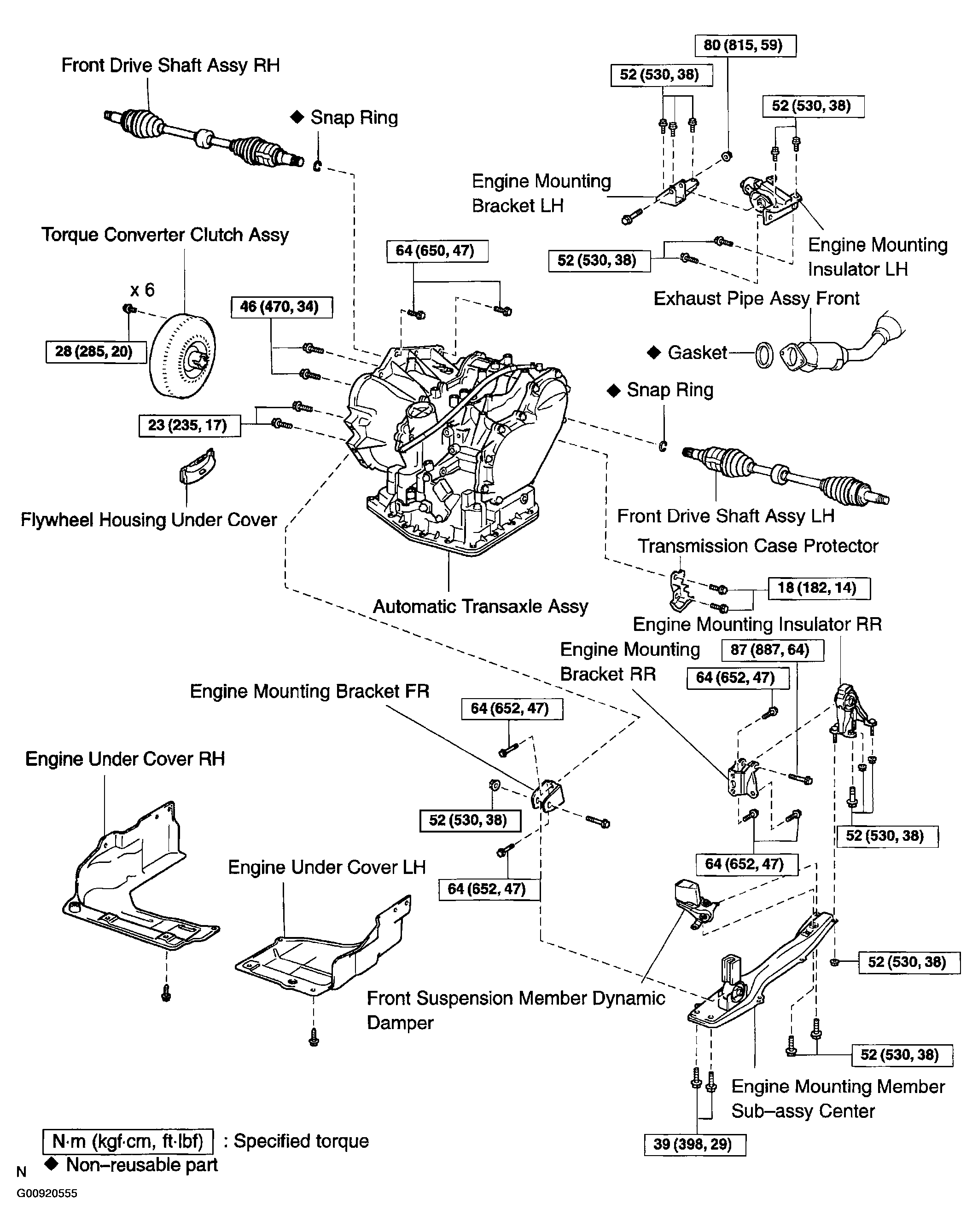

Fig 2: Identifying Automatic Transaxle Assy Components (A246E) (2 Of 2)
G00920555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
