Pressing Power Switch Does Not Start System: Wiring Diagram

NOTE: For full system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

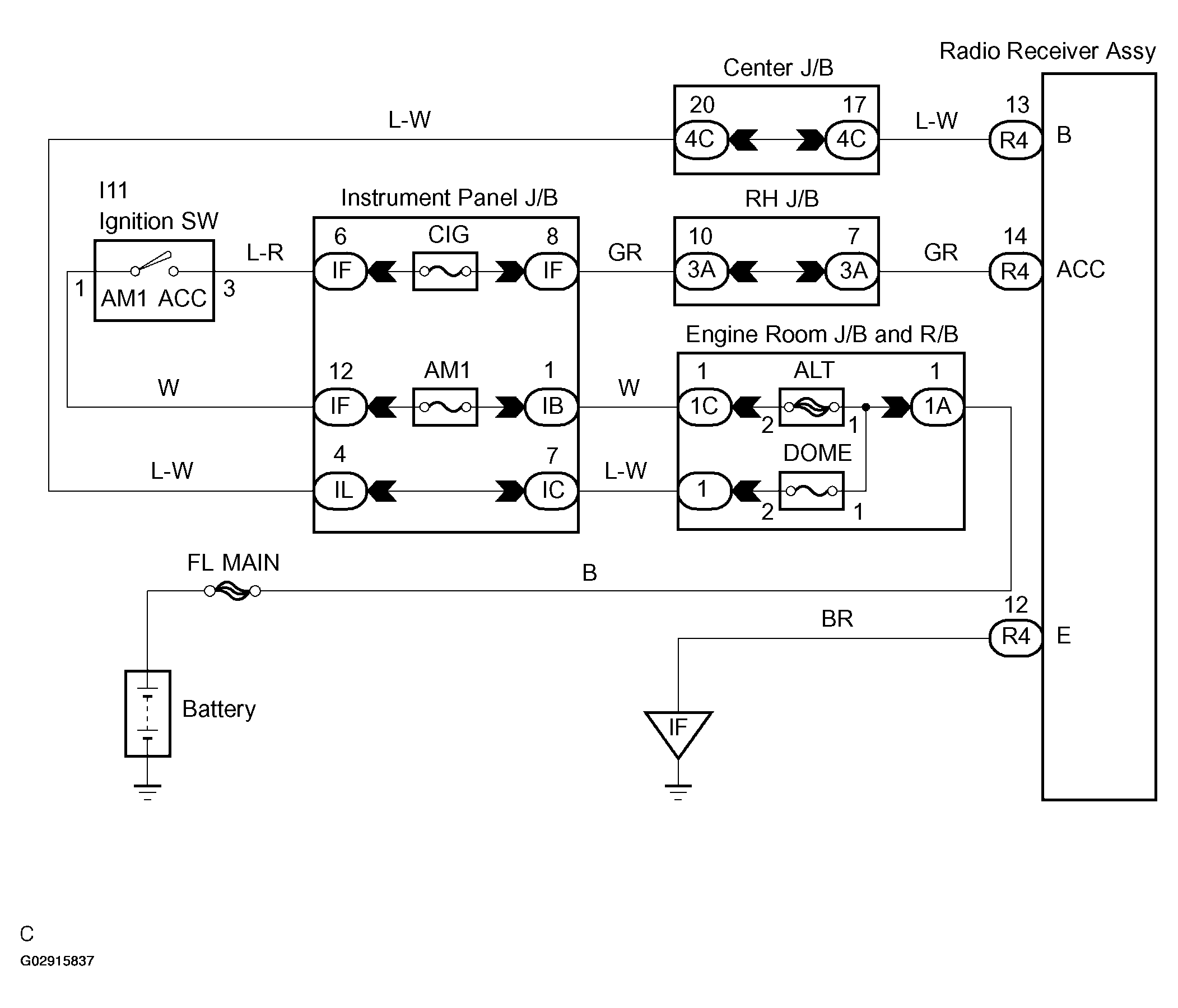

Fig 1: Audio System Power Switch Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
