Stop Light Switch Circuit: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

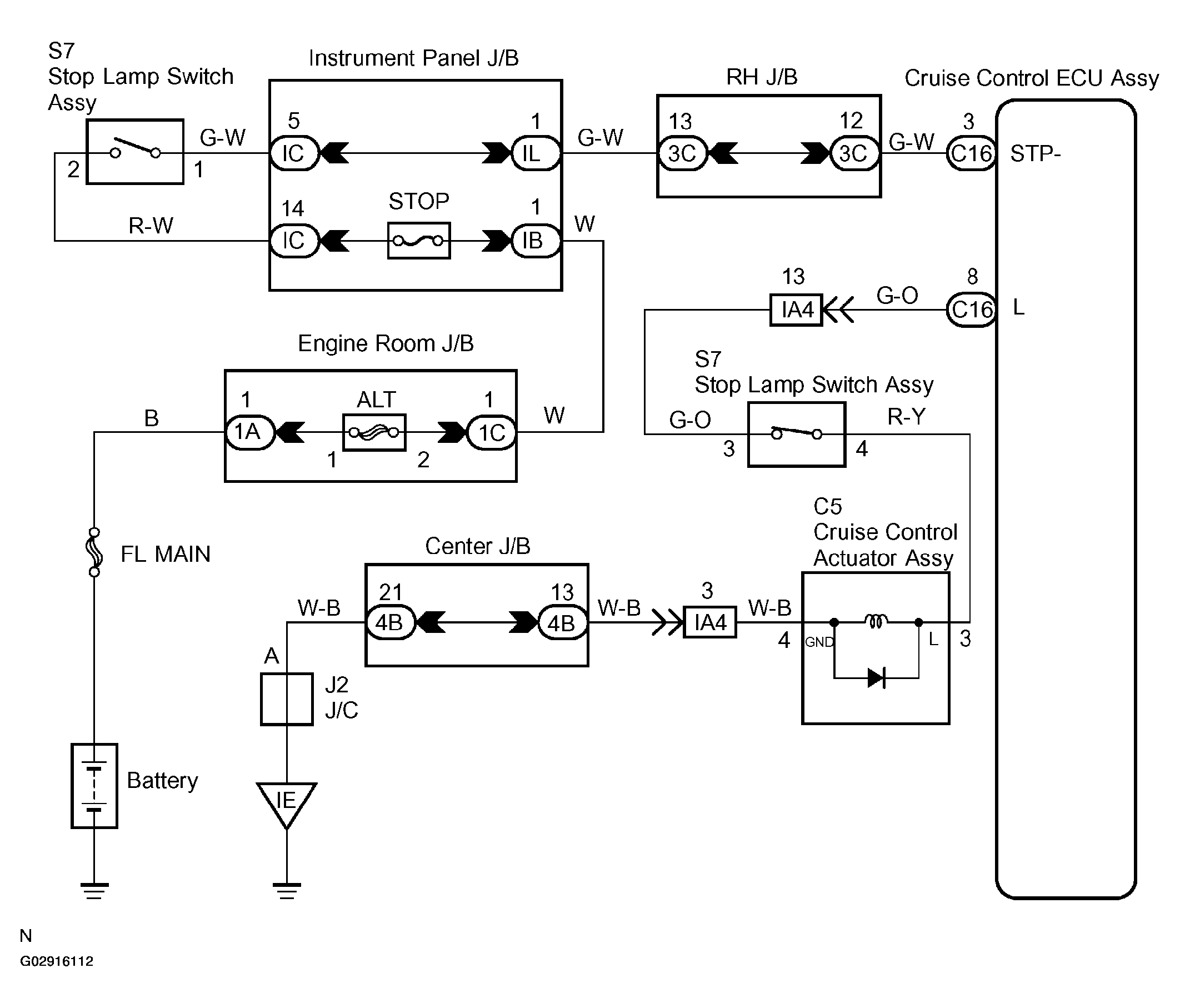

Fig 1: Wiring Diagram - Stop Light Switch

G02916112

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
