Shift Lock Control Ecu (ATM): Inspection

INSPECT SHIFT LOCK CONTROL ECU
1. Disconnect the connector of shift lock control ECU.
2. Using an ohmmeter, measure the resistance between terminals.

  Fig 1: Terminals Continuity Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

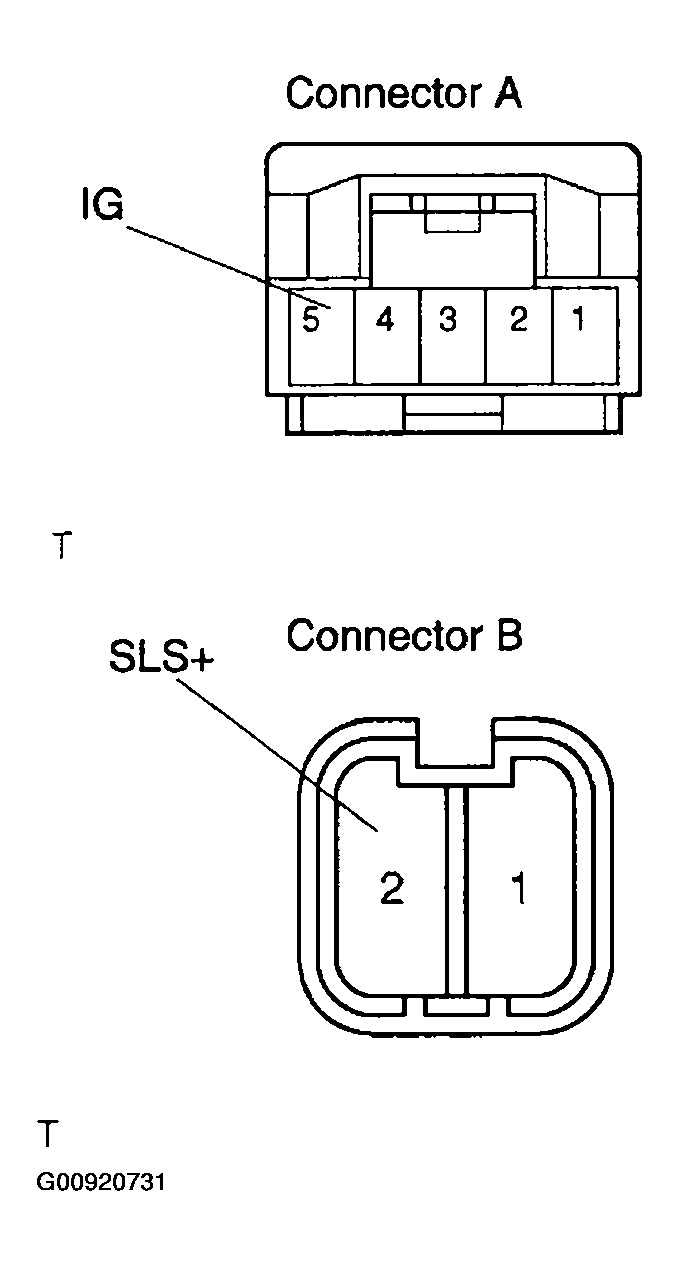

  Fig 2: Identifying Shift Lock Control ECU Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

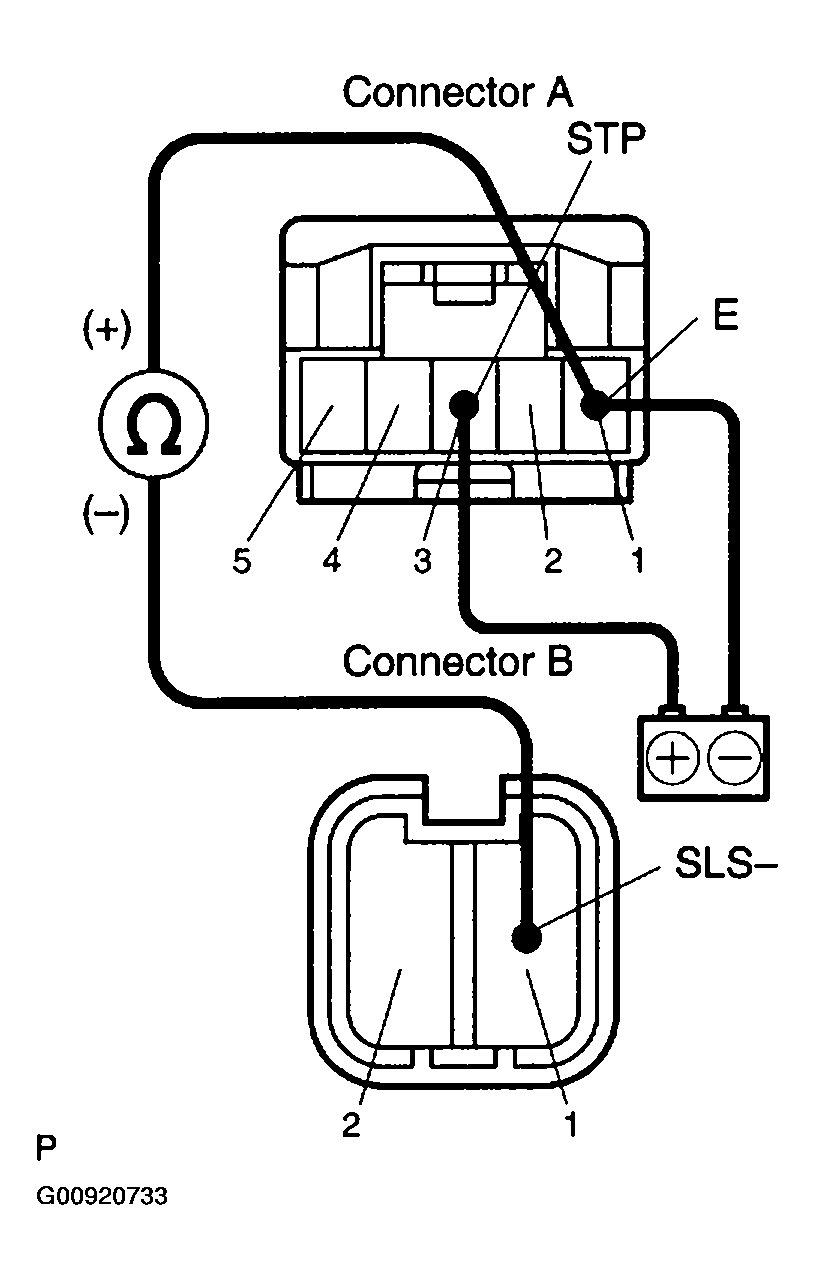

3. Connect STP terminal to the batteries' positive (+) terminal, and E terminal to the battery negative (-) terminal, and apply about 12 V between STP - E terminals.
4. Using an ohmmeter, measure the resistance between terminals.

  Fig 3: Terminals Continuity Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: Inspecting Shift Lock Control ECU Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
