Floor Shift Assembly (ATM): Components

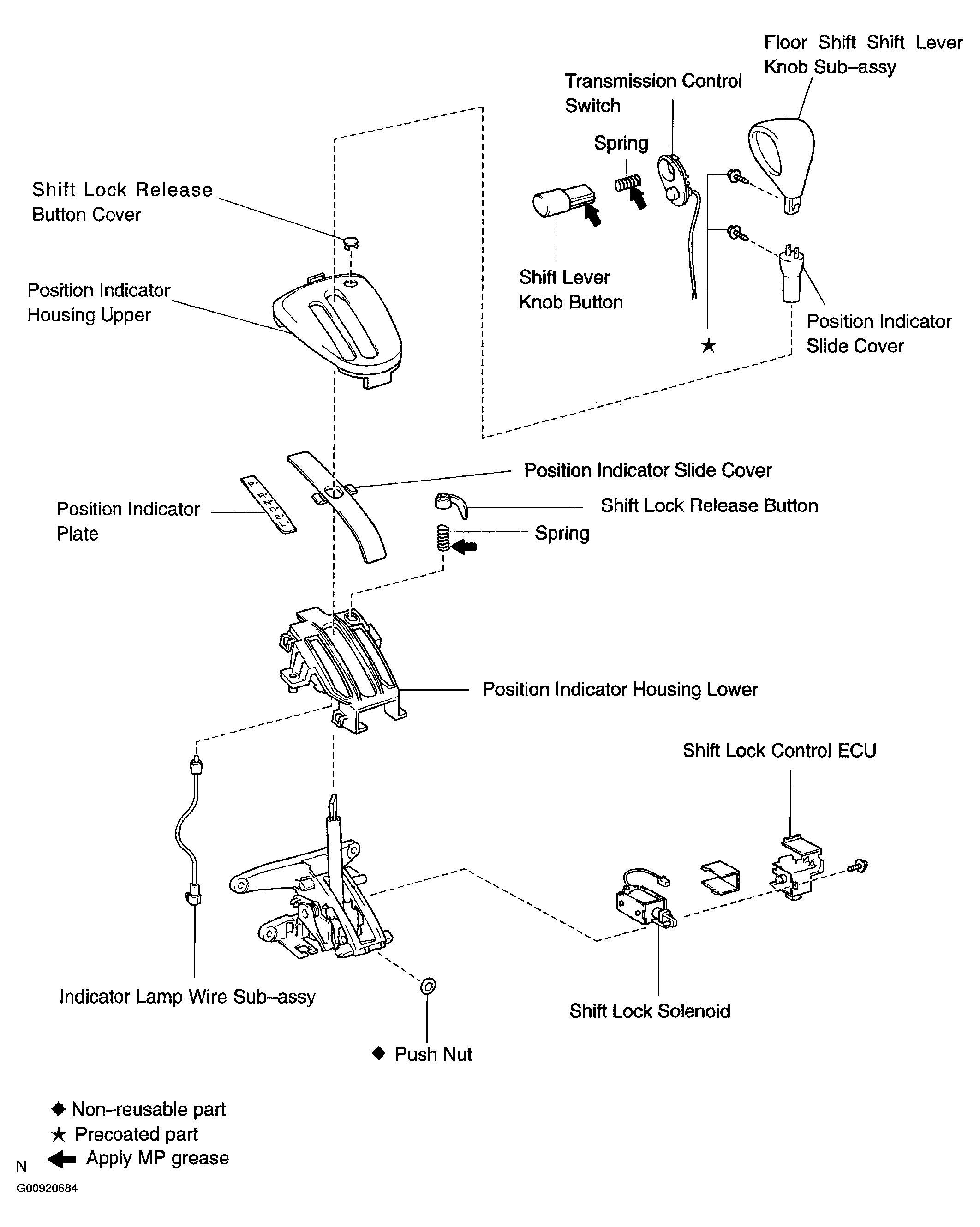

Fig 1: Identifying Floor Shift Assy Components (ATM) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

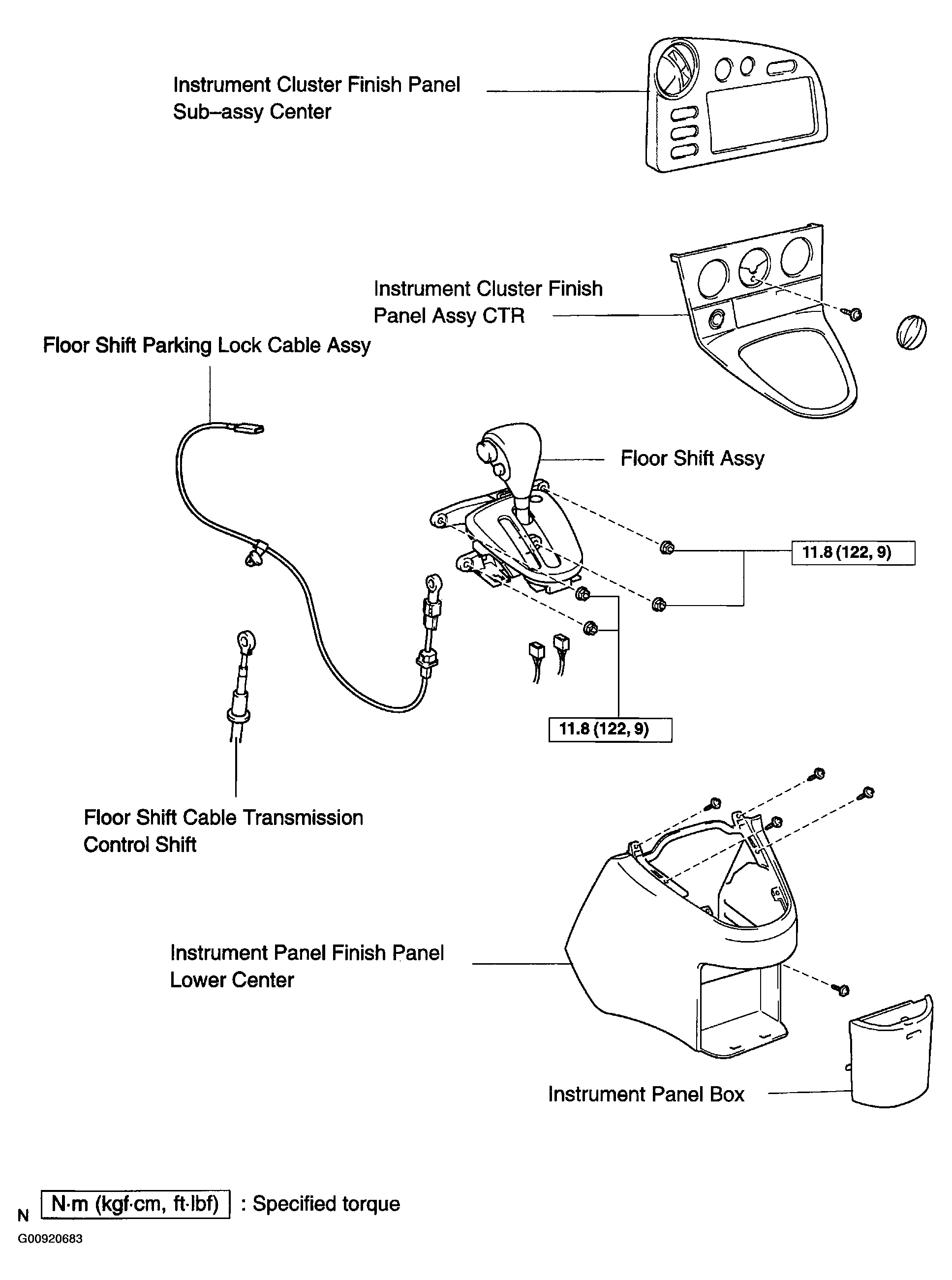

Fig 2: Identifying Floor Shift Assy Components (ATM) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
