Automatic Transaxle Assembly (U341F): Components

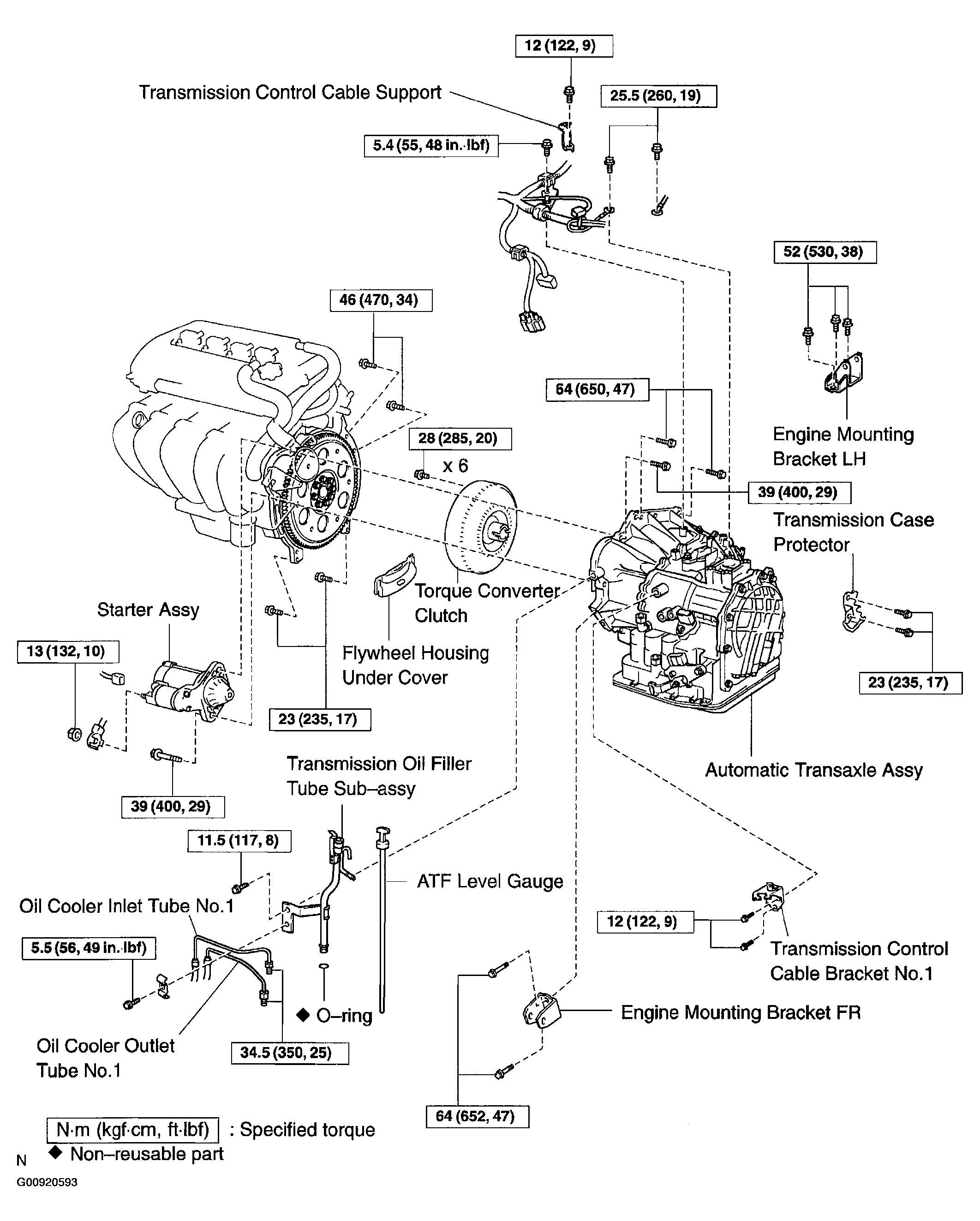

Fig 1: Identifying Automatic Transaxle Assy Components (U341F)

G00920593

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
