Vane Pump ASSY: Components

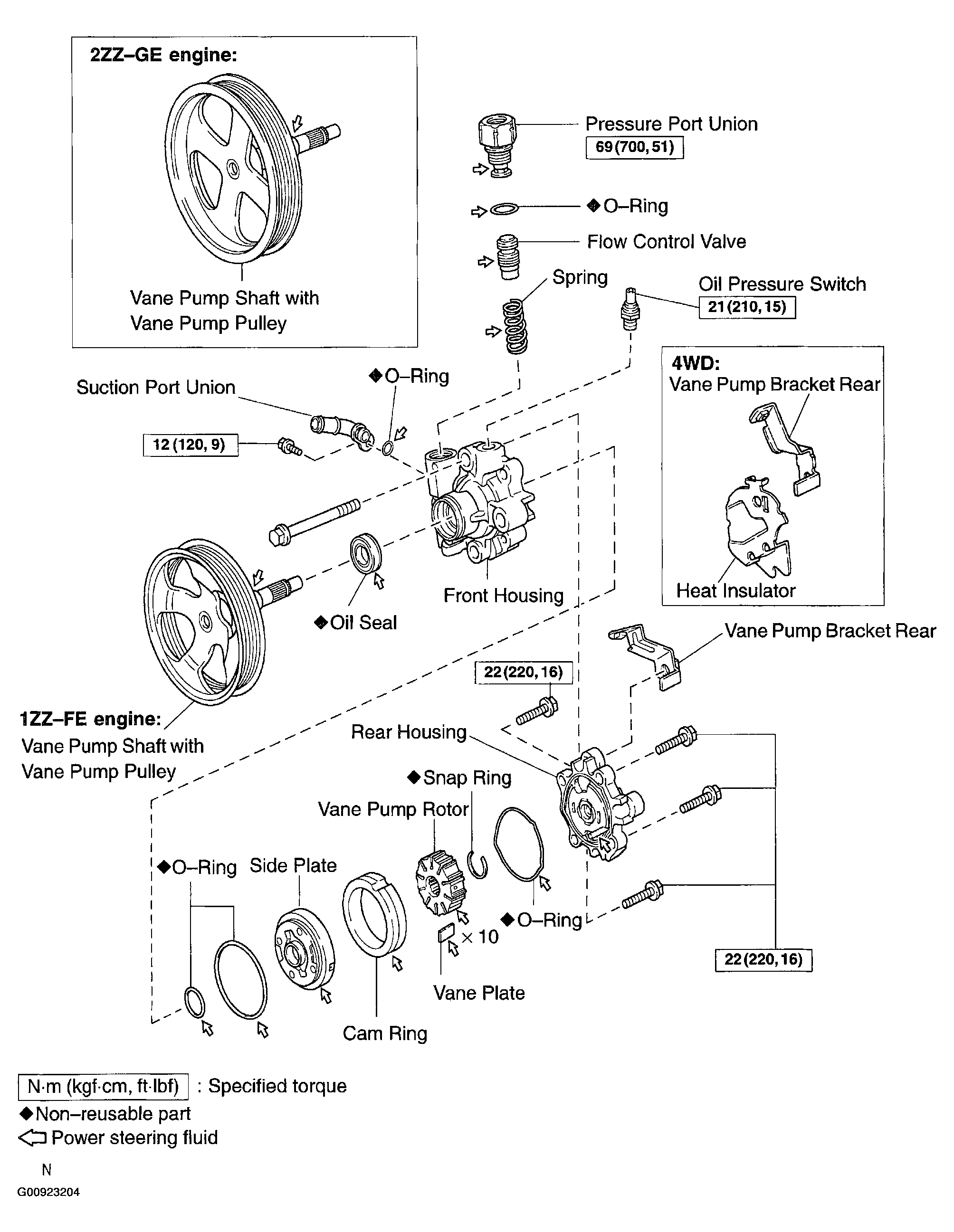

Fig 1: Identifying Vane Pump Assy Components

G00923204

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
