Section 999 (Headlight & Taillight System): Removal

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HEADLIGHT

    HINT:

    Follow the same procedure for RH as for LH.

    1. Remove a part of LH front fender liner.
    2. Remove a part of front bumper cover.
    3. Remove the bolt, 2 nuts and 2 clips.
    4. Lift up the front bumper and pull the headlight assembly towards the front of the vehicle, and disconnect the engagement of the headlight assembly.
    5. Install LH headlight assembly.
    6. Install a part of front bumper cover.
    7. Install a part of front fender liner.
    8. Inspect and adjust optical axis of headlight (See ADJUSTMENT ).

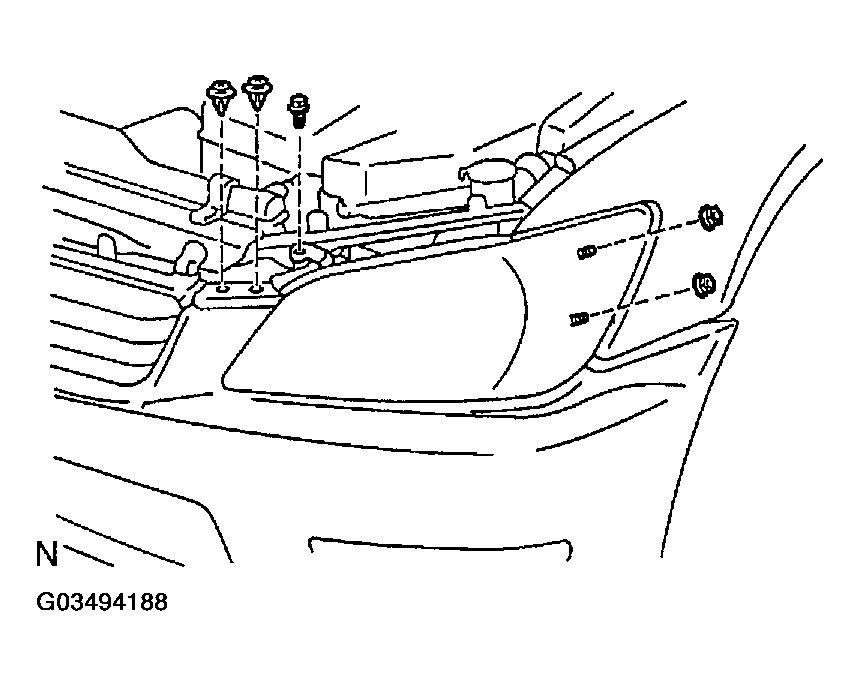

    Fig 1: Removing/Installing Headlight (1 Of 2)
    G03494188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

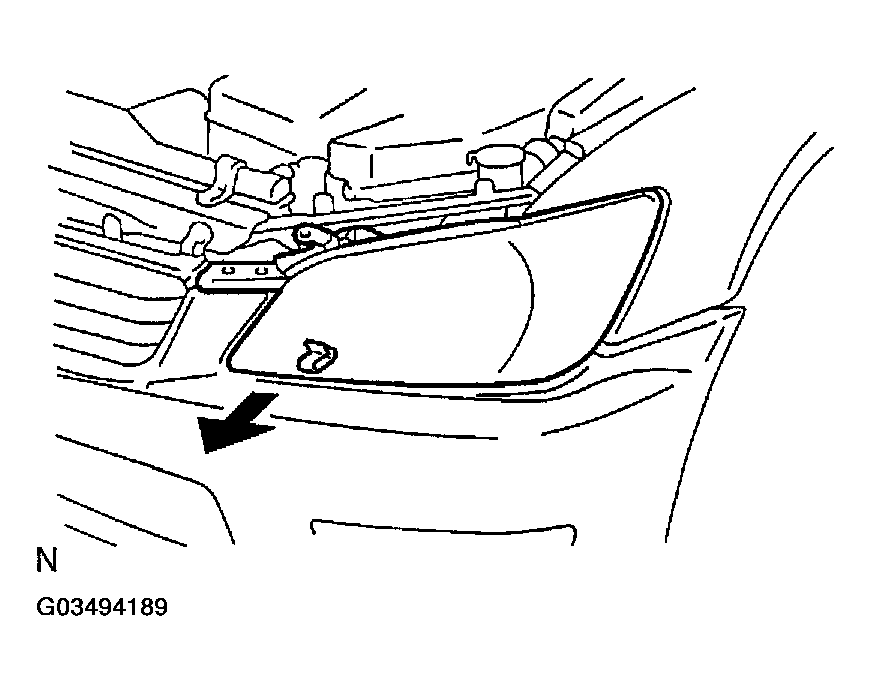

    Fig 2: Removing/Installing Headlight (2 Of 2)
    G03494189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Sedan:

    REMOVE REAR COMBINATION LIGHT

    HINT:

    • Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown in Fig 3 .
    • Follow the same procedure for RH as for LH.
    1. Remove luggage compartment trim side cover No. 2.
    2. Remove luggage compartment trim rear cover.
    3. Remove a part of LH luggage compartment trim side cover.
    4. Remove the 2 rear light covers and 2 bolts.

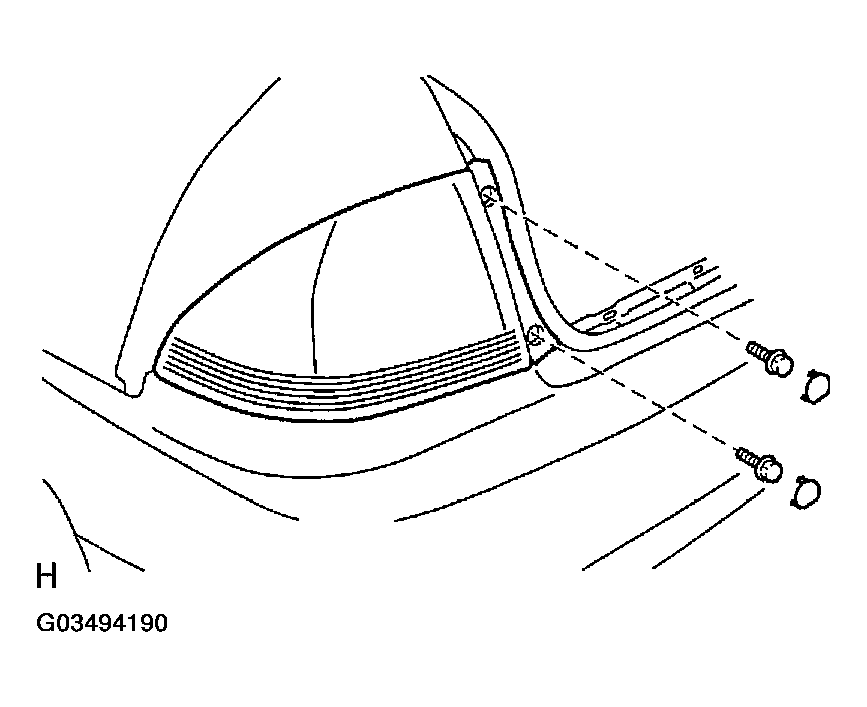

      Fig 3: Removing Rear Light Covers (Sedan)
      G03494190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Pull the pin toward the rear of the vehicle, and disconnect the engagement of 2 pins.

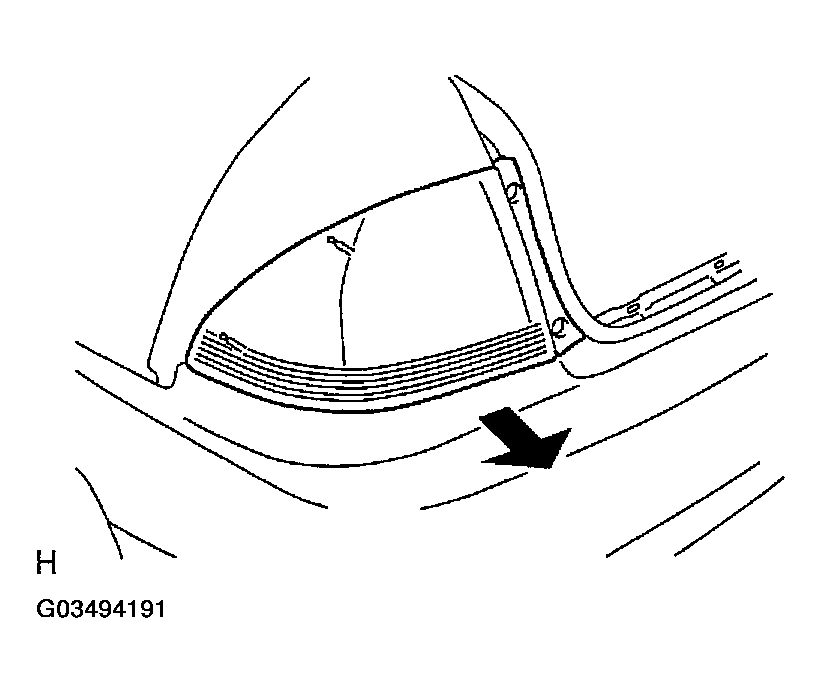

      Fig 4: Pulling Pin Toward Rear Of Vehicle
      G03494191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. From the inside of the luggage room, separate the connector and disconnect the LH rear combination light assembly.
  3. Wagon:

    REMOVE REAR COMBINATION LIGHT

    HINT:

    • Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown in Fig 5 .
    • Follow the same procedure for RH as for LH.
    1. Remove floor board and deck side board LH.
    2. Remove back door scuff plate.
    3. Remove a part of deck side trim board LH.
    4. Disconnect the bulb sockets and 3 nuts.

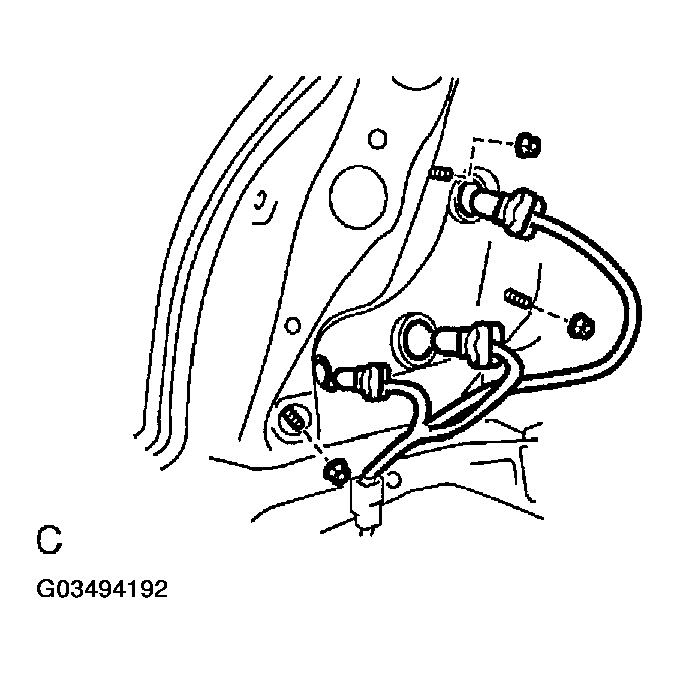

      Fig 5: Disconnecting Bulb Sockets (Wagon)
      G03494192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the combination light assembly.

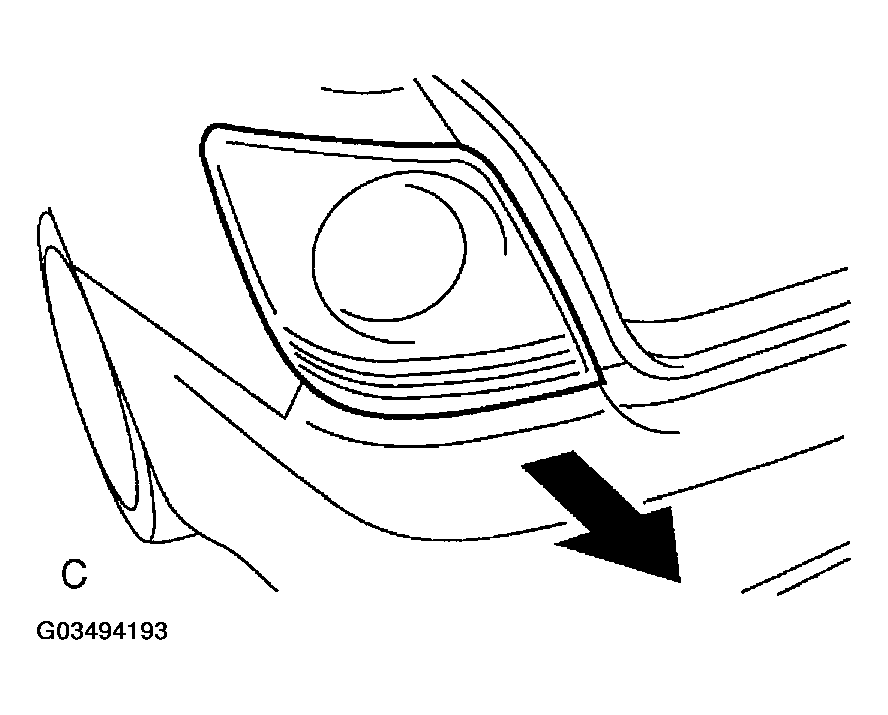

    Fig 6: Removing Combination Light Assembly (Wagon)
    G03494193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Sedan:

    REMOVE REAR COMBINATION BULB

    HINT:

    • Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown in Fig 7 .
    • Follow the same procedure for RH as for LH.
    1. Remove a part of LH combination light assembly.

      HINT:

      Remove the light unit from only the outside of the vehicle.

    2. Remove the bulb sockets and remove the bulbs.

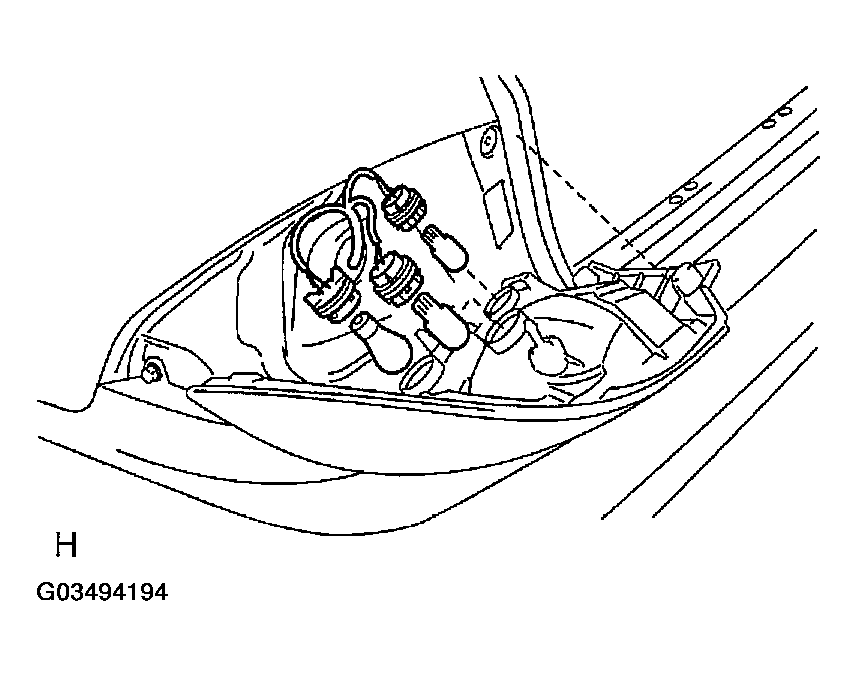

    Fig 7: Removing Bulb Sockets & Bulbs (Sedan)
    G03494194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Wagon:

    REMOVE REAR COMBINATION BULB

    HINT:

    • Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown in Fig 8 .
    • Follow the same procedure for RH as for LH.
    1. Remove a service hole cover.
    2. Remove the bulb sockets and remove the bulbs.

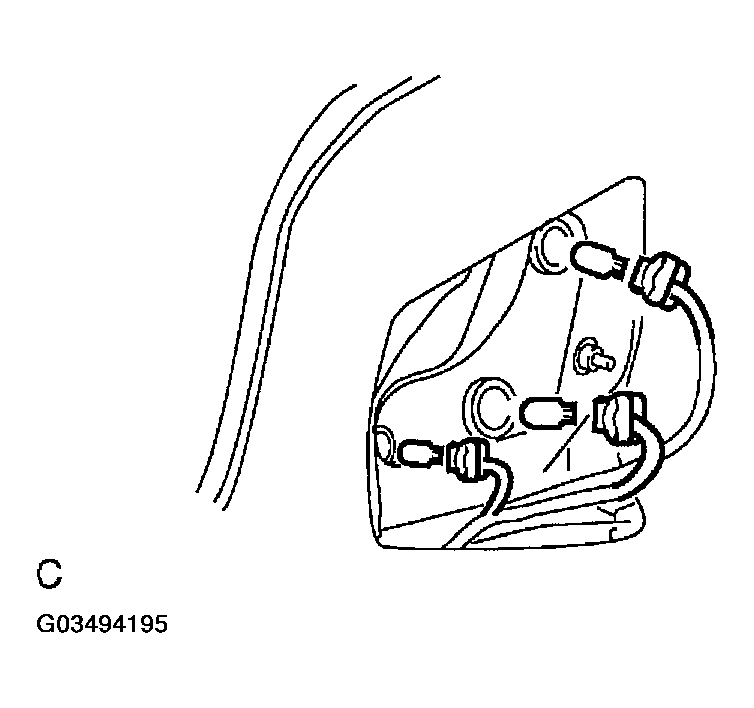

    Fig 8: Removing Bulb Sockets & Bulbs (Wagon)
    G03494195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Sedan:

    REMOVE REAR LAMP ASSEMBLY

    HINT:

    • Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown in Fig 9 .
    • Follow the same procedure for RH as for LH.
    1. Remove a part of luggage compartment door trim.
    2. Remove the nut.
    3. Compress the claw to disconnect the engagement as shown in Fig 9 .

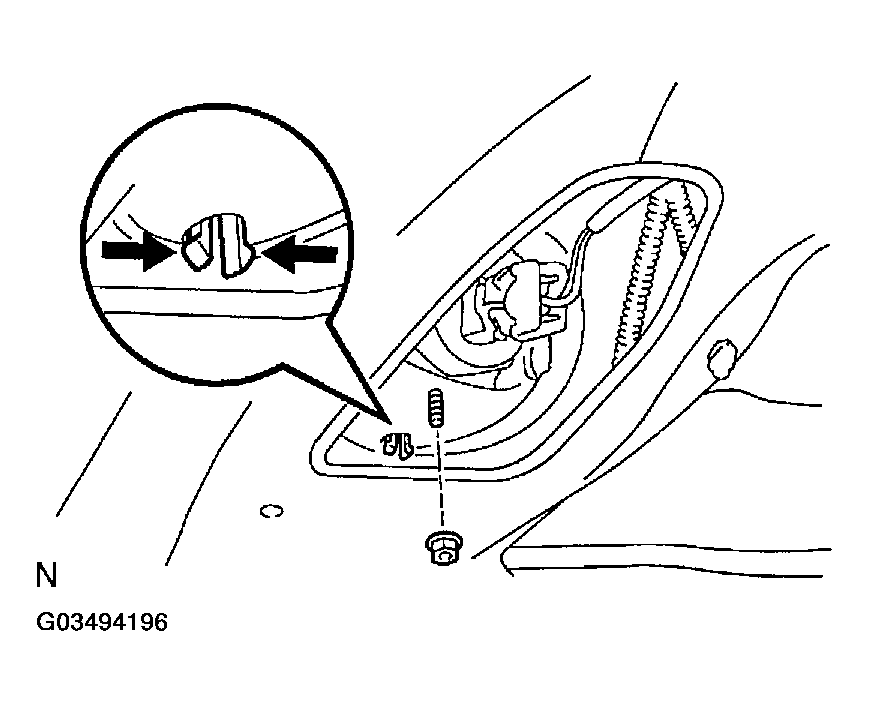

      Fig 9: Compressing Claw To Disconnect Engagement (Sedan)
      G03494196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Separate the connector and remove the rear light assembly.
  7. Wagon:

    REMOVE REAR LAMP ASSEMBLY

    HINT:

    • Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown in Fig 10 .
    • Follow the same procedure for RH as for LH.
    1. Remove the back door trim service hole cover.
    2. Compress the claw to disconnect the engagement as shown in Fig 10 .

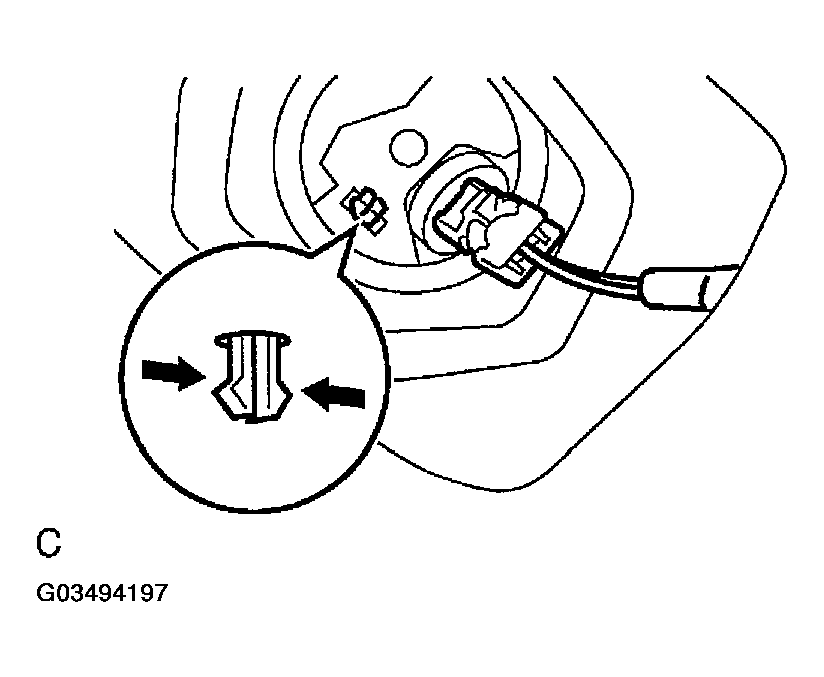

      Fig 10: Compressing Claw To Disconnect Engagement (Wagon)
      G03494197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the connector and remove the rear light assembly.
  8. Sedan:

    REMOVE REAR LAMP BULB

    HINT:

    Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown in Fig 11 .

    1. Remove a part of luggage compartment door trim.
    2. Remove the bulb socket and bulb.

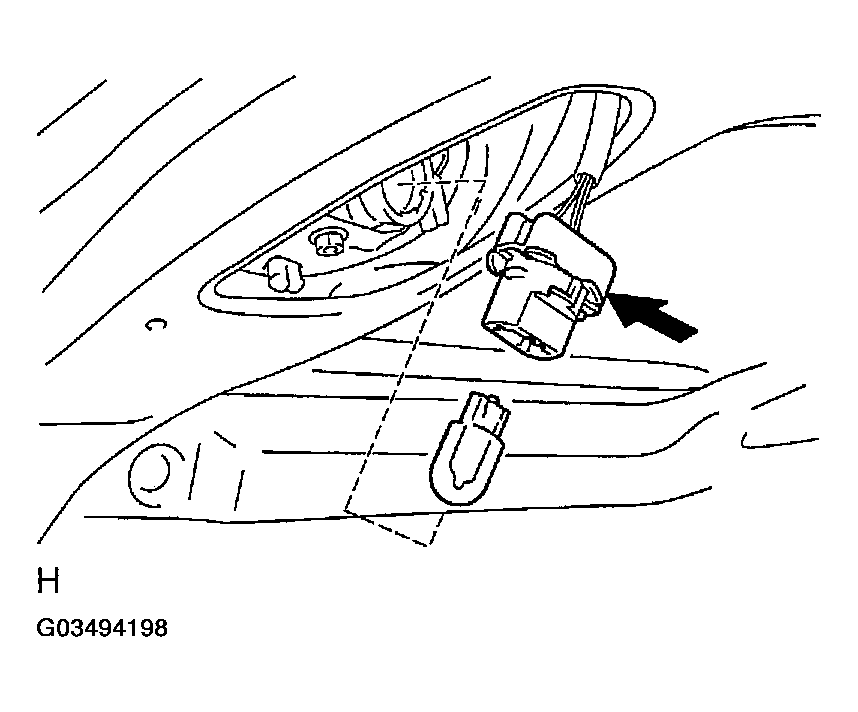

    Fig 11: Removing Bulb Socket & Bulb (Sedan)
    G03494198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Wagon:

    REMOVE REAR LAMP BULB

    HINT:

    Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown in Fig 12 .

    1. Remove the back door trim service hole cover.
    2. Remove the bulb socket and bulb.

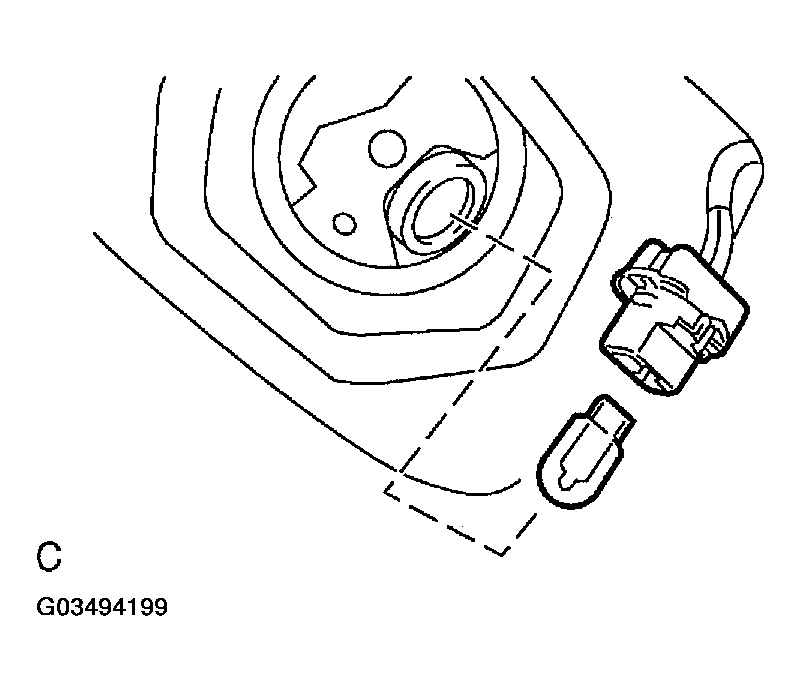

    Fig 12: Removing Bulb Socket & Bulb (Wagon)
    G03494199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
