Section 999 (Headlight & Taillight System): Location

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

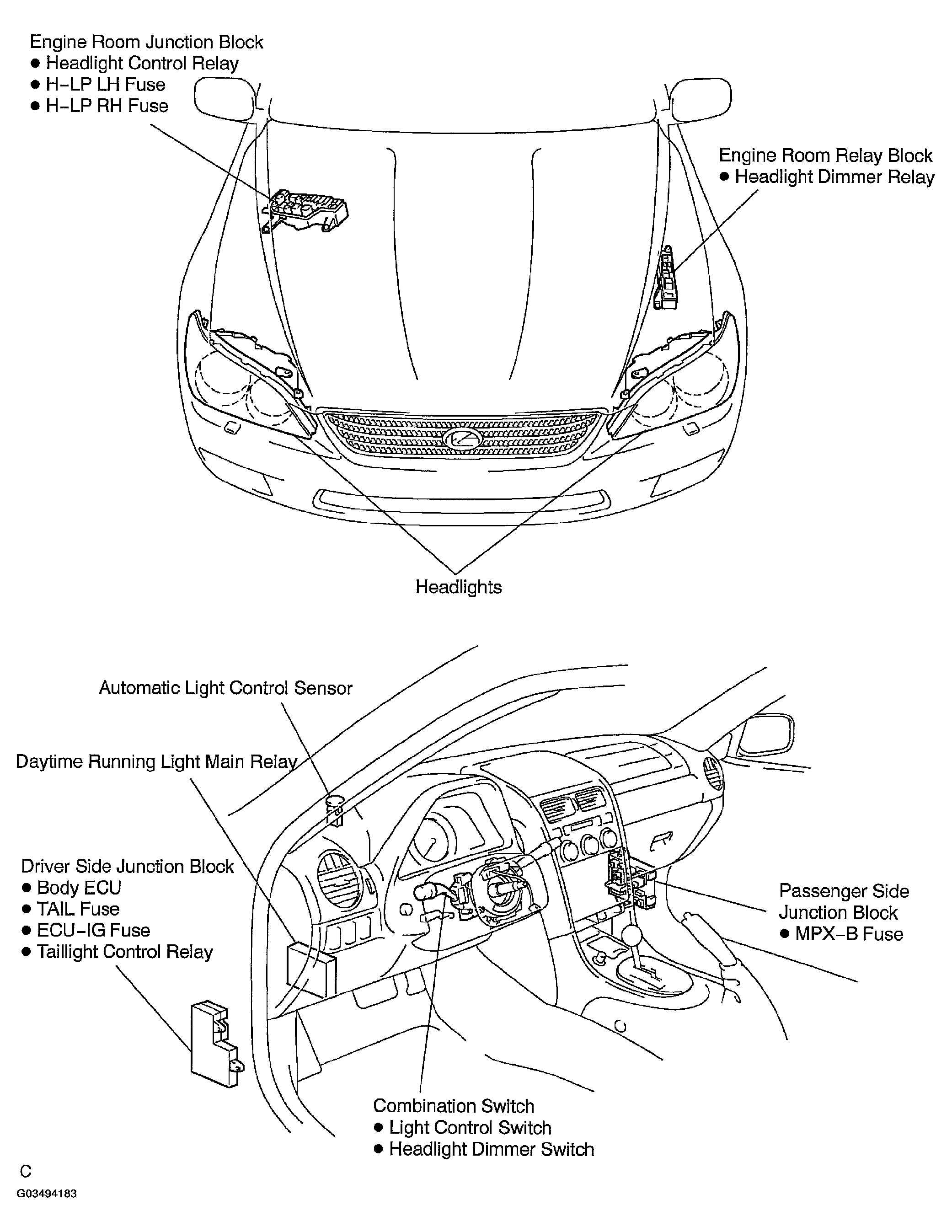

Fig 1: Locating Headlight & Taillight System Components (1 Of 2)
G03494183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

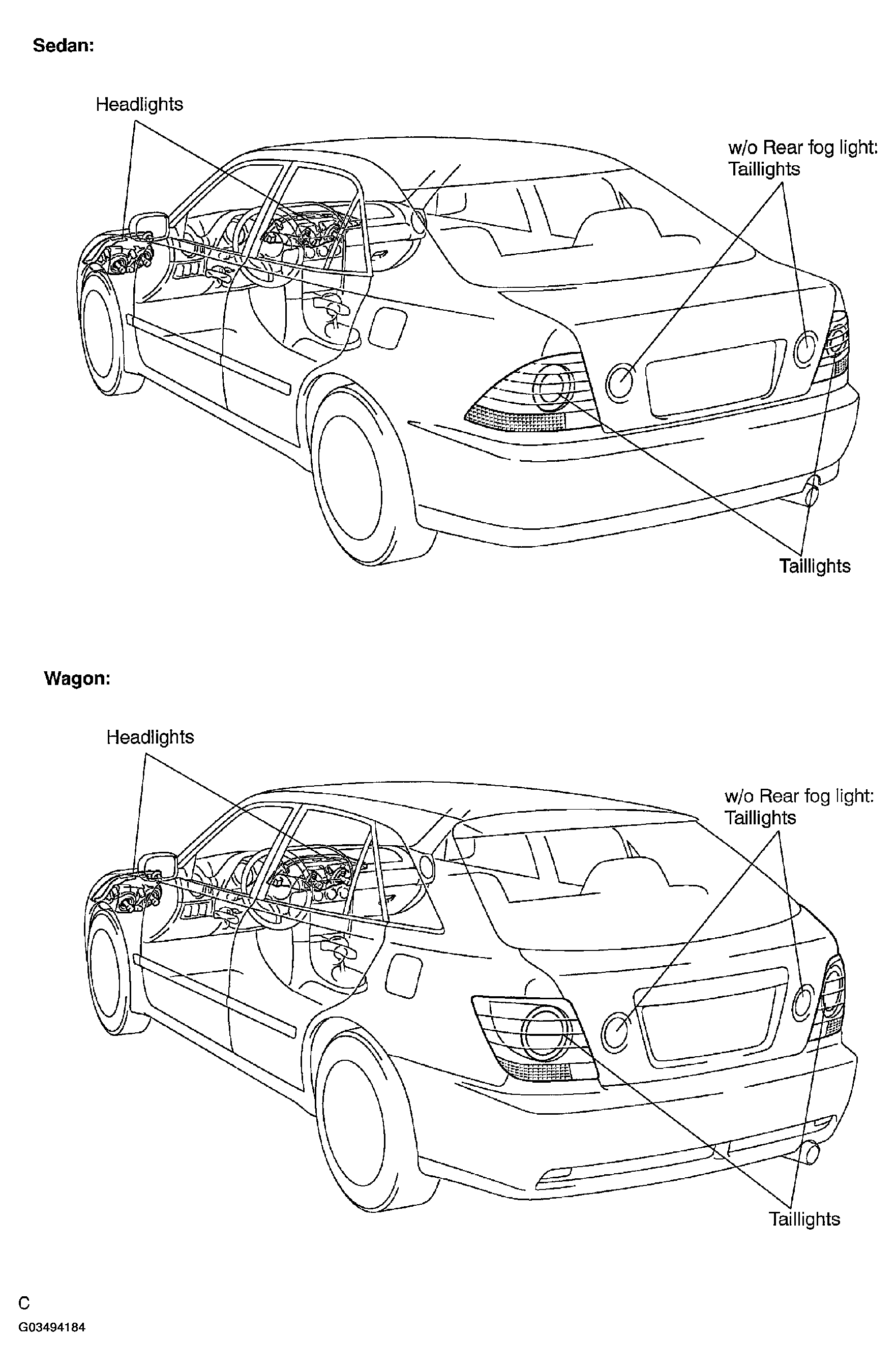

Fig 2: Locating Headlight & Taillight System Components (2 Of 2)
G03494184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
