INDEX
DESCRIPTION
FIGURE
FRONT DOOR
2
LIFTGATE
3
LIFTGATE WINDOW
4
REAR DOOR
5
REAR QUARTER WINDOW
6
WINDSHIELD
7

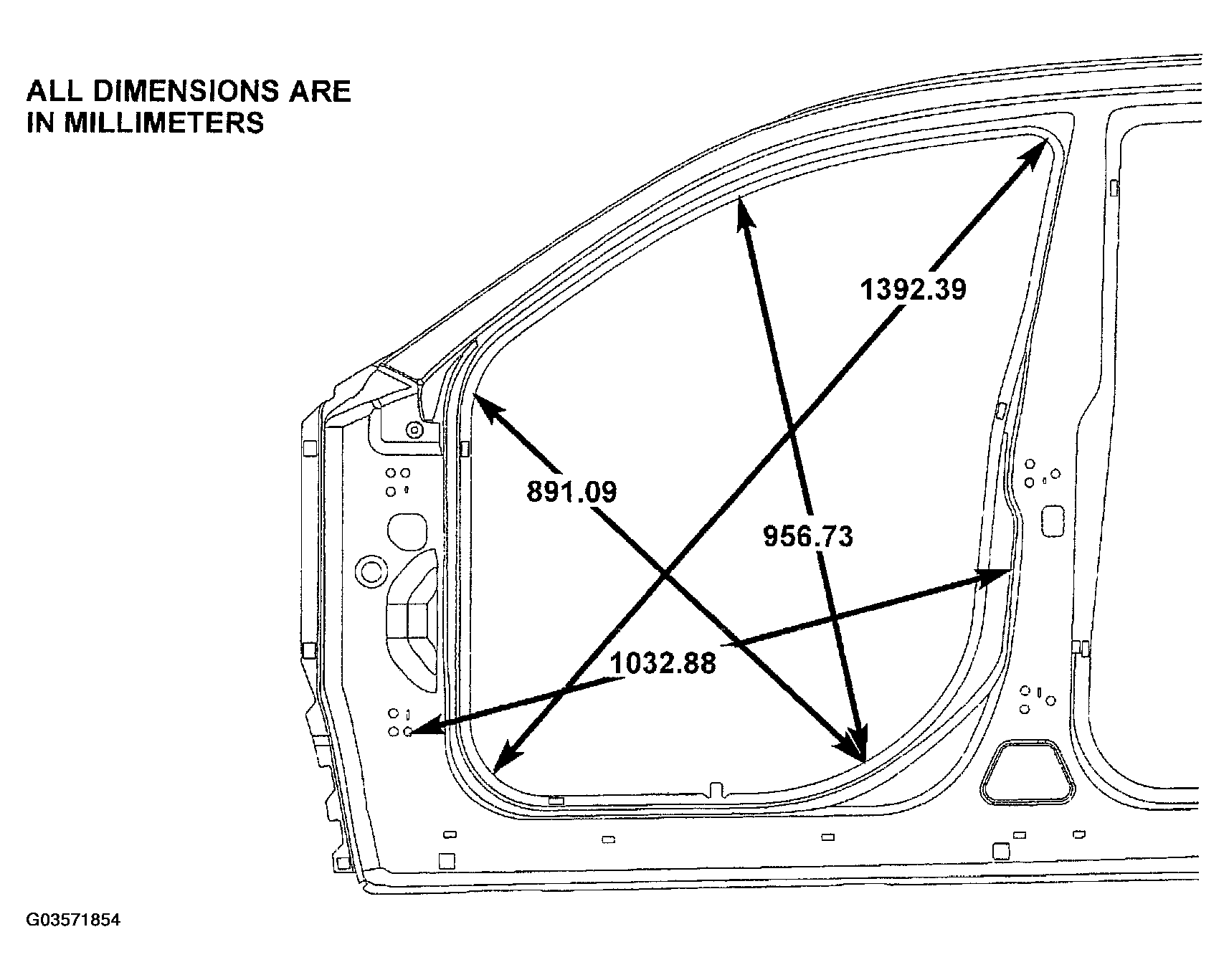

Fig 1: Identifying Dimensions Of Front Door
Courtesy of DAIMLERCHRYSLER CORP.

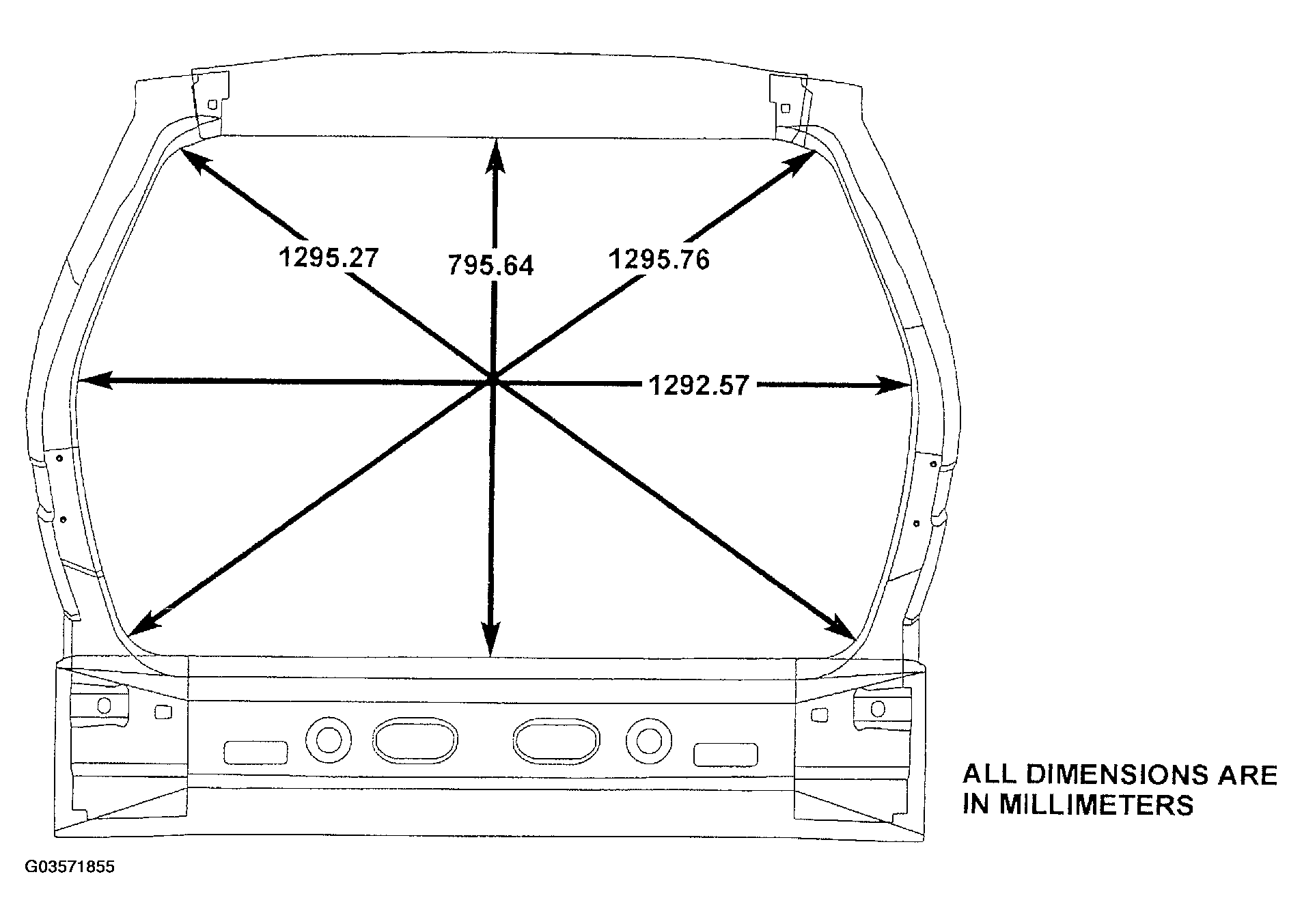

Fig 2: Identifying Dimensions Of Liftgate
Courtesy of DAIMLERCHRYSLER CORP.

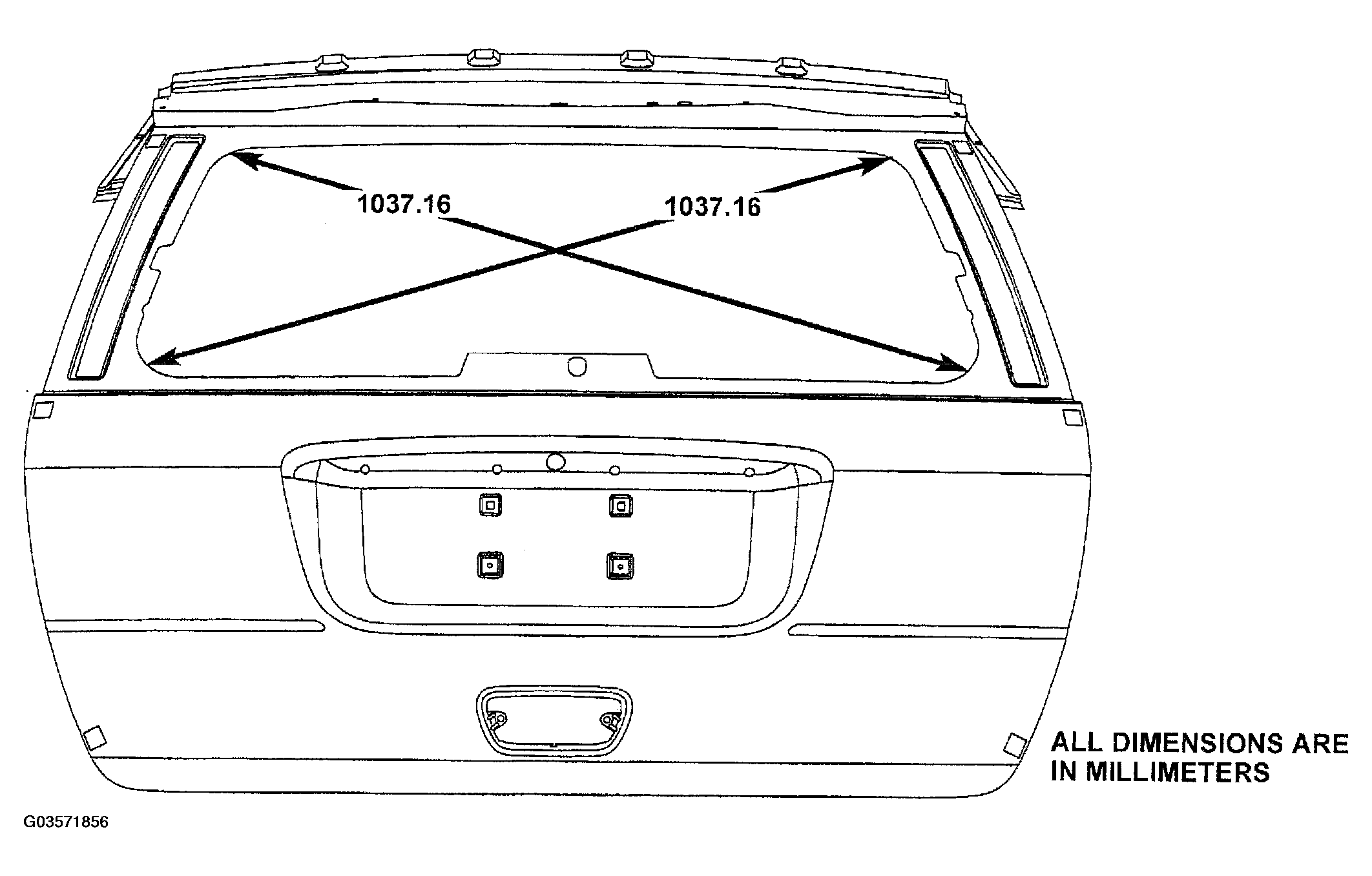

Fig 3: Identifying Dimensions Of Liftgate Window
Courtesy of DAIMLERCHRYSLER CORP.

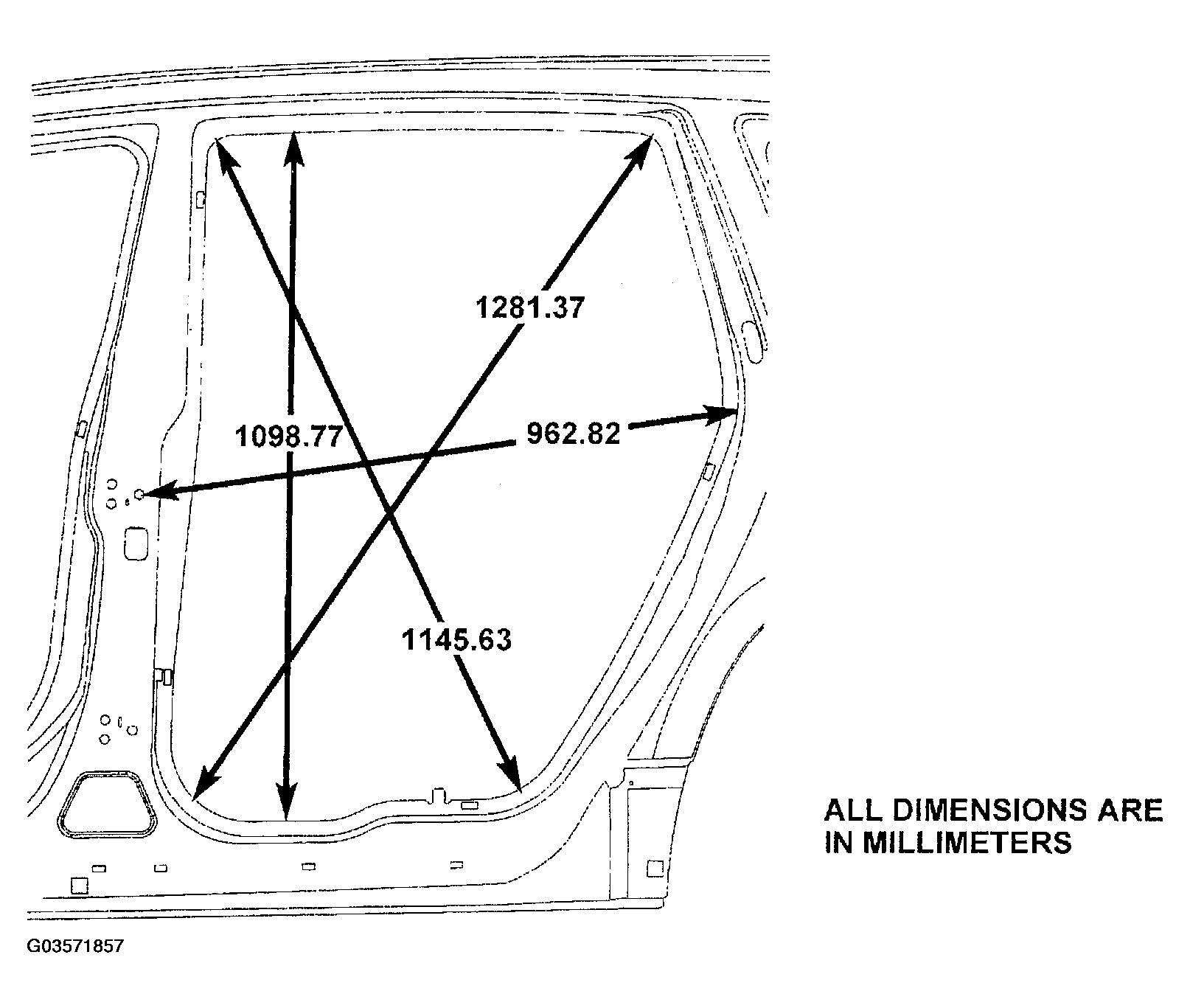

Fig 4: Identifying Dimensions Of Rear Door
Courtesy of DAIMLERCHRYSLER CORP.

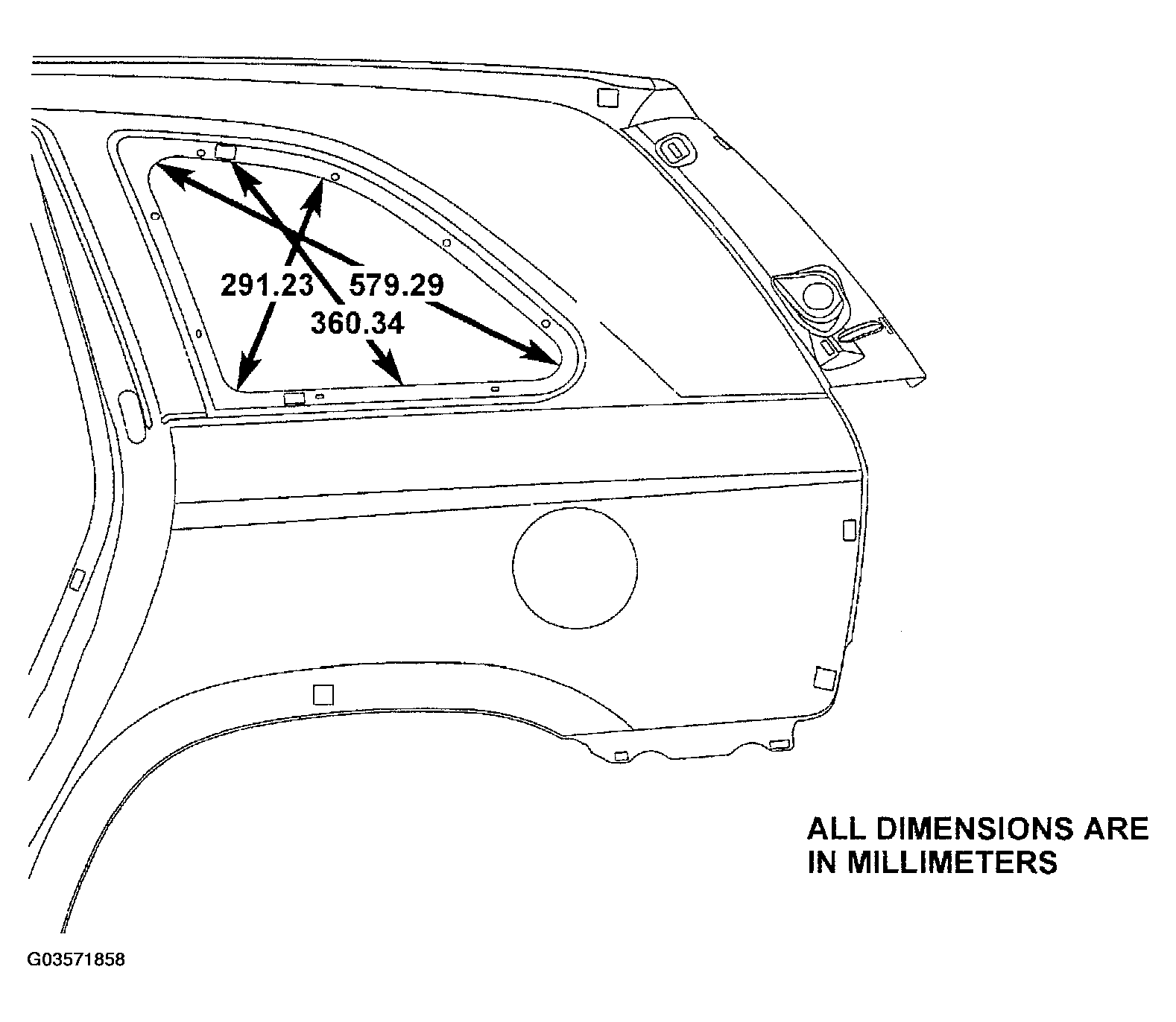

Fig 5: Identifying Dimensions Of Rear Quarter Window
