Home >> Toyota >> 2004 >> Matrix Base, 4WD >> Repair and Diagnosis >> External Pages >> Different car >> Section 928 (Exterior/Interior Trim) >> Front Bumper >> Components

Front Bumper: Components

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

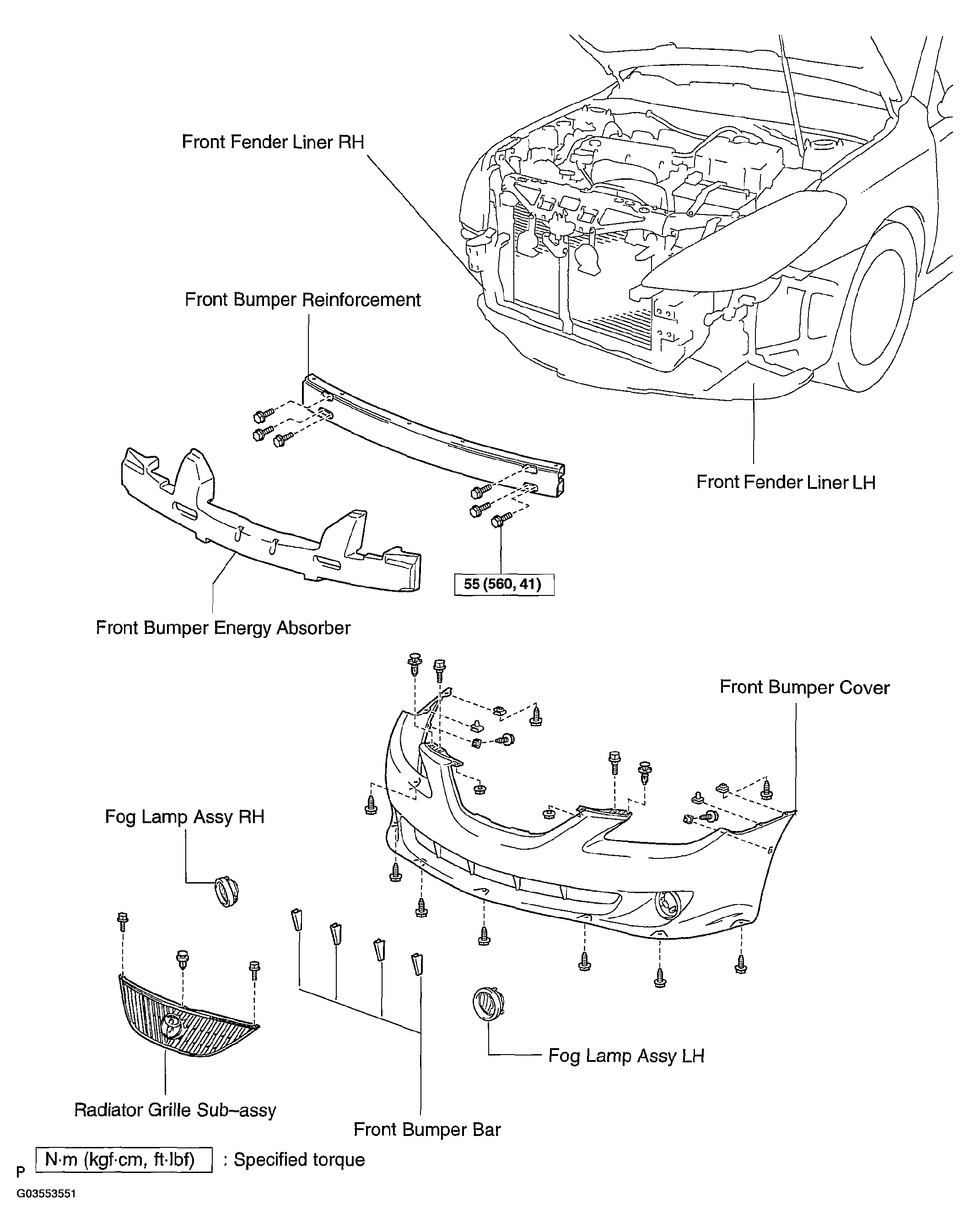

Fig 1: Exploded View Of Front Bumper
G03553551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
