Section 889 (LEXUS Park Assist System): Location

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

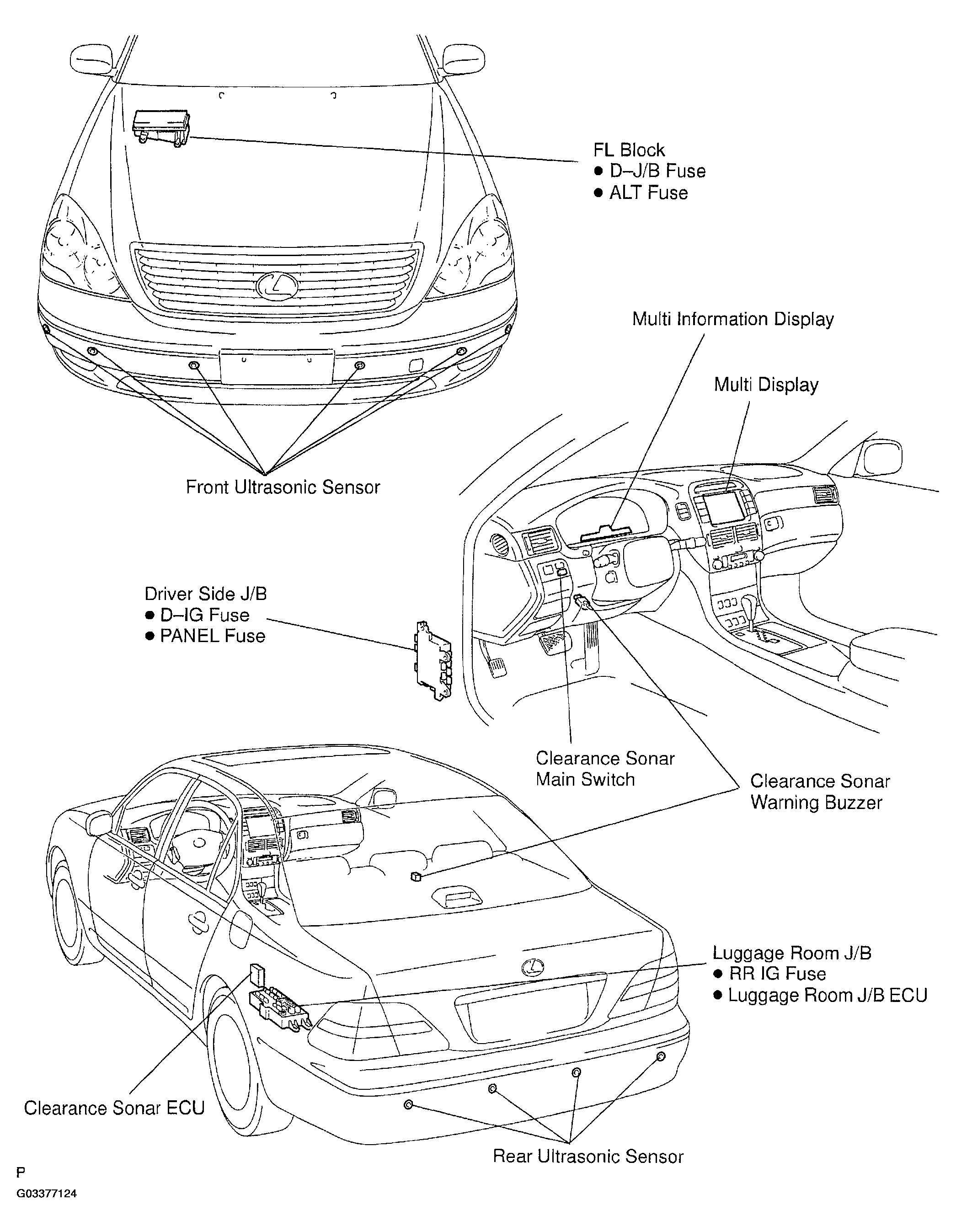

Fig 1: Locating Lexus Park Assist System Components
G03377124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
