On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT REFRIGERANT VOLUME

    Observe the sight glass on the liquid tube.

    Test conditions:

    • Running engine at 1,500 rpm
    • Blower speed control switch at "HI" position
    • A/C switch ON
    • Temperature control dial at "COOL" position
    • Fully open the doors

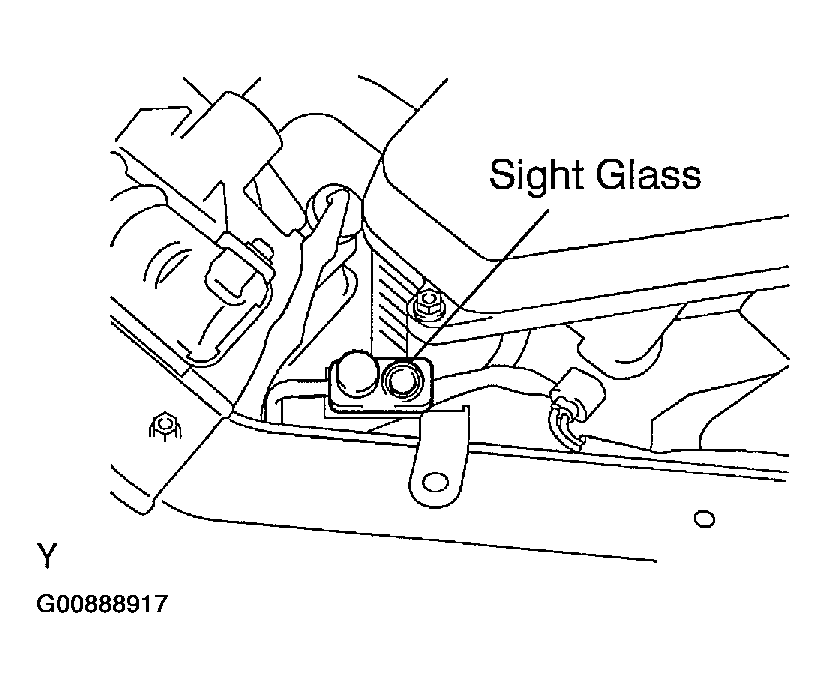

      Fig 1: Identifying Sight Glass On Liquid Tube
      G00888917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

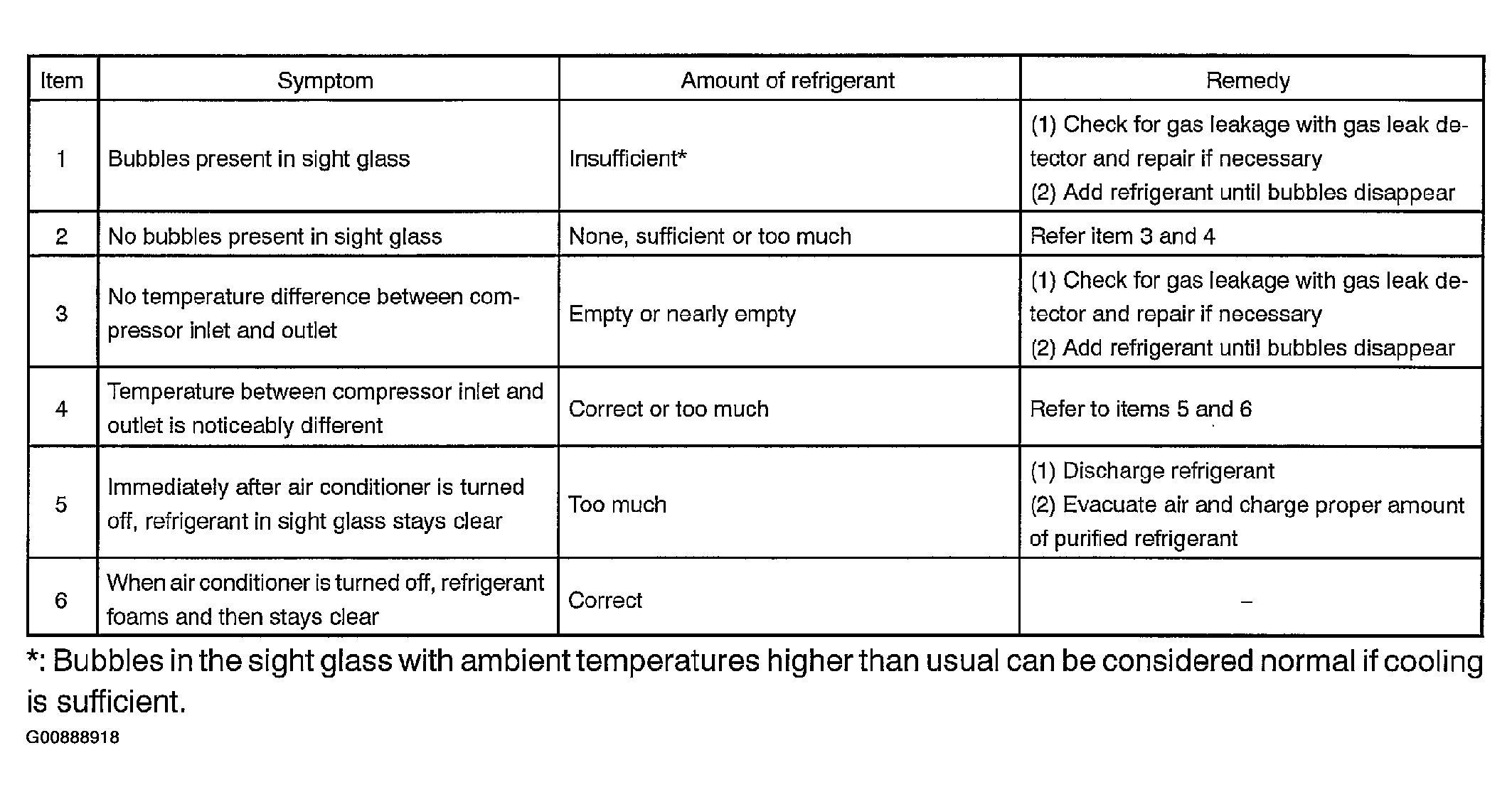

      Fig 2: Refrigerant Volume Inspection Table
      G00888918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT REFRIGERANT PRESSURE WITH MANIFOLD GAUGE SET

    This is a method in which the trouble is located by using a manifold gauge set. Read the manifold gauge pressure when these conditions are established.

    Test conditions:

    • Temperature at the air inlet with the switch set at RECIRC is 30 - 35°C (86 - 95°F)
    • Engine running at 2,000 rpm
    • Blower speed control switch at "HI" position
    • Temperature control dial on "COOL" position

    HINT:

    It should be noted that the gauge indications may vary slightly due to ambient temperature conditions.

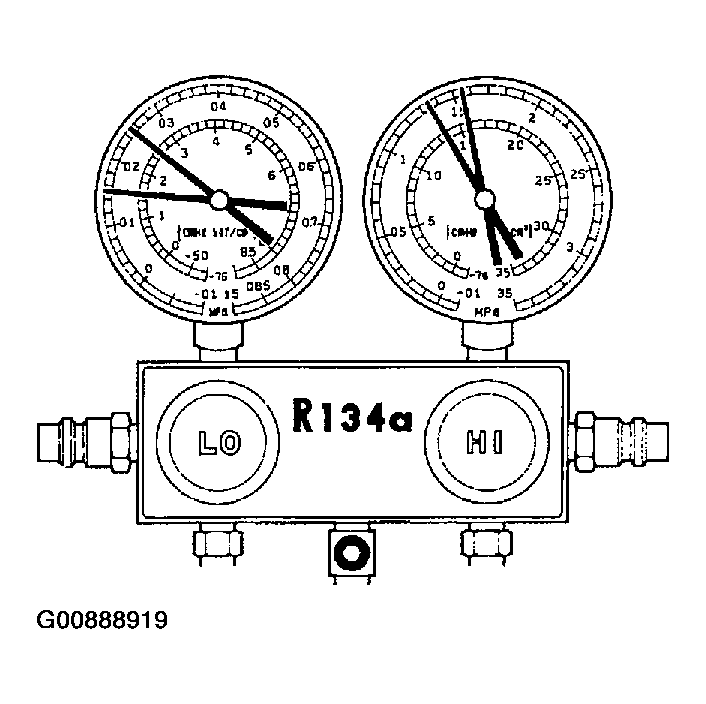

    Fig 3: Inspecting Refrigerant Pressure With Manifold Gauge Set (Normally Functioning Refrigeration System)
    G00888919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Normally functioning refrigeration system.

      Gauge reading:

      1. Low pressure side: 0.15 - 0.25 MPa (1.5 - 2.5 kgf/cm 2)
      2. High pressure side: 1.37 - 1.57 MPa (14 - 15 kgf/cm 2)
    2. Moisture present in refrigeration system.

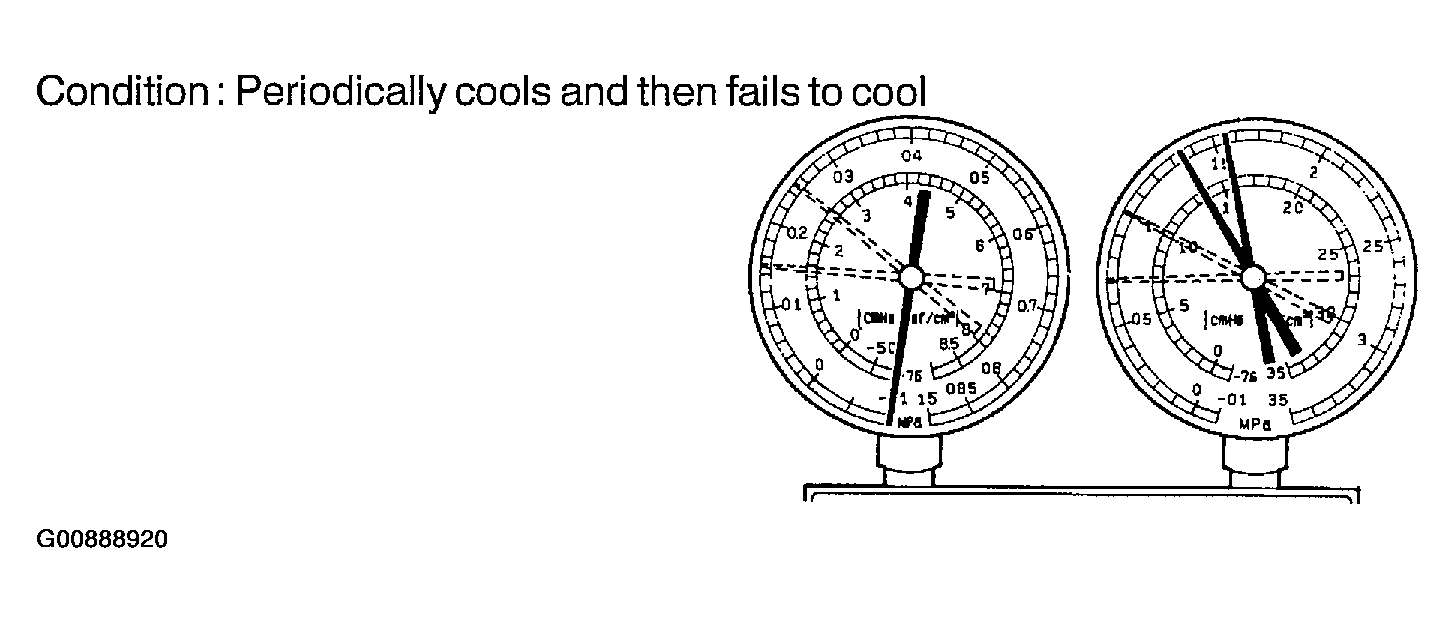

      Fig 4: Inspecting Refrigerant Pressure With Manifold Gauge Set For Symptom A/C System Periodically Cools & Then Fails To Cool
      G00888920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

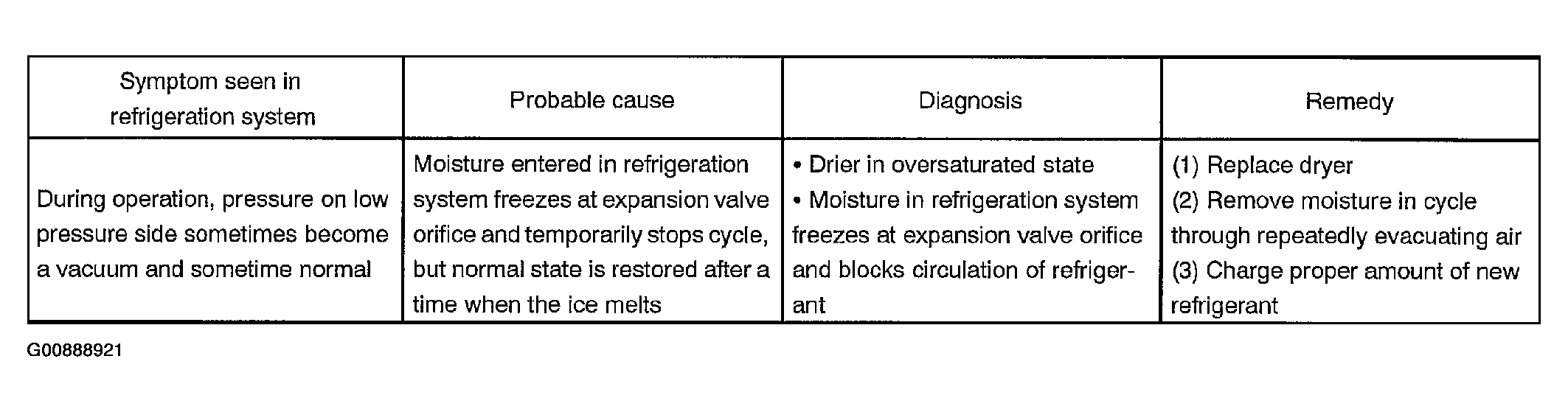

      Fig 5: Symptom Table - A/C System Periodically Cools & Then Fails To Cool
      G00888921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Insufficient cooling

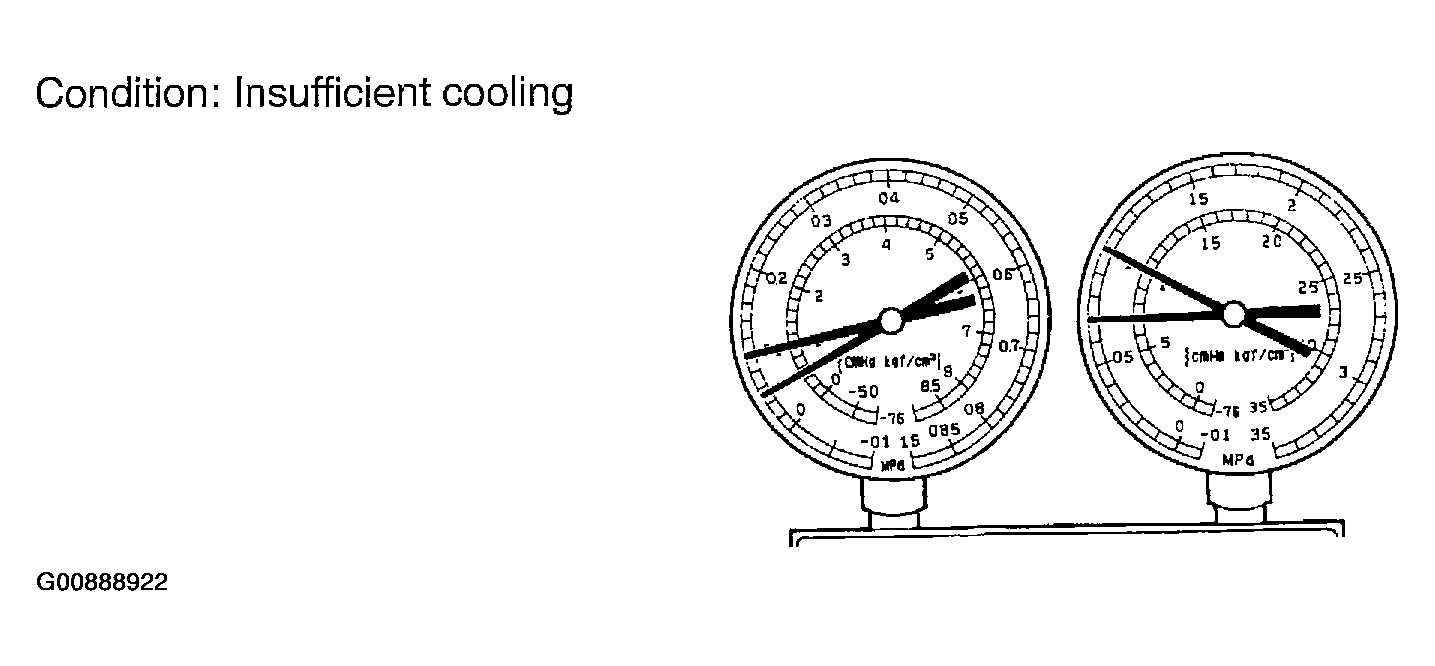

      Fig 6: Inspecting Refrigerant Pressure With Manifold Gauge Set For Insufficient Cooling
      G00888922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

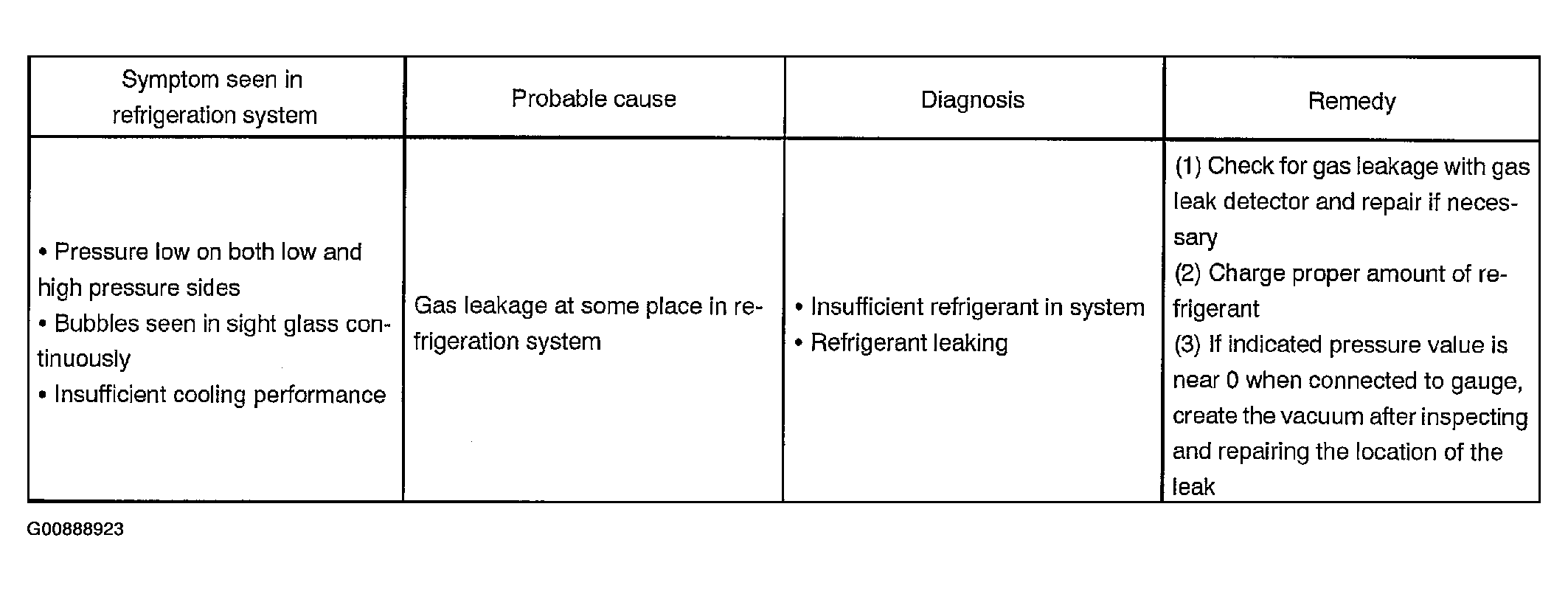

      Fig 7: Symptom Table - Insufficient Cooling
      G00888923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Poor circulation of refrigerant

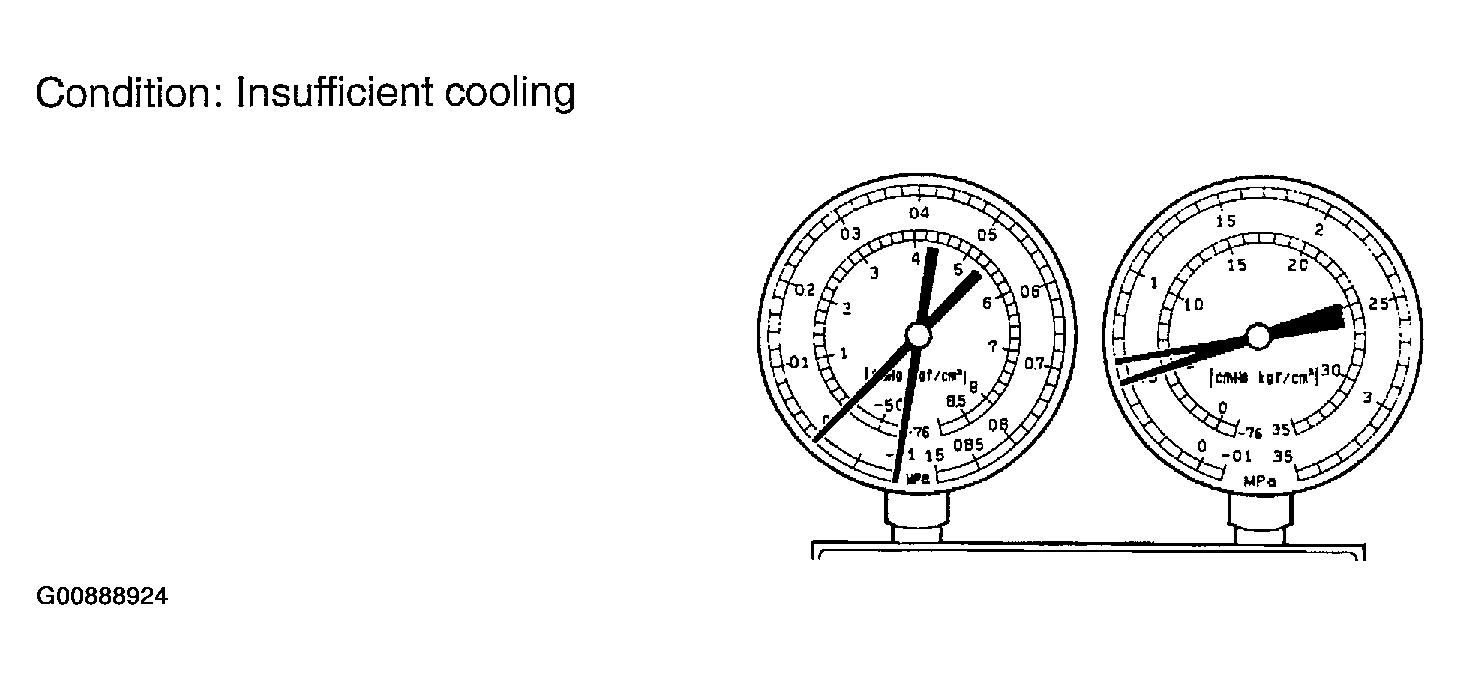

      Fig 8: Inspecting Refrigerant Pressure With Manifold Gauge Set For Poor Circulation Of Refrigerant
      G00888924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

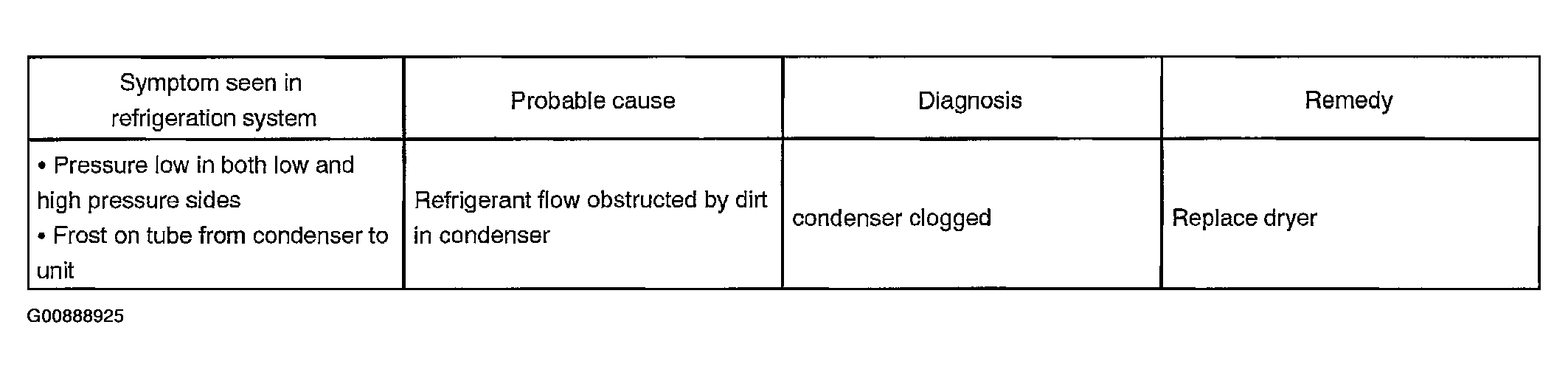

      Fig 9: Symptom Table - Poor Circulation Of Refrigerant
      G00888925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Refrigerant does not circulate

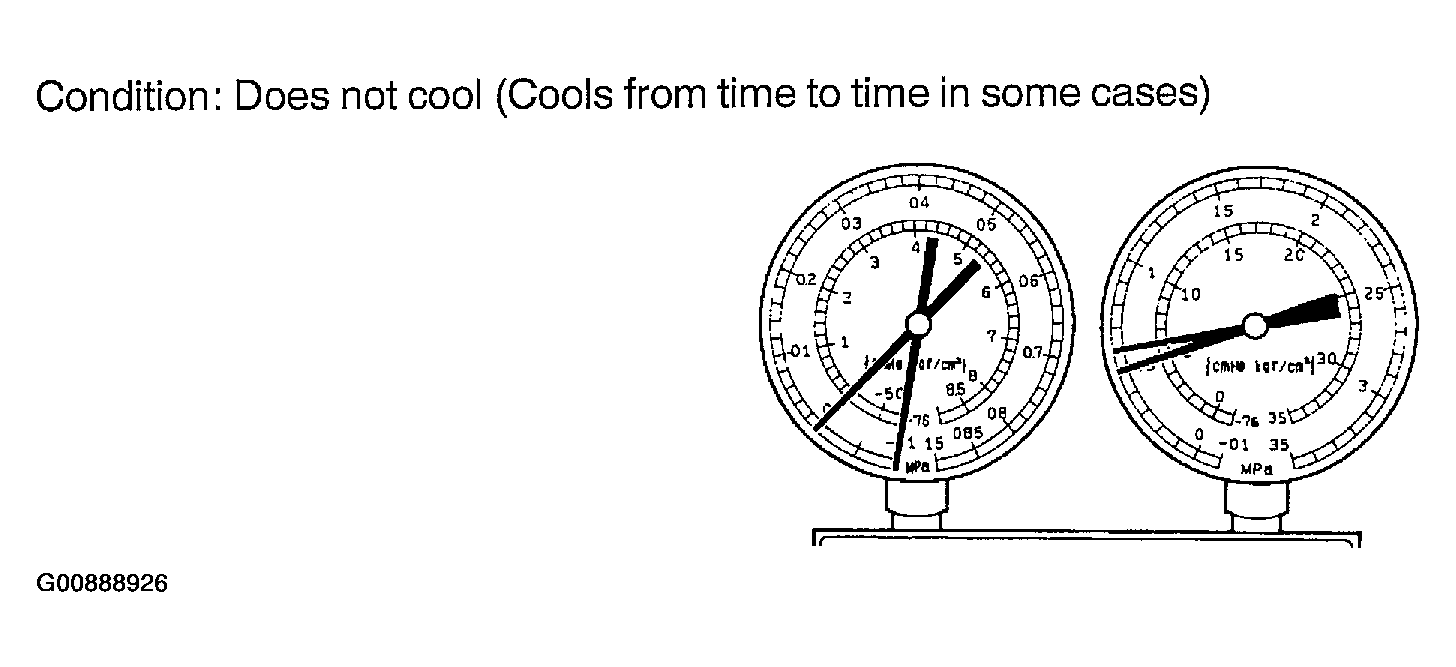

      Fig 10: Inspecting Refrigerant Pressure With Manifold Gauge Set - Refrigerant Does Not Circulate
      G00888926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

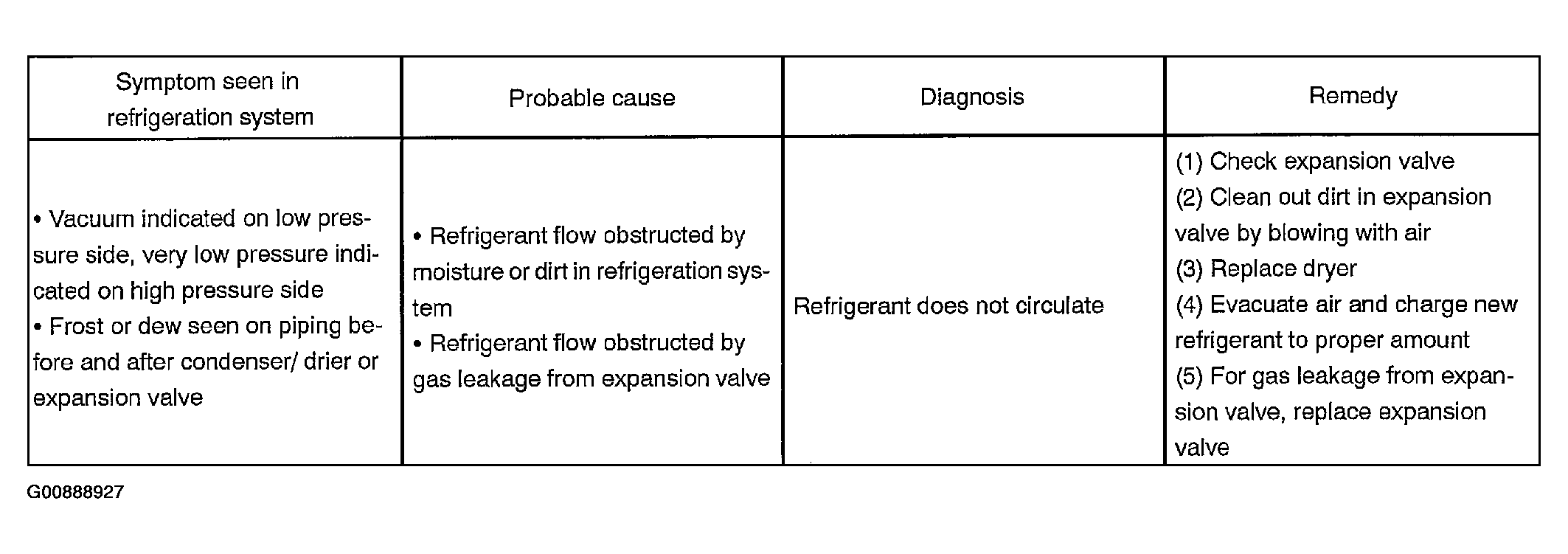

      Fig 11: Symptom Table - Refrigerant Does Not Circulate
      G00888927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Refrigerant overcharged or insufficient cooling of condenser

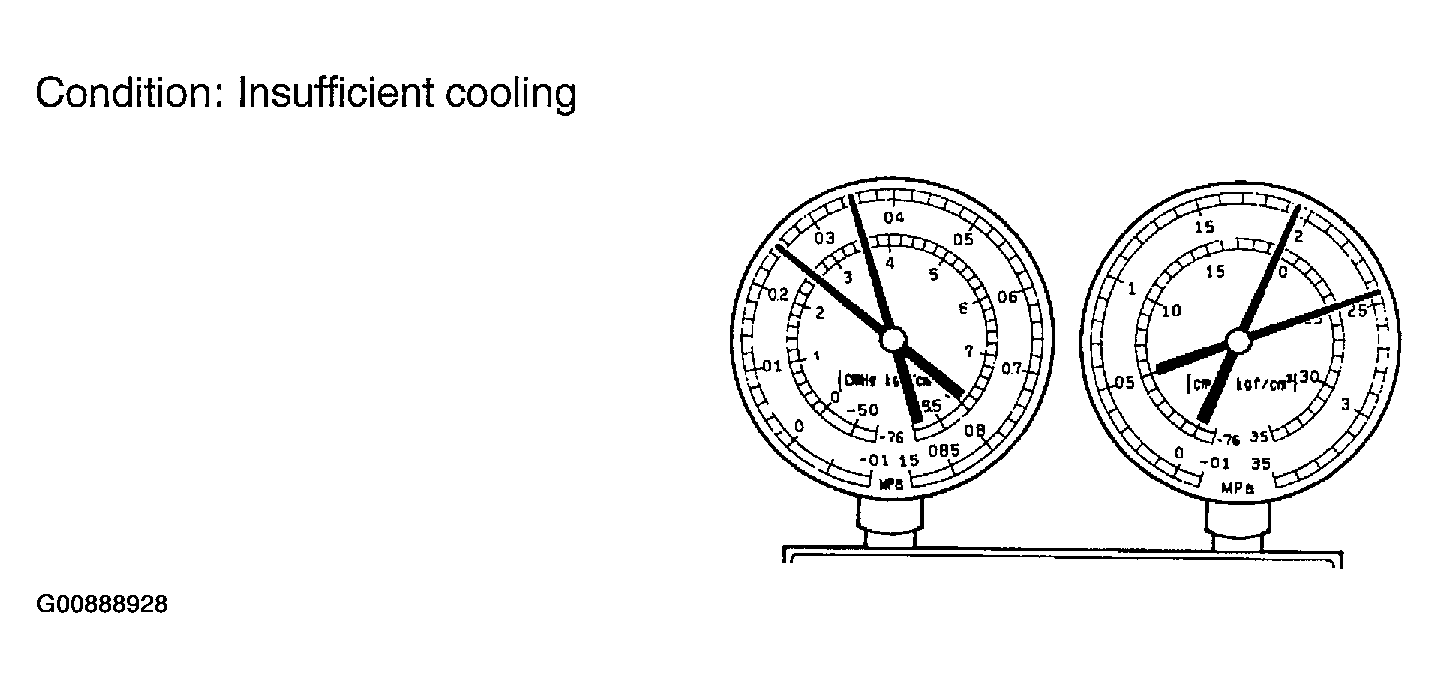

      Fig 12: Inspecting Refrigerant Pressure With Manifold Gauge Set - Refrigerant Overcharged Or Insufficient Cooling Of Condenser
      G00888928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

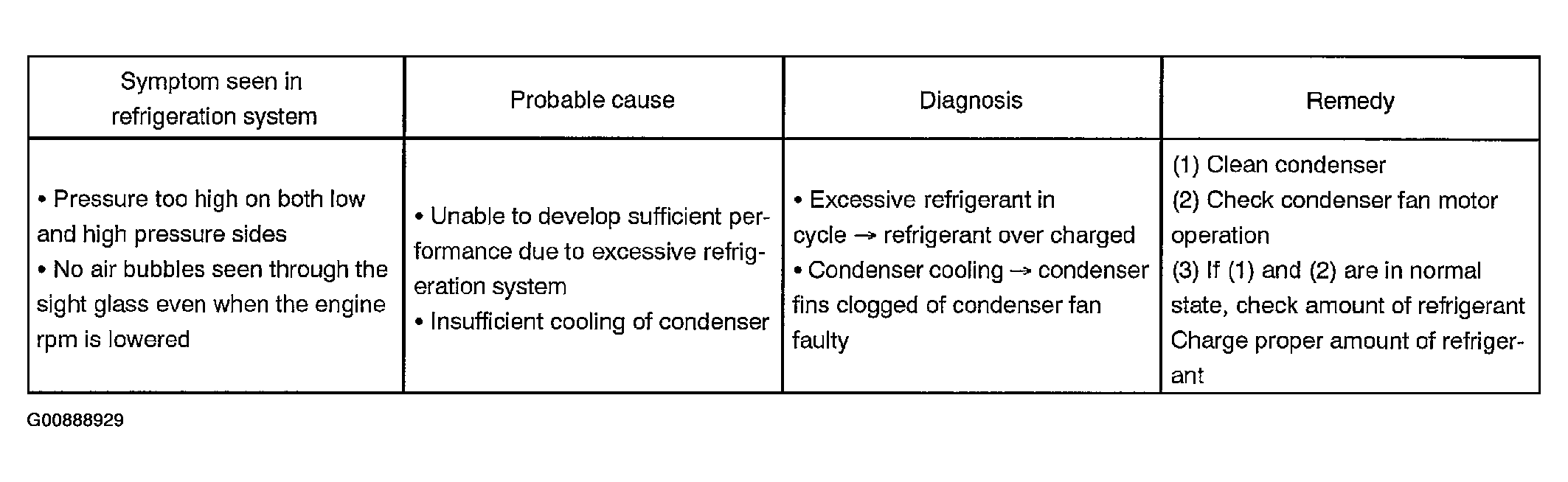

      Fig 13: Symptom Table - Refrigerant Overcharged Or Insufficient Cooling Of Condenser
      G00888929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Air present in refrigeration system

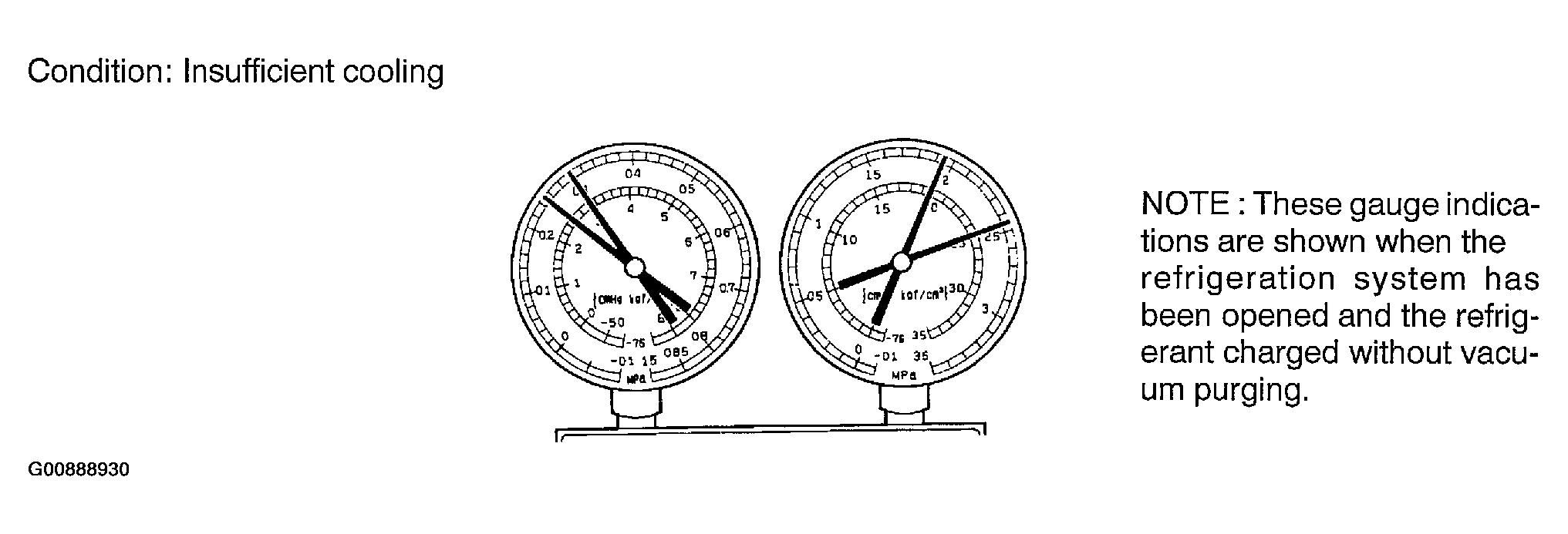

      Fig 14: Inspecting Refrigerant Pressure With Manifold Gauge Set - Air Present In Refrigeration System
      G00888930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

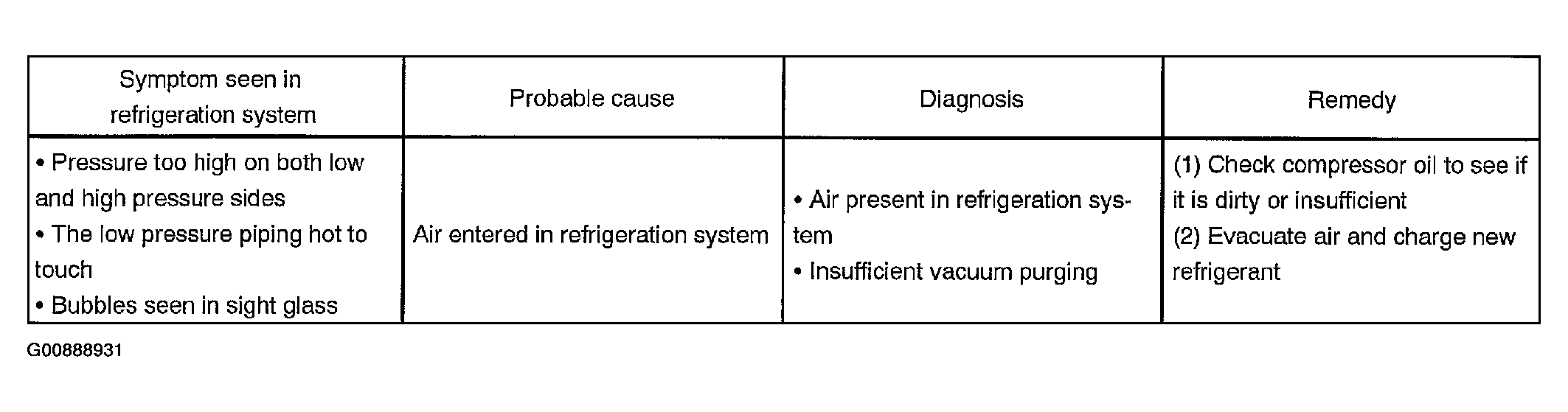

      Fig 15: Symptom Table - Air Present In Refrigeration System
      G00888931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Expansion valve improperly

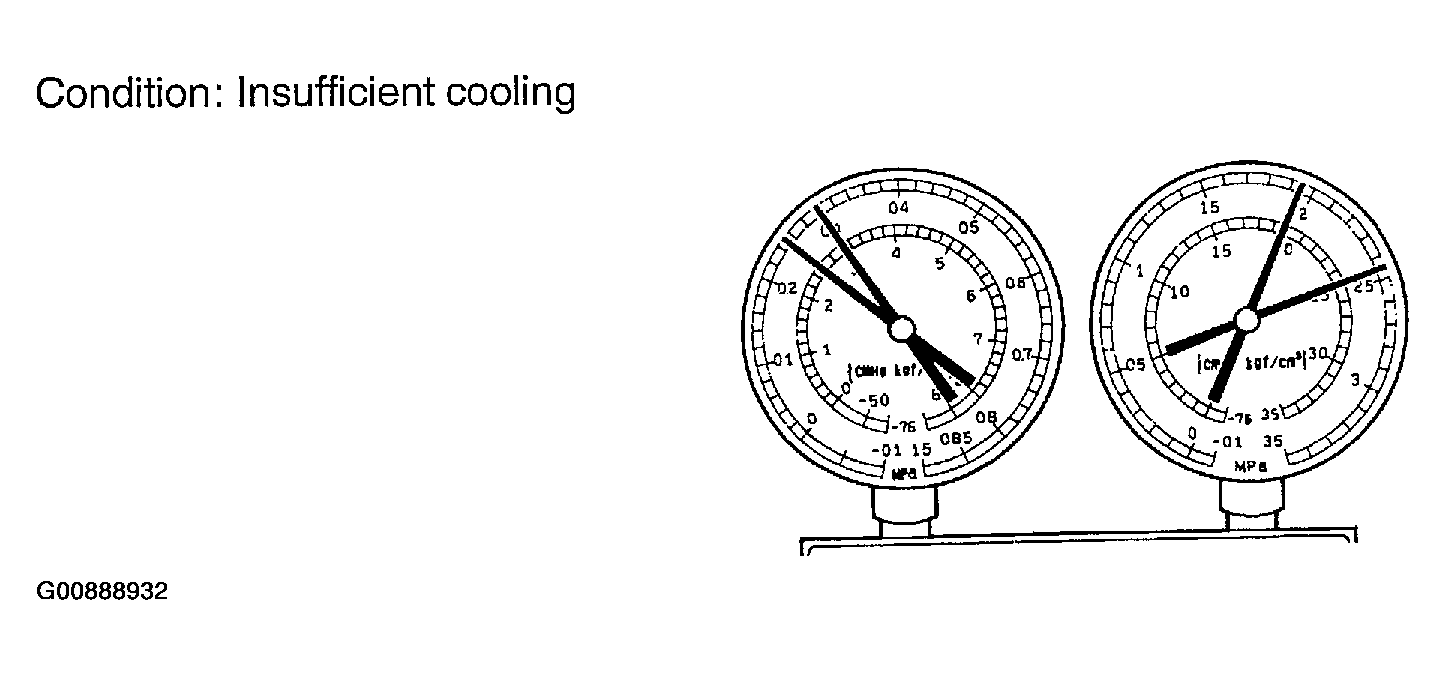

      Fig 16: Inspecting Refrigerant Pressure With Manifold Gauge Set - Expansion Valve Improperly (Insufficient Cooling)
      G00888932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

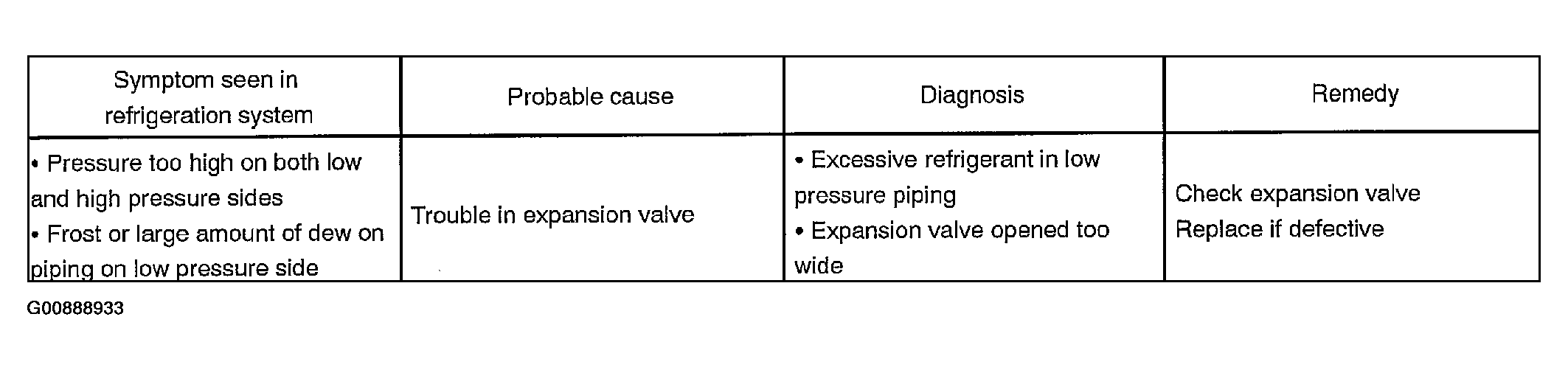

      Fig 17: Symptom Table - Expansion Valve Improperly (Insufficient Cooling)
      G00888933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Defective compression compressor

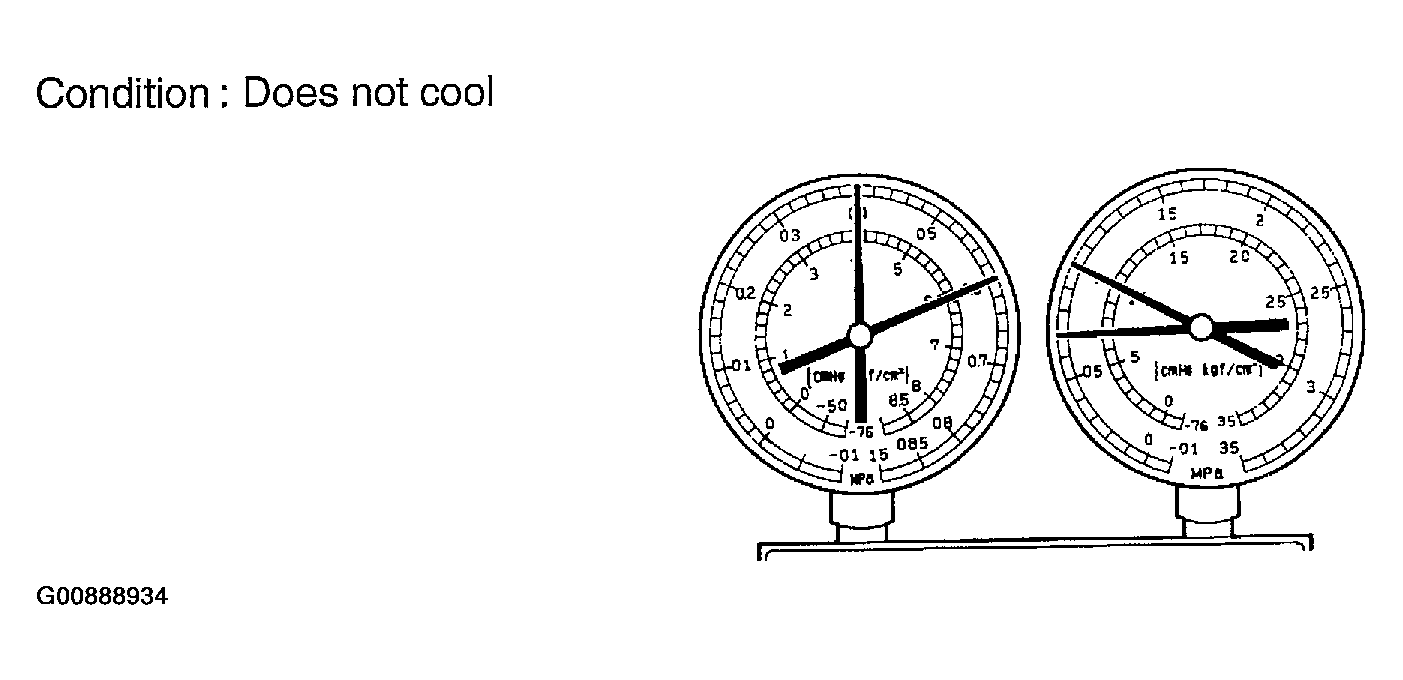

      Fig 18: Inspecting Refrigerant Pressure With Manifold Gauge Set - Defective Compression Compressor
      G00888934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

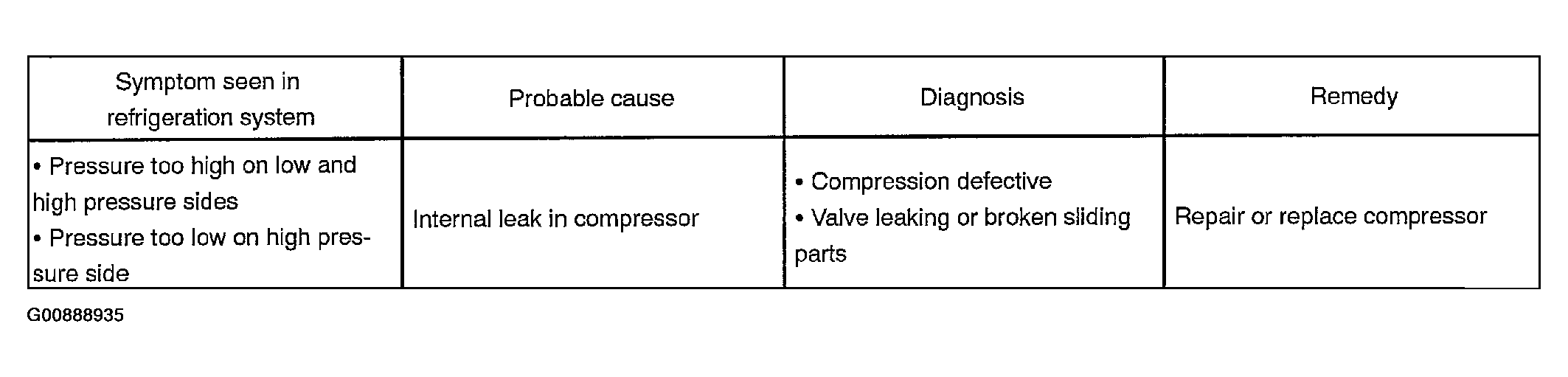

      Fig 19: Symptom Table - Defective Compression Compressor
      G00888935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT IDLE-UP SPEED
    1. Warm up engine.
    2. Inspect idle-up speed when the these conditions are established.

      Test conditions:

      • Blower speed control switch at "HI" position
      • Temperature control dial at "COOL" position
      • A/C switch ON
      • Put gear shift in neutral

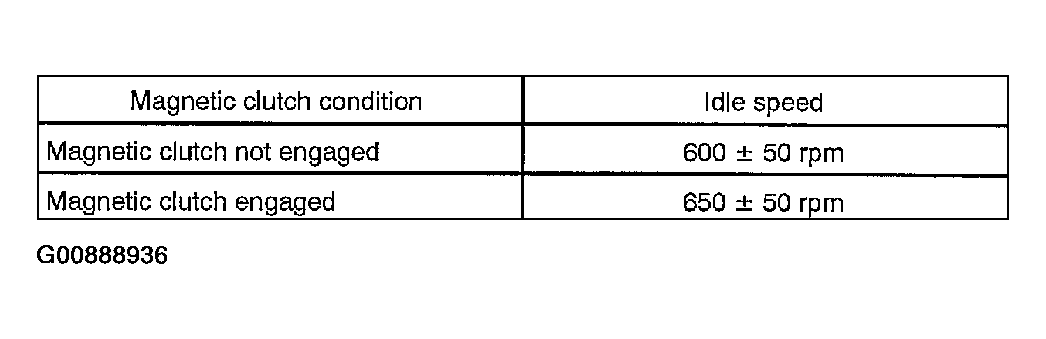

        Fig 20: Magnetic Clutch Condition & Idle Speed Table
        G00888936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If idle speed is not as specified, check the idle control system.

  4. INSPECT FOR LEAKAGE OF REFRIGERANT
    1. Perform in these conditions.
      • Stop engine
      • Secure good ventilation (If the gas leak detector may not react volatile gases which are not refrigerant, such as evaporated gasoline and exhaust gas)
      • Repeat the test 2 or 3 times
      • Make sure that there is some refrigerant remaining in the refrigeration system.

        When compressor is OFF: approx. 392 - 588 kPa (4 - 6 kgf.cm 2 , 57 - 85 psi)

    2. Bring the gas leak detector close to the drain hose before performing the test.

      HINT:

      • After the blower motor has stopped, leave the cooling for more than 15 minutes.
      • Expose the gas leak detector sensor under the drain hose.
      • When bring the gas leak detector close to the drain hose, make sure that the gas leak detector does not react to the volatile gases.

      If such reaction is unavoidable, the vehicle must be lifted up.

    3. If gas leak is not detected on the drain hose, remove the blower resistor from the cooling unit. Then insert the gas leak detector sensor into the unit and perform the test.
    4. Disconnect the connector and leave the pressure switch for approx. 20 minutes. Then bring the gas leak detector close to the pressure switch and perform the test.
    5. Bring the gas leak detector close to the refrigerant lines.
