Reassemble Propeller Shaft

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the propeller shaft, align the matchmarks on the universal joint flange and propeller shaft flange, and connect the flanges with the 4 bolts, washers and nuts.
Torque the 4 nuts.
1. Torque: 74 N.m (750 kgf.cm, 54 ft.lbf)

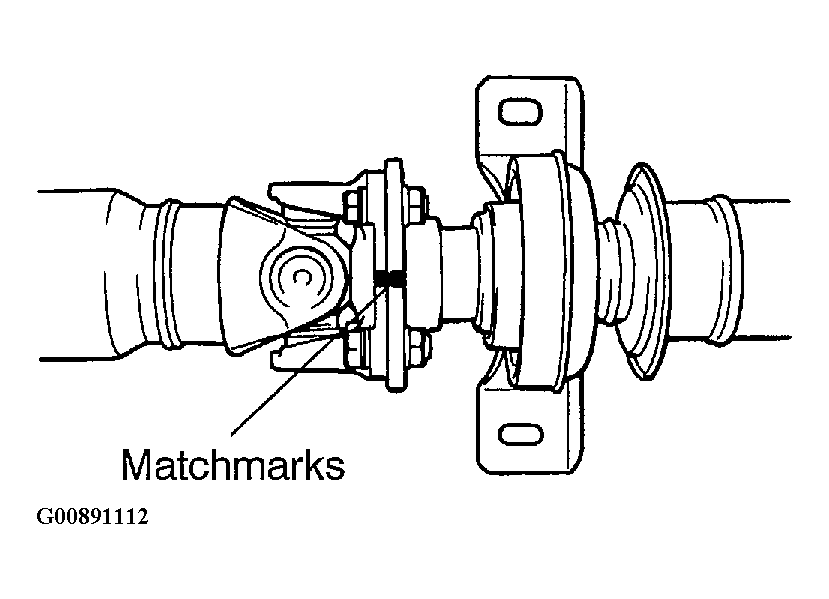

Fig 1: Assembling Propeller Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Assemble the propeller shaft so that each joint faces in the direction as shown in Fig 2 .

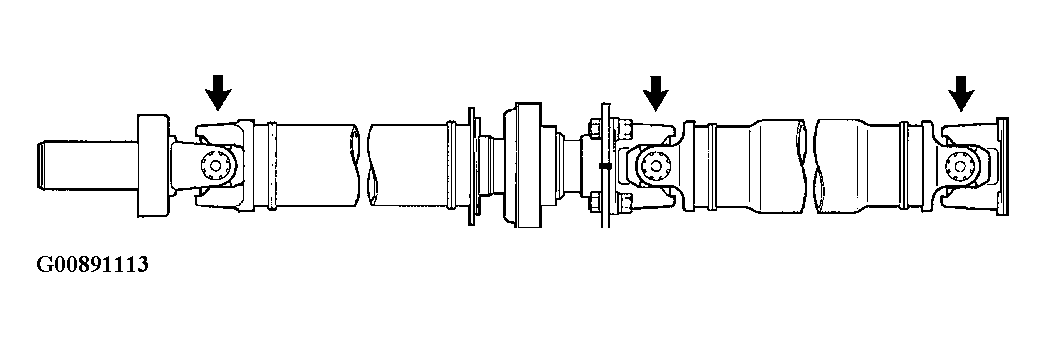

Fig 2: Identifying Direction Of Propeller Shaft Joint Facing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
