Disassemble Propeller Shaft

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place matchmarks on the universal joint flange and propeller shaft flange.
  2. Remove the 4 bolts, washers and nuts.
  3. Separate the intermediate shaft and propeller shaft.

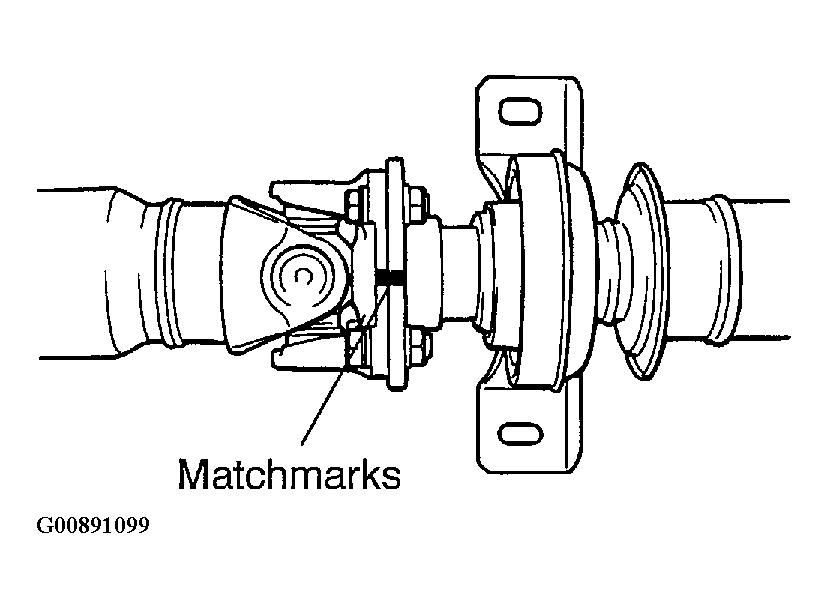

    Fig 1: Identifying Matchmark On Universal Joint Flange & Propeller Shaft Flange
    G00891099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
