Clutch Release Cylinder: Components

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

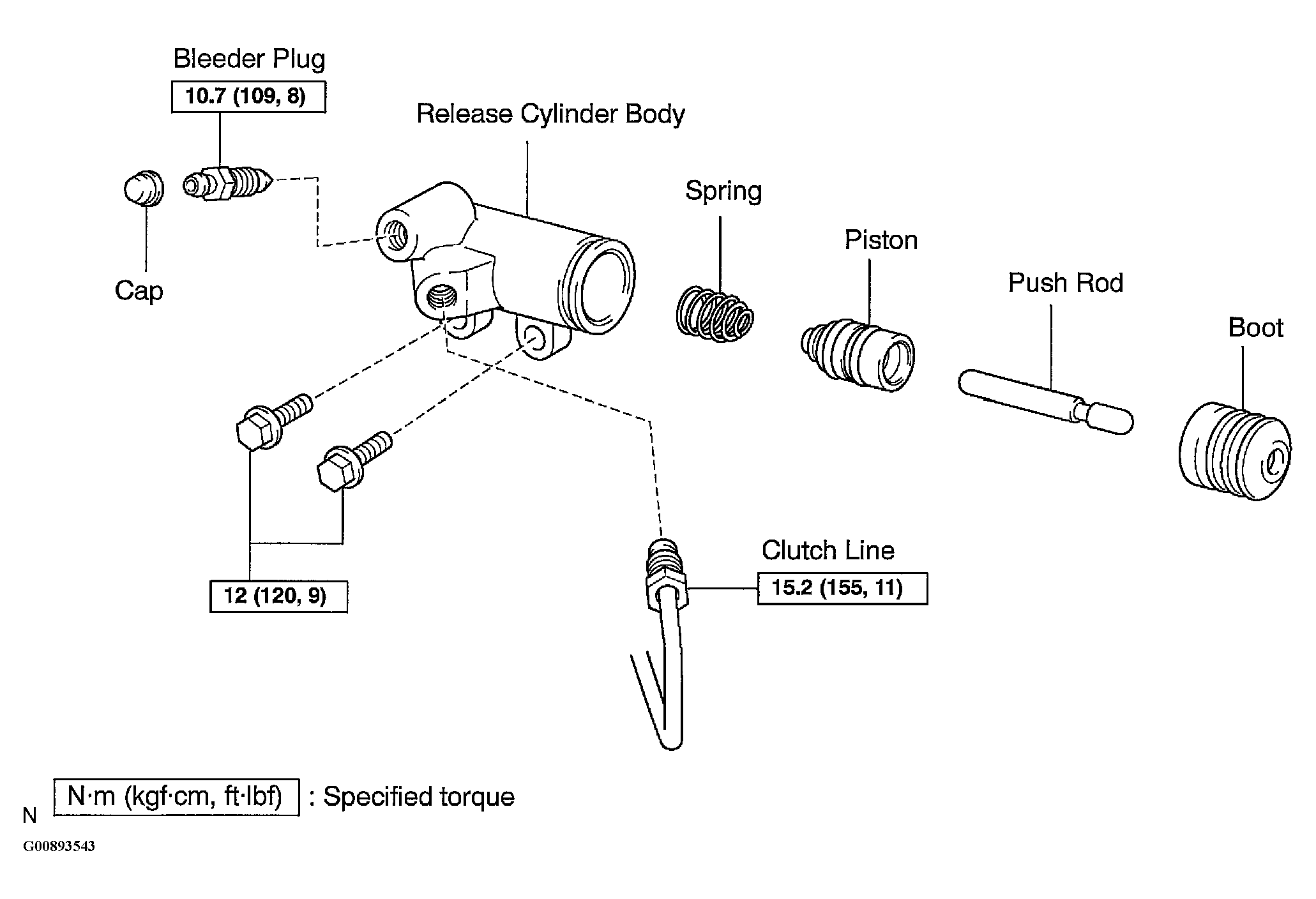

Fig 1: Identifying Clutch Release Cylinder Components
G00893543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
