How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Perform troubleshooting in accordance with the procedure.

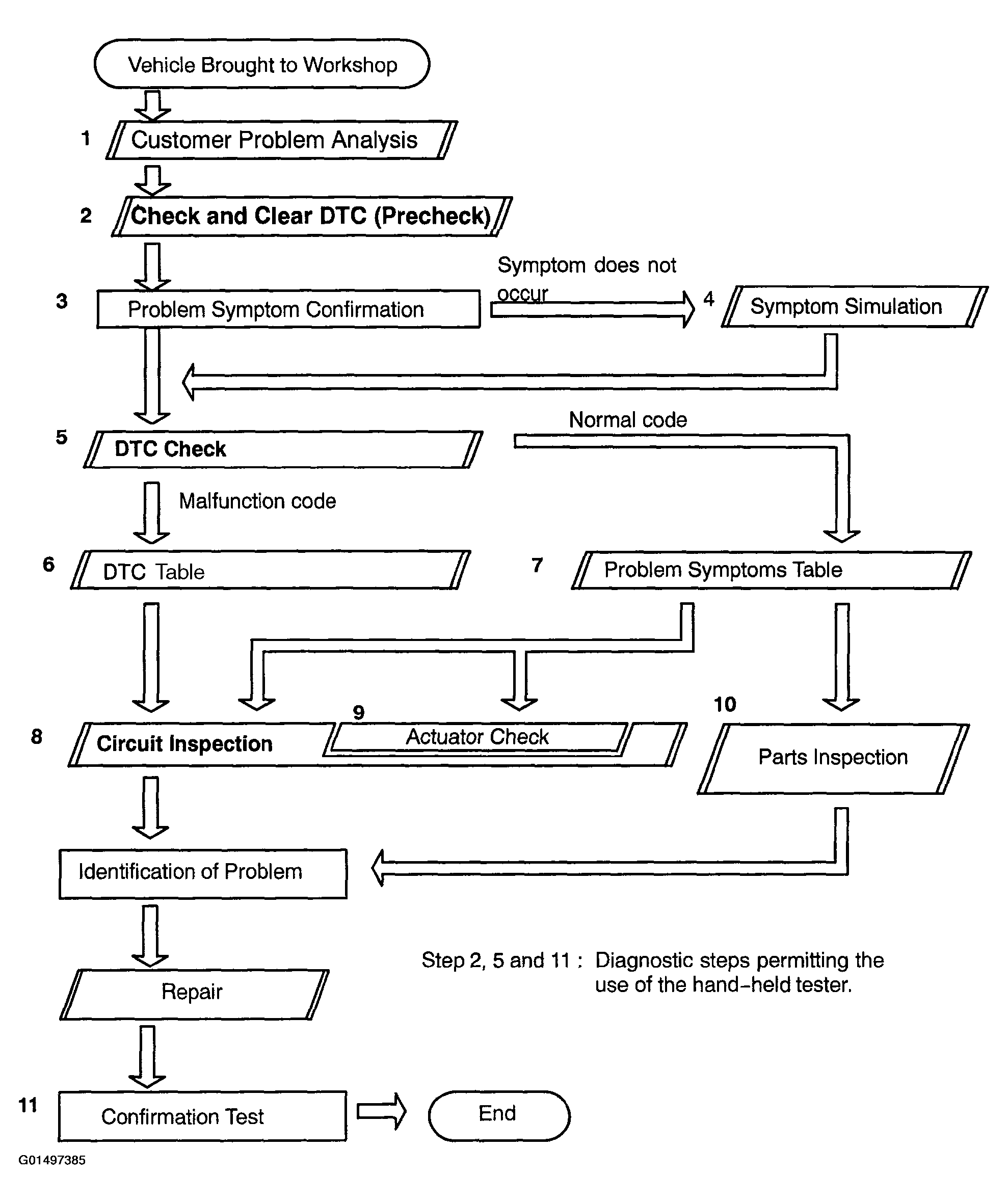

Fig 1: Troubleshooting Flow Table
