Inspection Procedure

HINT:

If there is the LEXUS hand-held tester, begin with STEP  2.

1. Perform active test.

   PREPARATION:

   1. Connect the LEXUS hand - held tester to the DLC3.
   2. Turn ignition switch ON and LEXUS hand-held tester main switch ON.
   3. Select the DATA LIST mode on the LEXUS hand-held tester.

   CHECK:

   Check that light turns ON or OFF as the LEXUS hand-held tester directs.

   HINT:

   All lights flush except shift indicator.

   OK:

   The light operates normally.

   1. OK: Proceed to next circuit Inspection shown in problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
   2. NG: Go to next Step.
2. Check bulb.

   CHECK:

   Apply the tester as shown to test for continuity.

   OK:

   Continuity

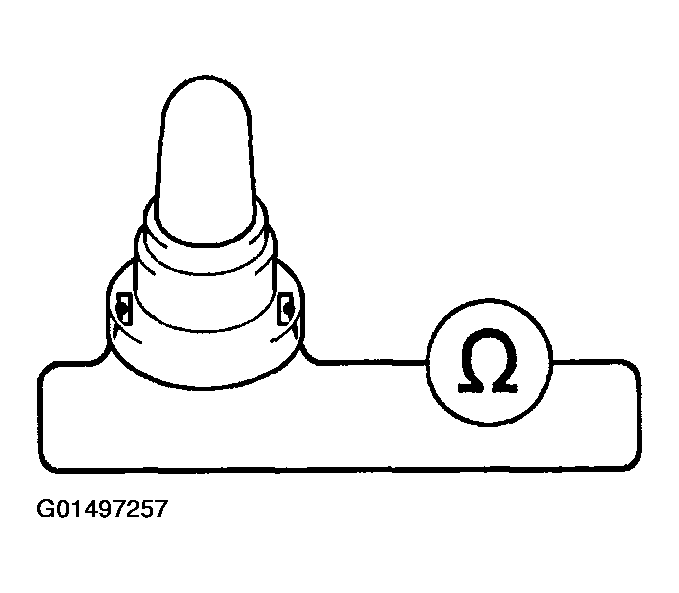

   Fig 1: Checking Bulb Continuity

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: Replace bulb.
   2. OK: Go to next step.
3. Check circuit plate (See  INSPECTION  ).
   1. NG: Replace circuit plate.
   2. OK: Go to next step.

      Check and replace combination meter (See  CIRCUIT  ).
