How To Determine Nut Strength

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

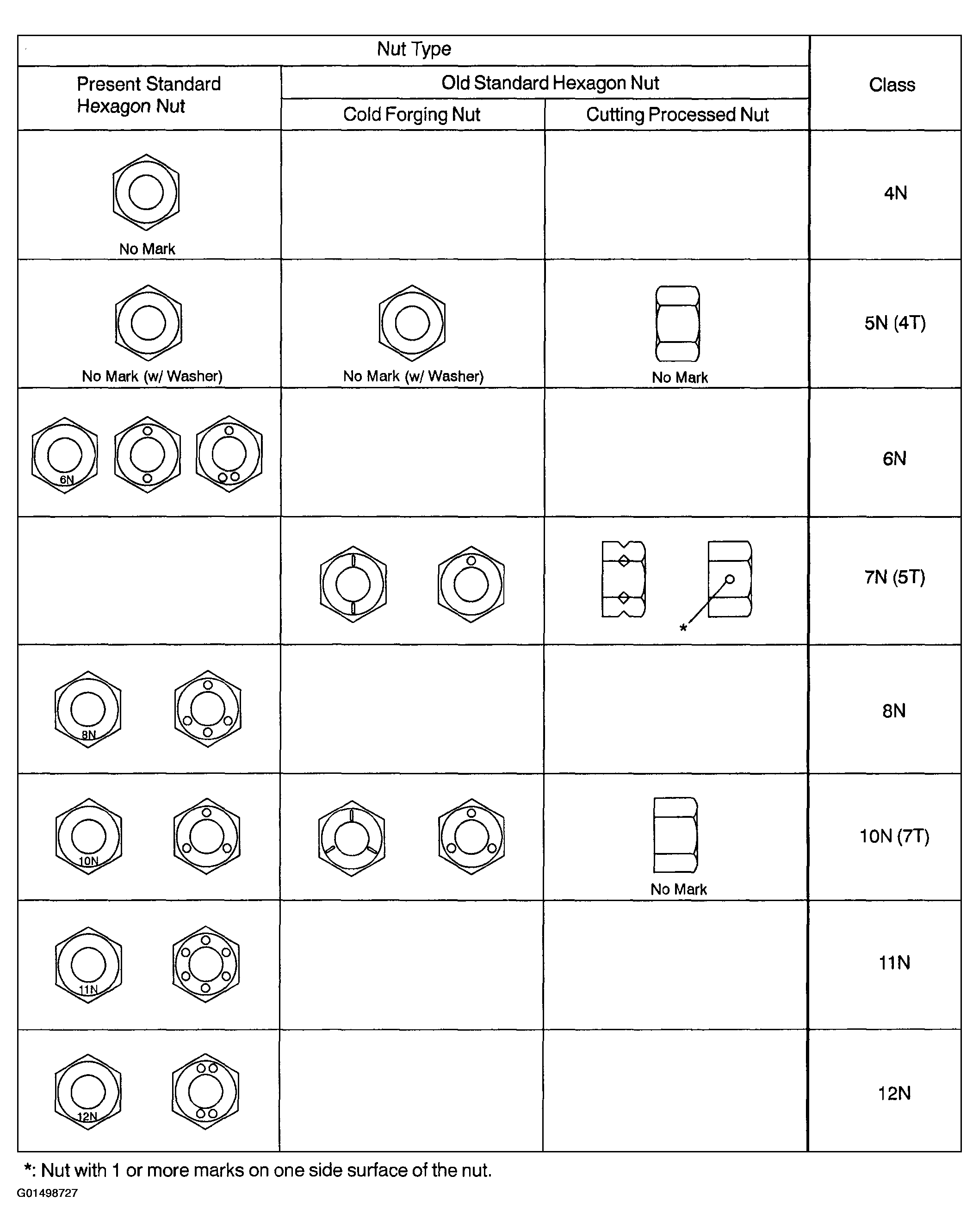

Fig 1: Nut Strength Specification Table
G01498727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the nut with the same number of the nut strength classification or the greater than bolt strength classification number when tightening parts with a bolt and nut.

Example: Bolt= 4t

Nut = 4N or more
