Section 722 (Engine Cooling System (3MZ-FE)): Inspection

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT THERMOSTAT
HINT:

The thermostat is numbered with the valve opening temperature.

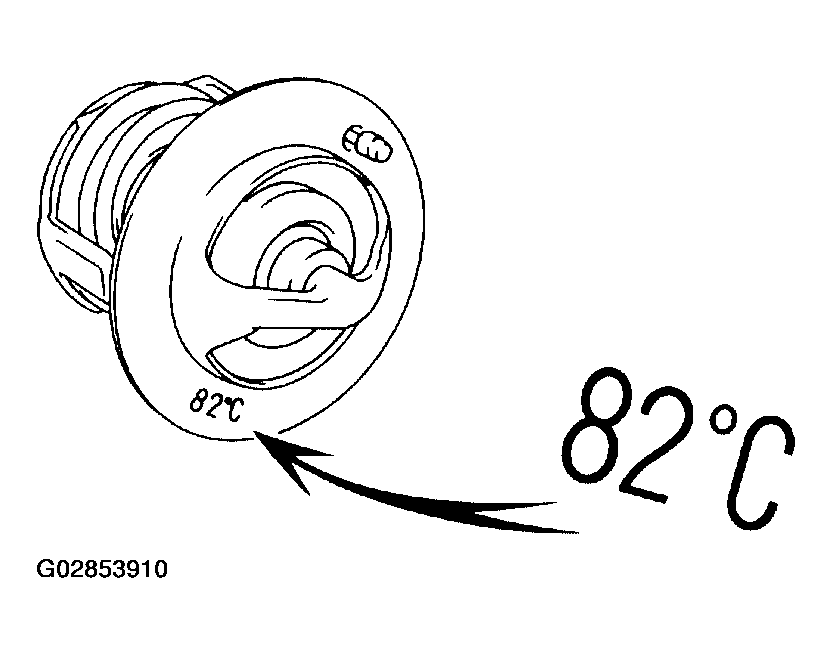

Fig 1: Identifying Numbered Valve Opening Temperature On Thermostat
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Immerse the thermostat in water and gradually heat the water.

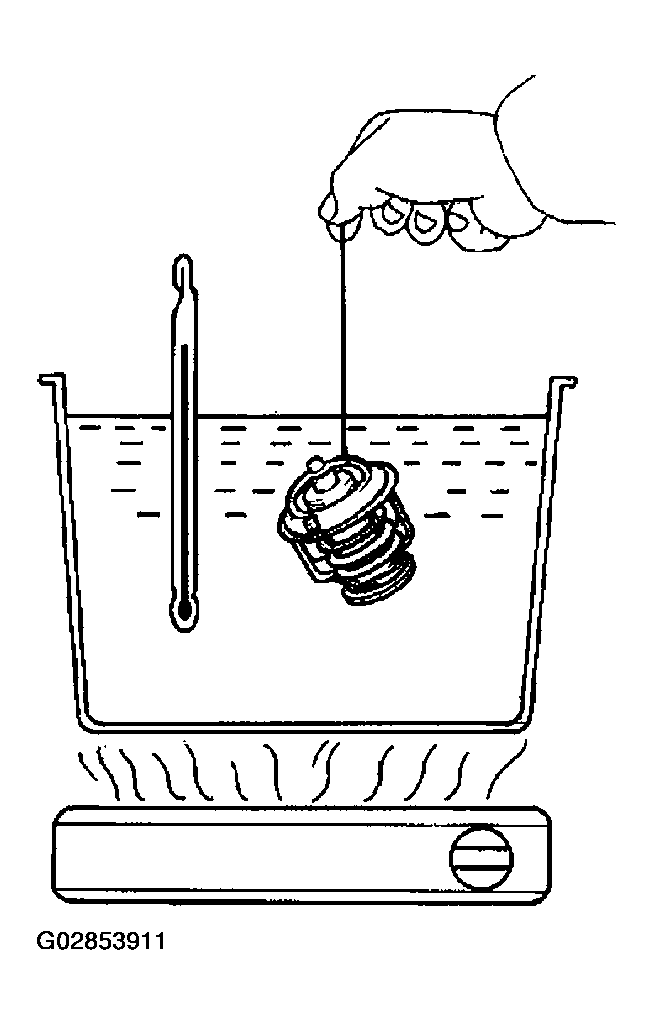

  Fig 2: Immersing Thermostat In Heated Water
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the valve opening temperature.
  Valve opening temperature: 80 to 84°C (176 to 183°F)

  If the valve opening temperature is not as specified, replace the thermostat.
3. Check the valve lift.
  Valve lift: 10 mm (0.394 in.) or more at 95°C (203°F)

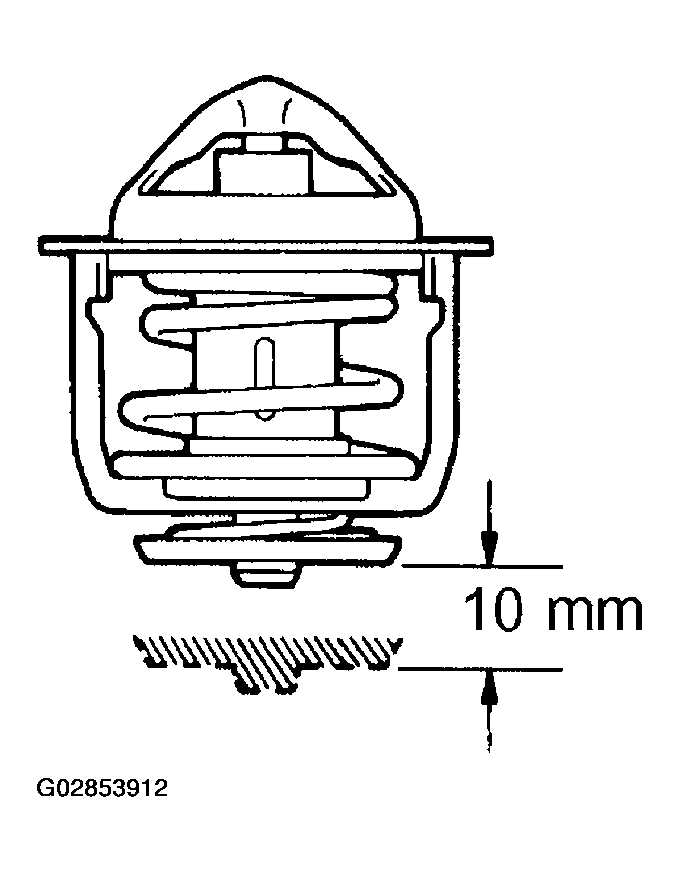

  Fig 3: Checking Valve Lift
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the valve lift is not as specified, replace the thermostat.
4. Check that the valve is fully closed when the thermostat is at low temperatures (below 40°C (104°F)).
If not closed, replace the thermostat.
INSPECT WATER OUTLET CAP SUB-ASSY
NOTE:
- If the reservoir cap is contaminated, always rinse it with water.
- Before using a radiator cap tester, wet the relief valve and pressure valve with engine coolant or water.
- When performing steps a and b below, keep the tester at an angle of over 30° above the horizontal.
1. Using a radiator cap tester, slowly pump the tester and check that air is being released from the vacuum valve.
  Pump speed: 1 push every 3 seconds or more

  NOTE: Push the pump at a constant speed.

  If air is not being released from the vacuum valve, replace the reservoir cap.

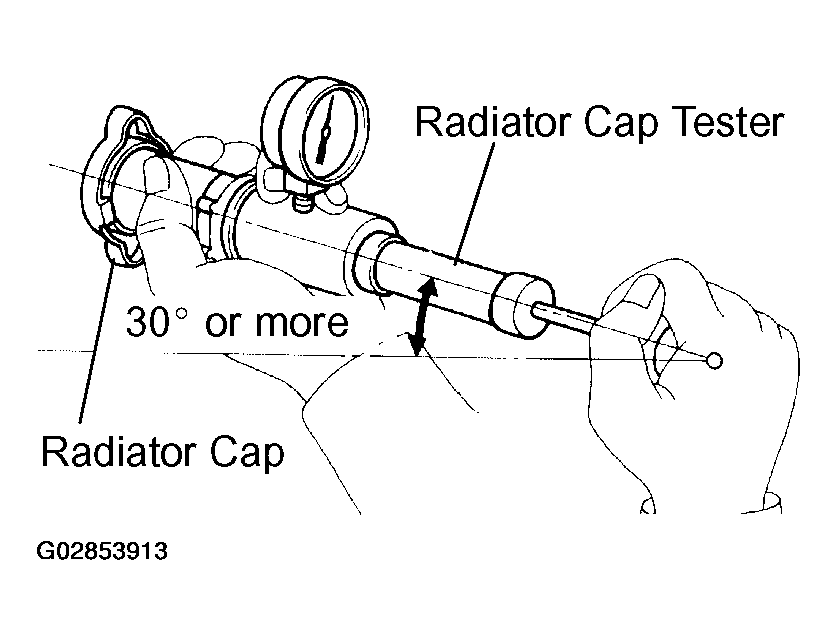

  Fig 4: Checking Air Is Being Released Using Radiator Cap Tester
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pump the tester and measure the relief valve opening pressure.
  Pump speed: 1 push within 1 second
NOTE: The pump speed above should be followed for the first pump only, it will close the vacuum valve. Once the vacuum valve is closed, the pump speed can be reduced.

Standard opening pressure: 69.0 to 112.8 kPa (0.70 to 1.15 kgf/cm² ,10.0 to 16.4 psi)

HINT:

Use the tester's maximum reading as the opening pressure. If the maximum reading is less than the minimum opening pressure above, replace the radiator cap.
