Drive Belt: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL RH
REMOVE FRONT FENDER APRON SEAL RH
REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
1. Loosen bolts A and B.
2. Loosen adjusting bolt C and remove the belt.

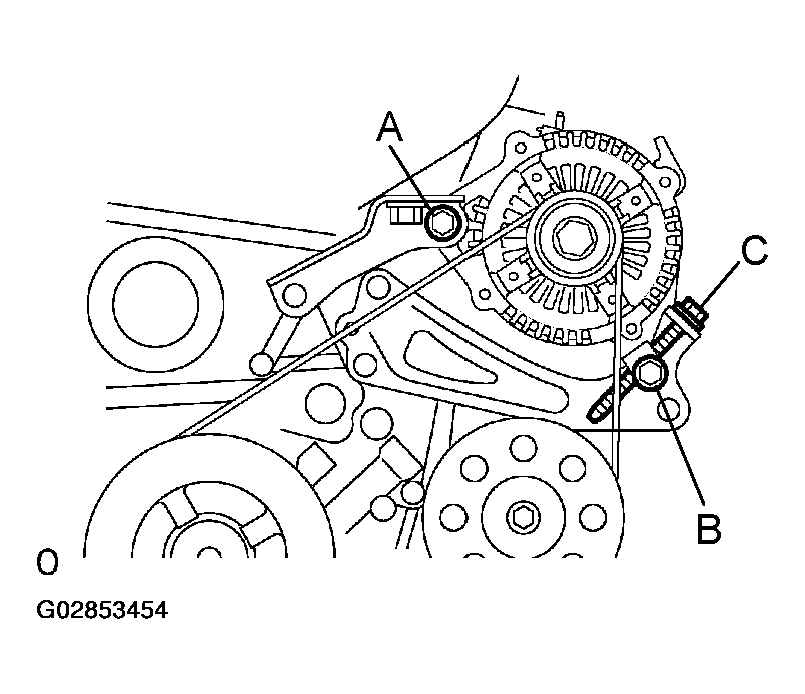

Fig 1: Removing V Belt No. 1 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VANE PUMP V BELT
1. Loosen bolts A and B, and remove the belt.

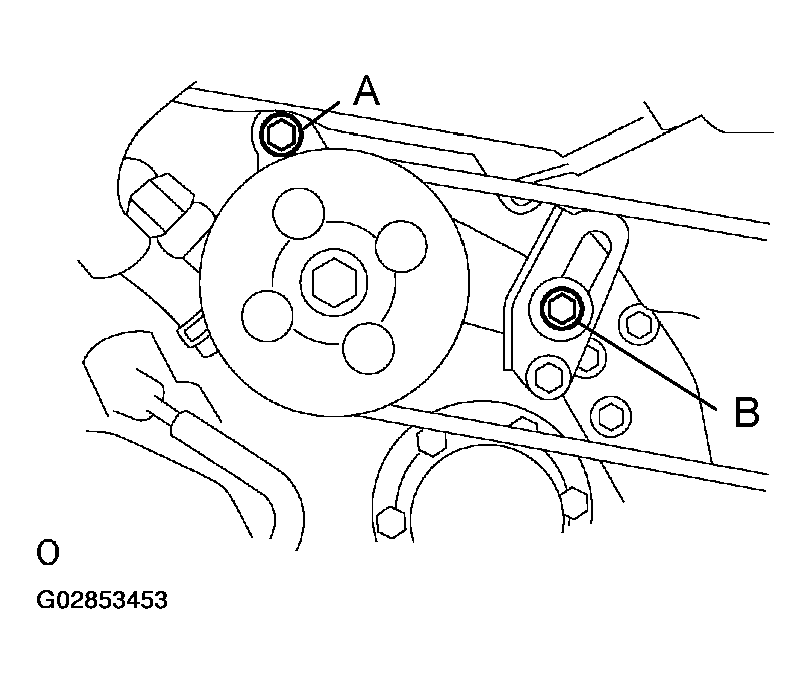

Fig 2: Removing Vane Pump V Belt Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VANE PUMP V BELT
1. Install the belt on each pulley.
2. Using a bar, adjust the belt tension and tighten bolt B.
  Torque: 43 N.m (439 kgf.cm, 32 ft.lbf)
3. Tighten bolt A.
  Torque: 43 N.m (439 kgf.cm, 32 ft.lbf)
Fig 3: Installing Vane Pump V Belt Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
1. Install the belt on each pulley.
2. Tighten adjusting bolt C, and adjust the belt tension.
3. First tighten bolt A, then bolt B.
  Torque:
  - 58 N.m (591 kgf.cm, 43 ft.lbf) for bolt A
  - 18 N.m (184 kgf.cm, 13 ft.lbf) for bolt B
Fig 4: Installing V Belt No. 1 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT DRIVE BELT TENSION (See INSPECTION )
INSTALL FRONT WHEEL RH
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
