Section 714 (Engine Fuel System (3MZ-FE))
>>
Fuel Injector ASSY
>>
Components
Fuel Injector ASSY: Components
WARNING:
This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

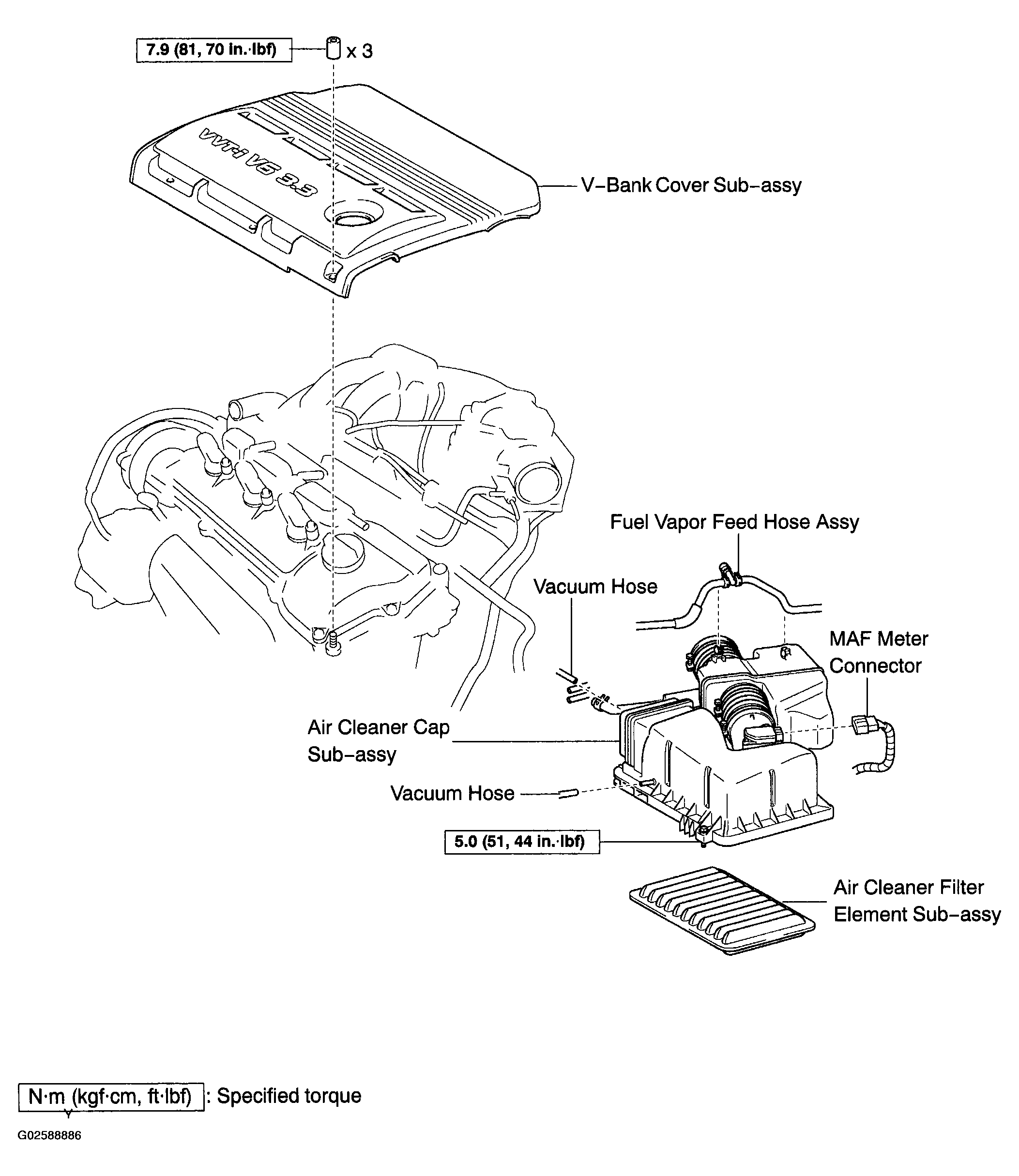

Fig 1: Exploded View Of Fuel Injector Assembly (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

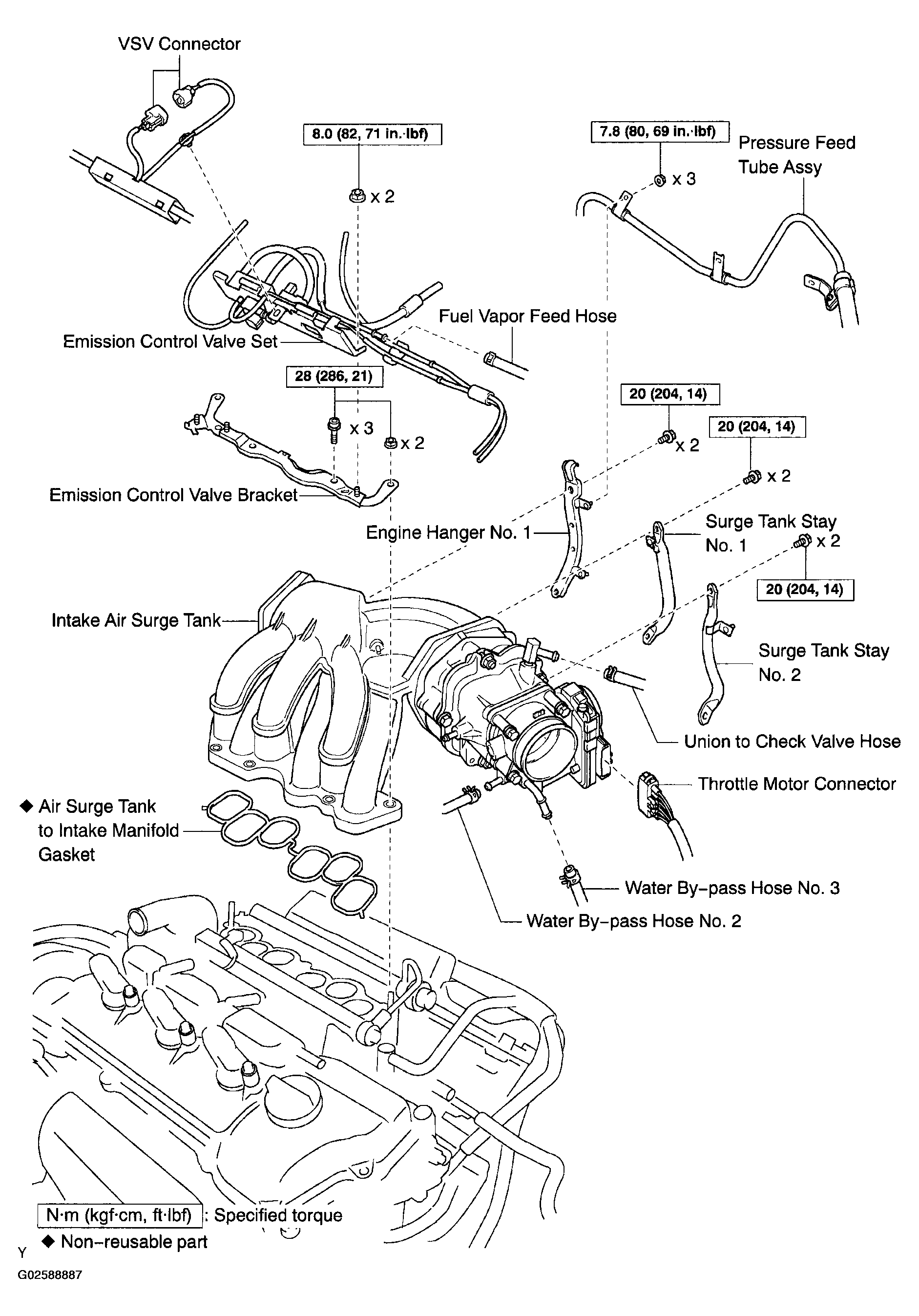

Fig 2: Exploded View Of Fuel Injector Assembly (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

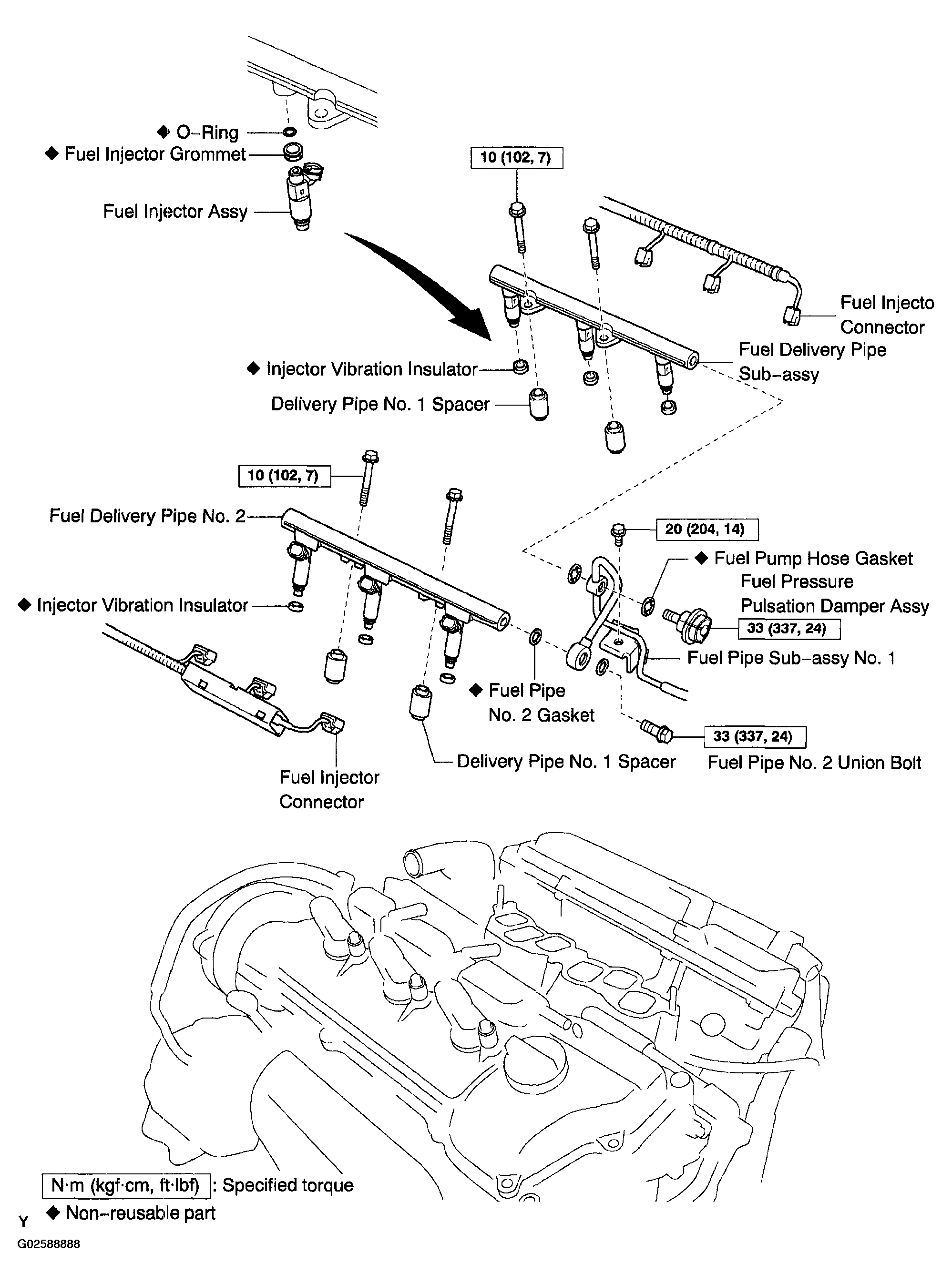

Fig 3: Exploded View Of Fuel Injector Assembly (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
