Accelerator Pedal ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ACCELERATOR PEDAL ASSY
    1. Disconnect the accelerator position sensor connector.
    2. Remove the 2 bolts and accelerator pedal.

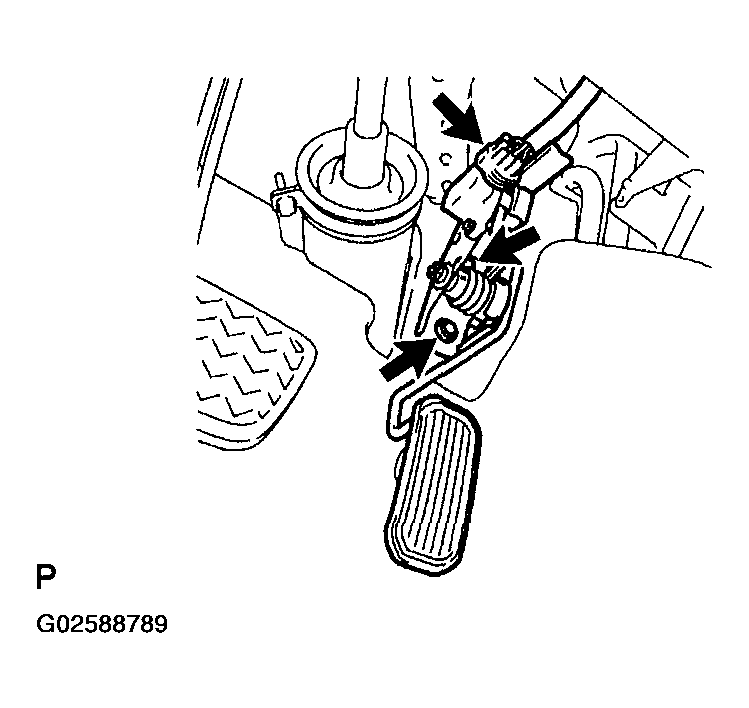

    Fig 1: Removing Accelerator Pedal Assembly
    G02588789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ACCELERATOR PEDAL ASSY
    1. Connect the accelerator position sensor connector.
    2. Install the accelerator pedal with the 2 bolts.

      Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
