Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK INSTRUMENT PANEL J/B ASSY (MULTIPLEX NETWORK BODY ECU)

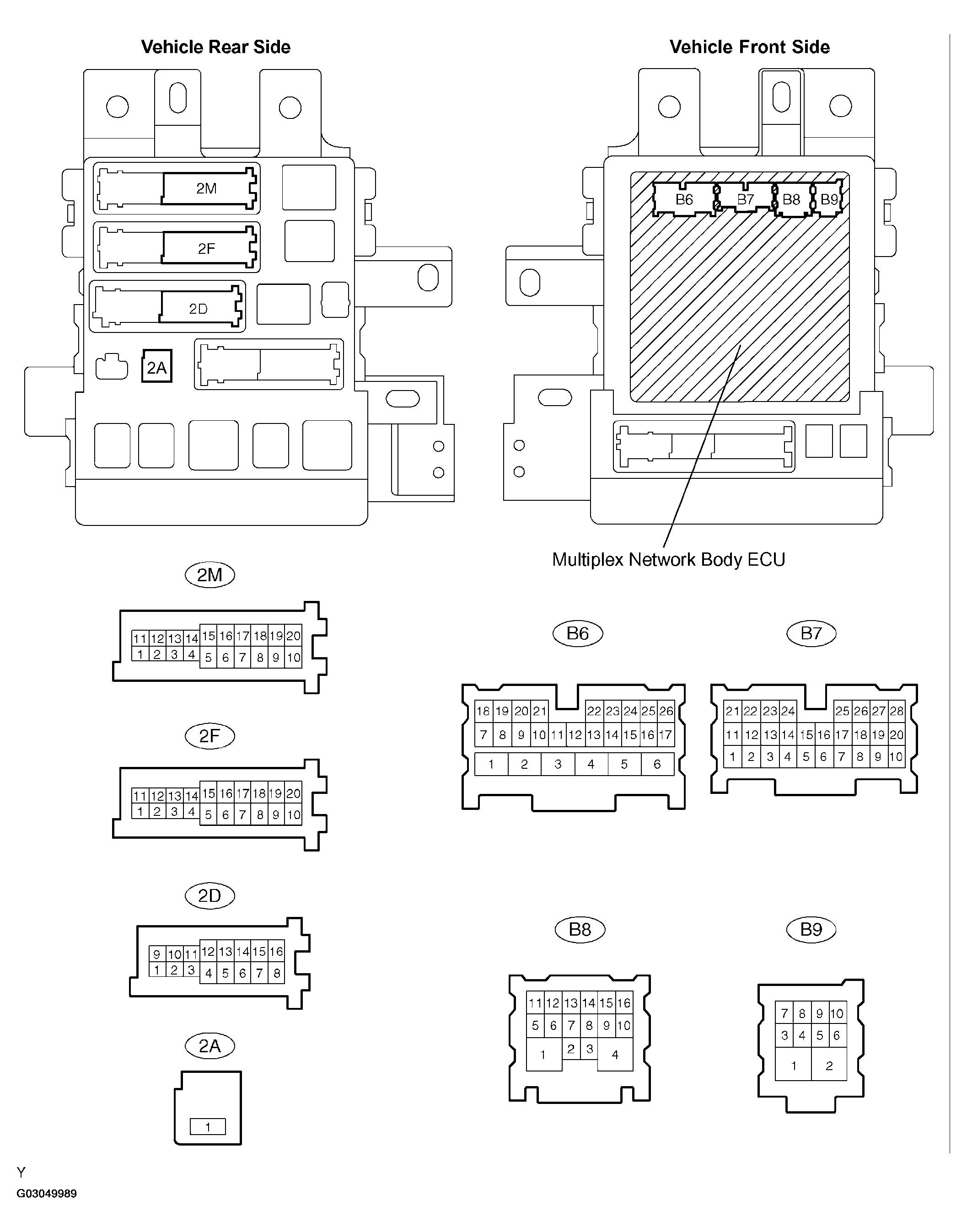

    Fig 1: Identifying Instrument Panel J/B Assy (Multiplex Network Body ECU)
    G03049989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Disconnect the B6, B7, B8 and B9 ECU connectors.
  2. Disconnect the 2A, 2D, 2F and 2M J/B connectors.
  3. Measure the voltage and resistance of the wire harness side connectors.

    Standard:

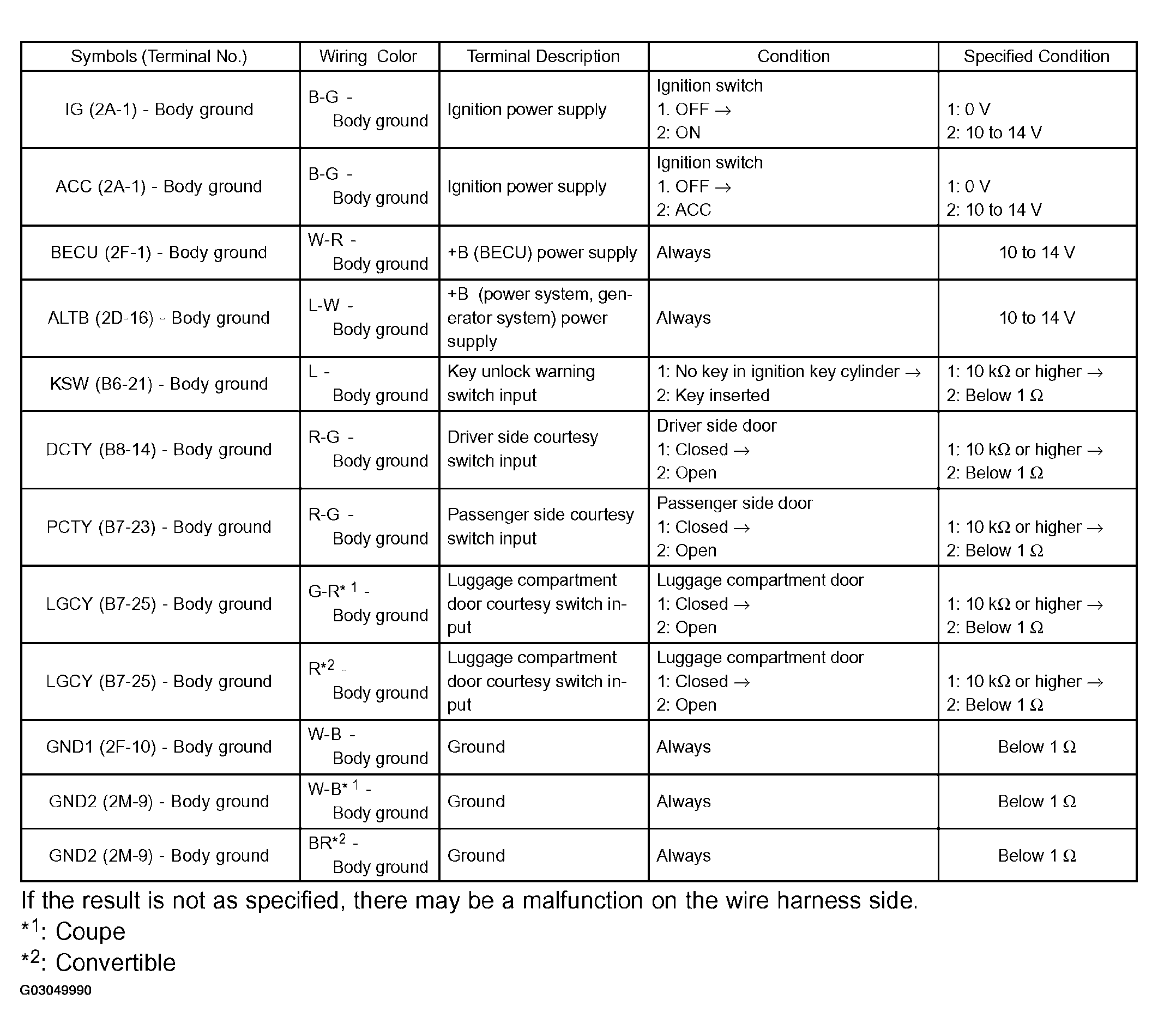

    Fig 2: Checking Instrument Panel J/B Assy (Multiplex Network Body ECU) Table
    G03049990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Reconnect the B6, B7, B8 and B9 ECU connectors.
  5. Reconnect the 2A, 2D, 2F and 2M J/B connectors.
  6. Measure the voltage of the connectors.

    Standard:

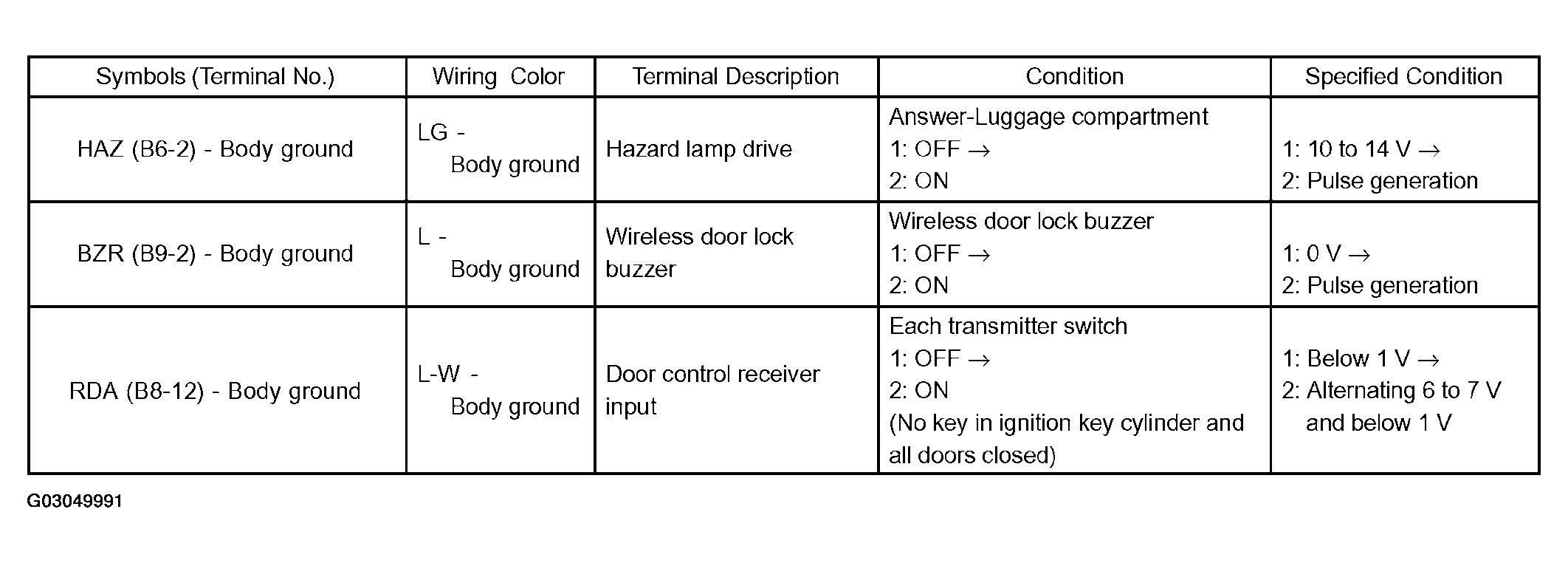

    Fig 3: Measuring Voltage Between Each Terminal Of Connectors & Body Ground Table
    G03049991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, there may be a malfunction on the J/B assy (multiplex network body ECU).
