Section 699 (Power Window Control System (Coupe) - Diagnostics): Inspection

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
    1. Remove the master switch (see OVERHAUL ).
    2. Measure the resistance of the switch when the switch is operated.

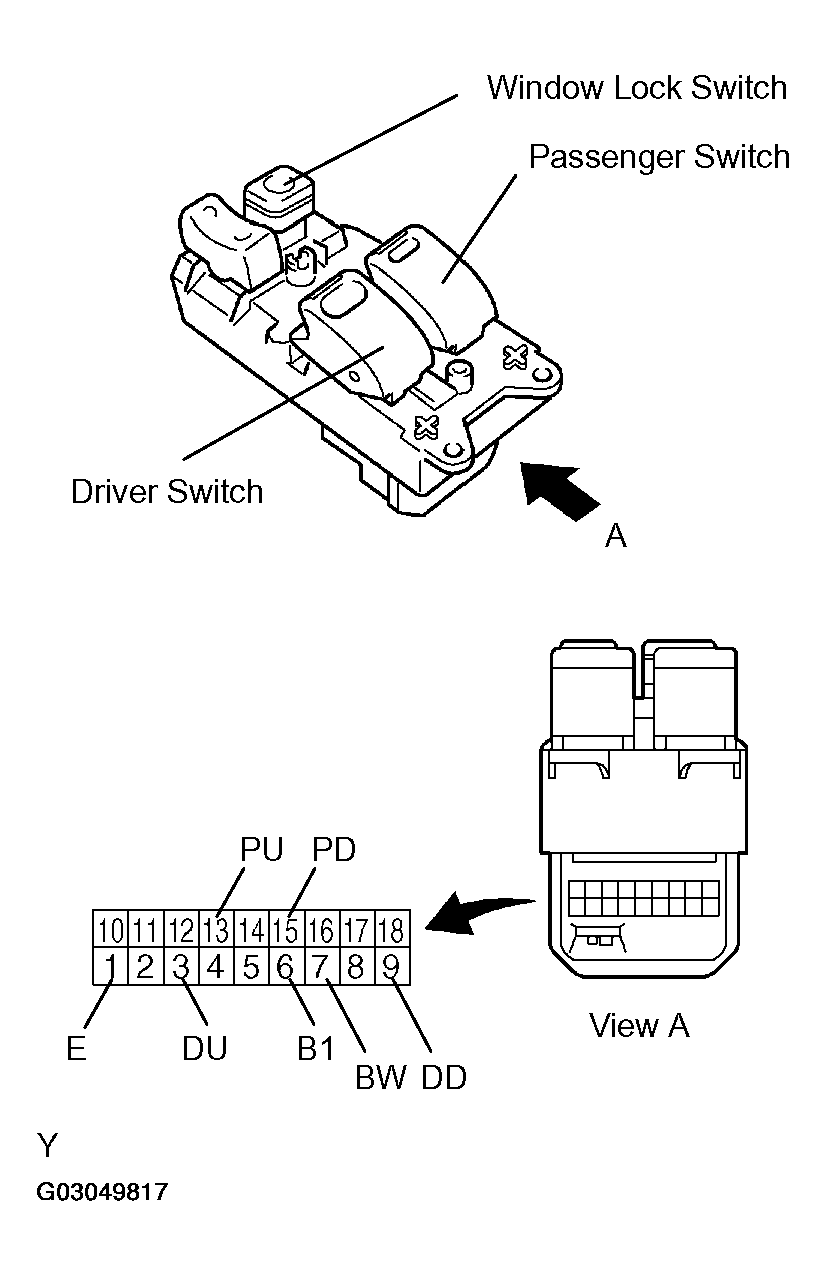

      Fig 1: Measuring Resistance Of Switch When Operated
      G03049817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      Driver switch

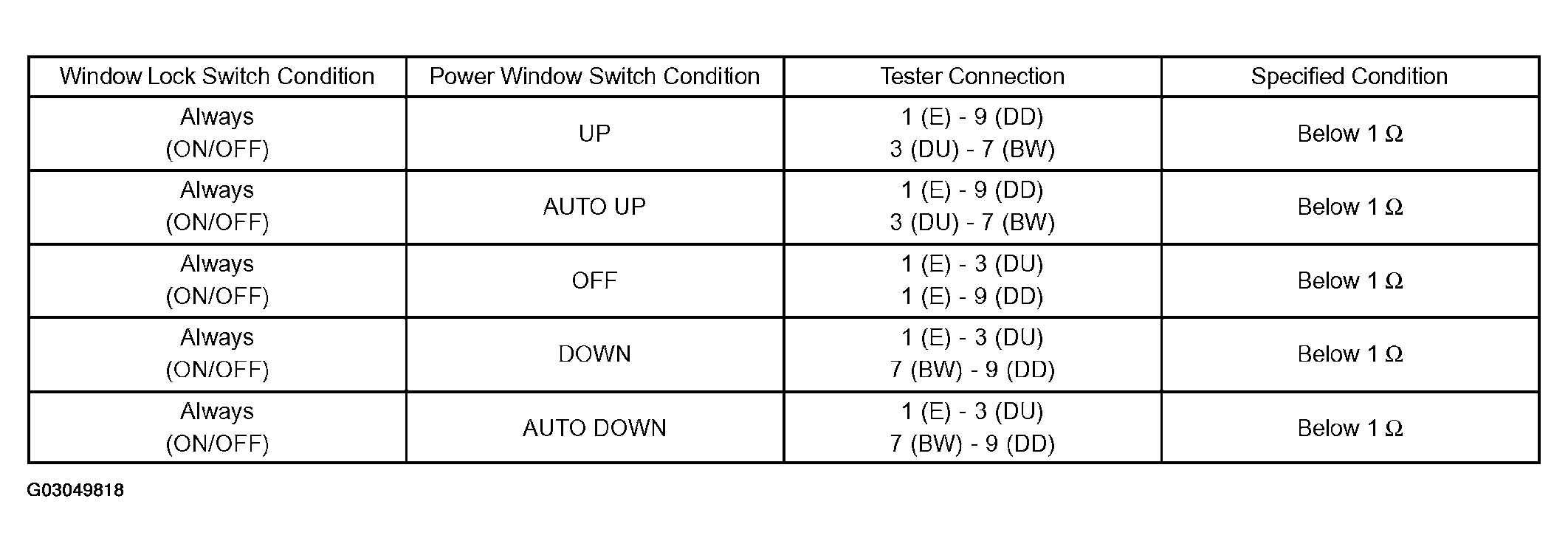

      Fig 2: Driver Switch Resistance Specification Table
      G03049818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Passenger switch

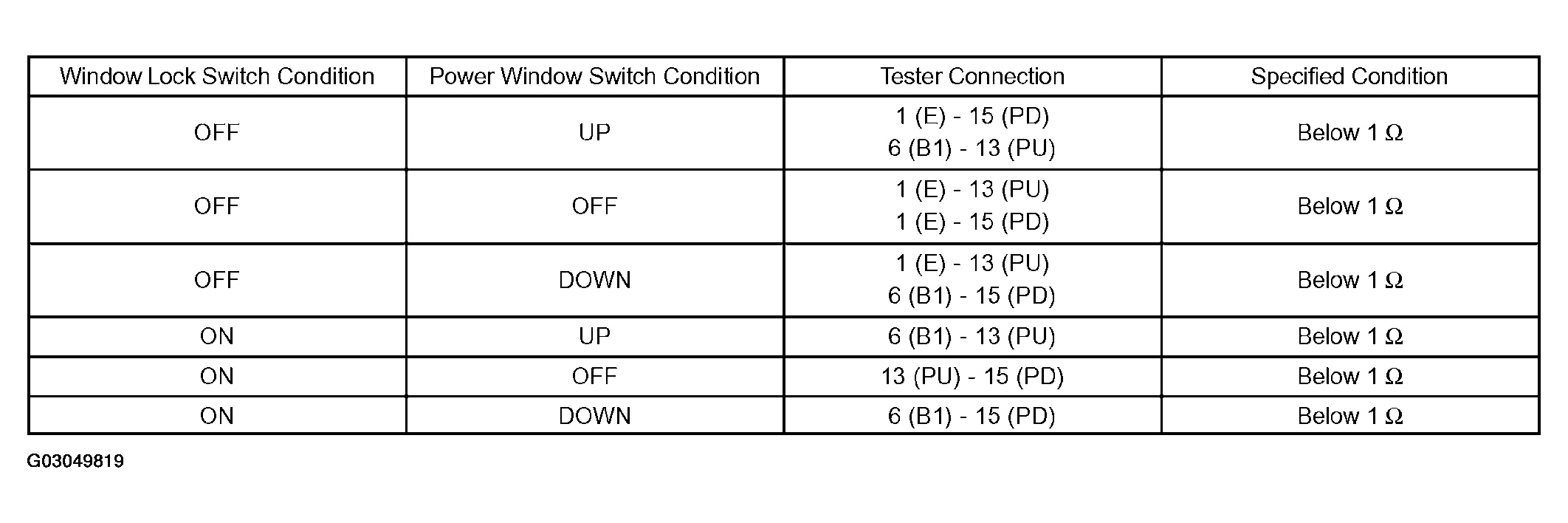

      Fig 3: Passenger Switch Resistance Specification Table
      G03049819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the master switch AUTO lamp.

      OK:

    Fig 4: Auto Lamp Illuminating Condition Table
    G03049820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the master switch assy.

    Fig 5: Identifying Auto Pump & Master Switch Connector
    G03049821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT POWER WINDOW REGULATOR SWITCH ASSY
    1. Remove the power window regulator switch (see OVERHAUL ).
    2. Measure the resistance of the switch when the switch is operated.

    Standard:

    Fig 6: Power Window Regulator Switch Resistance Specification Table
    G03049822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 7: Identifying Power Window Regulator Switch Connector
    G03049823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the regulator switch assy.

  3. INSPECT POWER WINDOW REGULATOR MOTOR ASSY
    1. Check operation of the regulator motor.
      1. Remove the power window regulator motor (see OVERHAUL ).
      2. Apply battery voltage to the motor terminals.
        NOTE: Do not apply voltage to the terminals except 1 and 2.
      3. Check that the motor operates smoothly.

      OK:

      LH (Driver side)

      Fig 8: Motor Gear Rotating Condition Table
      G03049824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

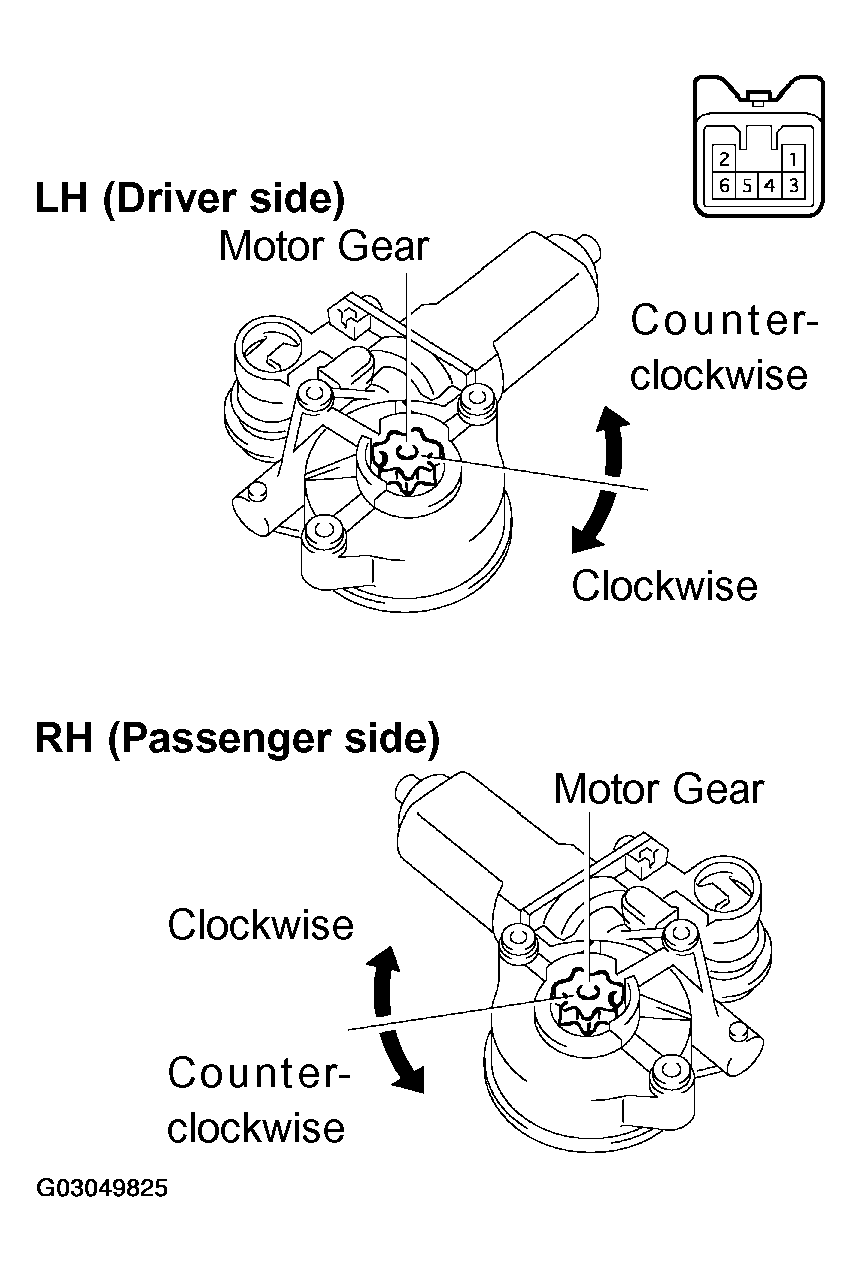

      Fig 9: Inspecting Power Window Regulator Motor Assy LH (Driver Side)
      G03049825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      RH (Passenger side)

      Fig 10: Inspecting Power Window Regulator Motor Assy RH (Passenger Side)
      G03049826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the motor assy.

    2. Check the PTC operation inside the regulator motor.
      NOTE: The work must be performed with the power window regulator and door glass installed in the vehicle.
      Fig 11: Checking PTC Operation Inside Regulator Motor
      G03049827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the driver side power window regulator motor.
      2. Connect the ammeter's positive (+) lead to terminal 2 of the wire harness side connector and the negative (-) lead to the battery's negative terminal.
      3. Connect the battery's positive (+) lead to terminal 1 of the wire harness side connector, and raise the window to the fully closed position.
      4. Continue to apply voltage, and check that the current changes to less than 1 A within 4 to 90 seconds.
      5. Disconnect the leads from the terminals.
      6. Approximately 60 seconds later, connect the battery's positive (+) lead to terminal 2 and the negative (-) lead to terminal 1, and check that the window begins to descend.

    If the result is not as specified, replace the motor assy.

  4. INSPECT RELAY (IG1, PWR)
    1. Remove the IG1 and PWR relays from the instrument panel J/B.
    2. Measure the resistance of the relays.

    Standard:

    RELAYS RESISTANCE SPECIFICATION

    Tester Connection Specified Condition
    3 - 5 10 kΩ or higher
    3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

    If the result is not as specified, replace the relay.

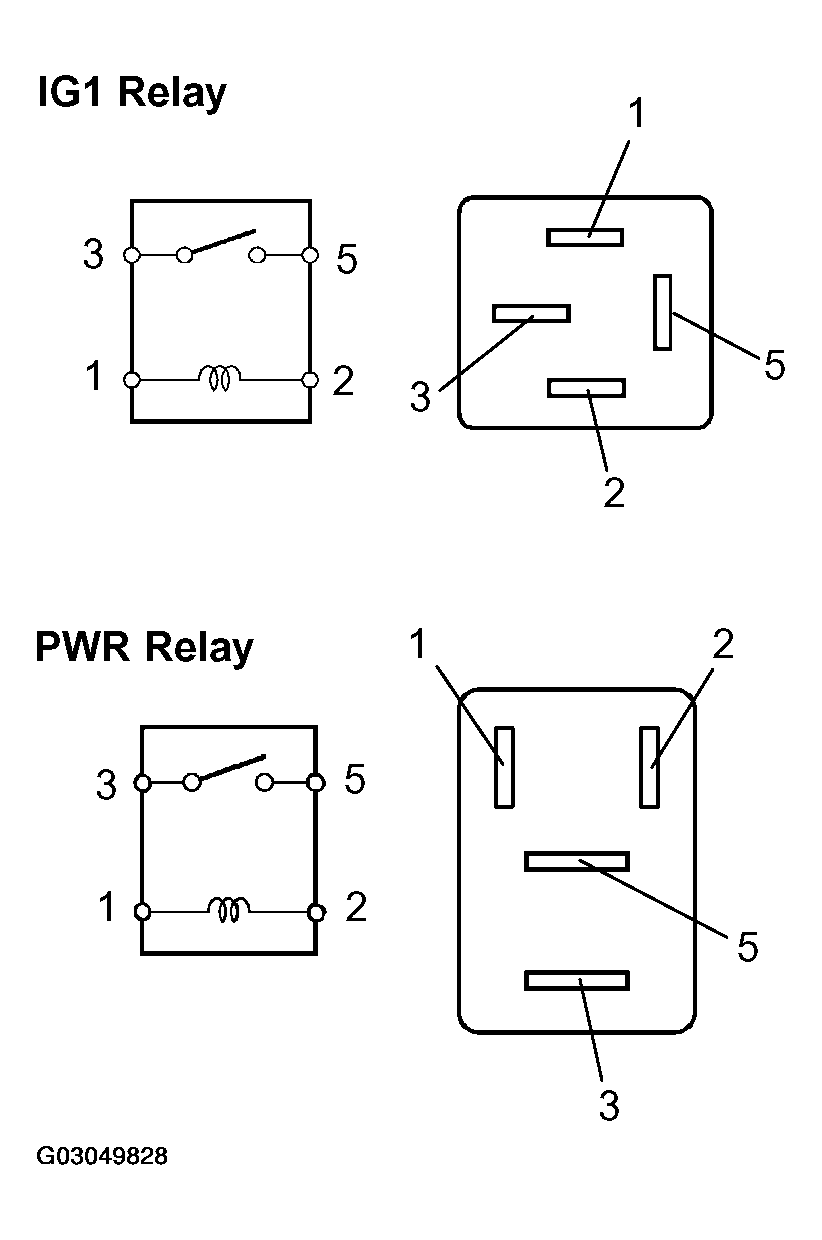

    Fig 12: Inspecting Relay (IG1 & PWR)
    G03049828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
