System Diagram

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

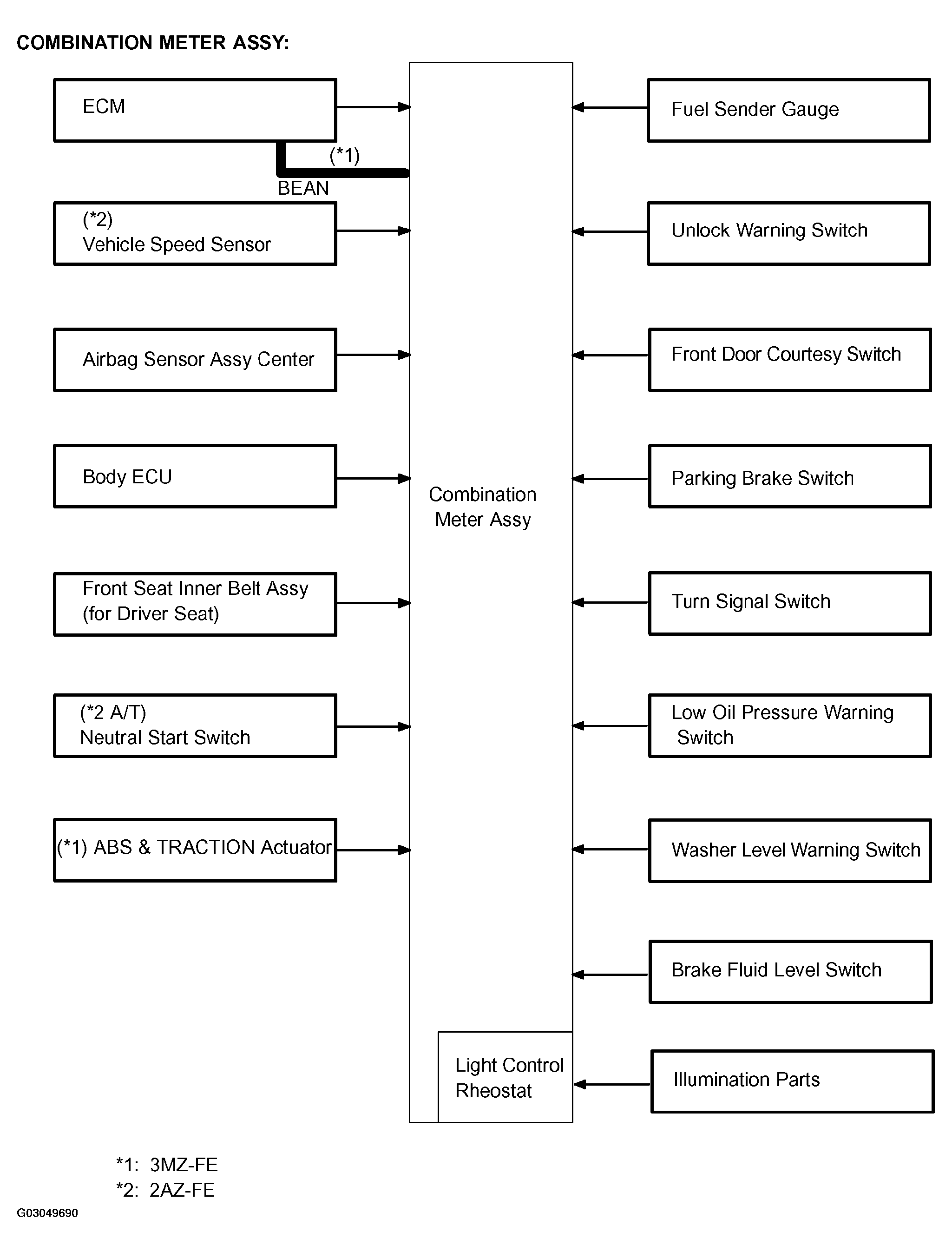

Fig 1: Combination Meter Assy System Diagram
G03049690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

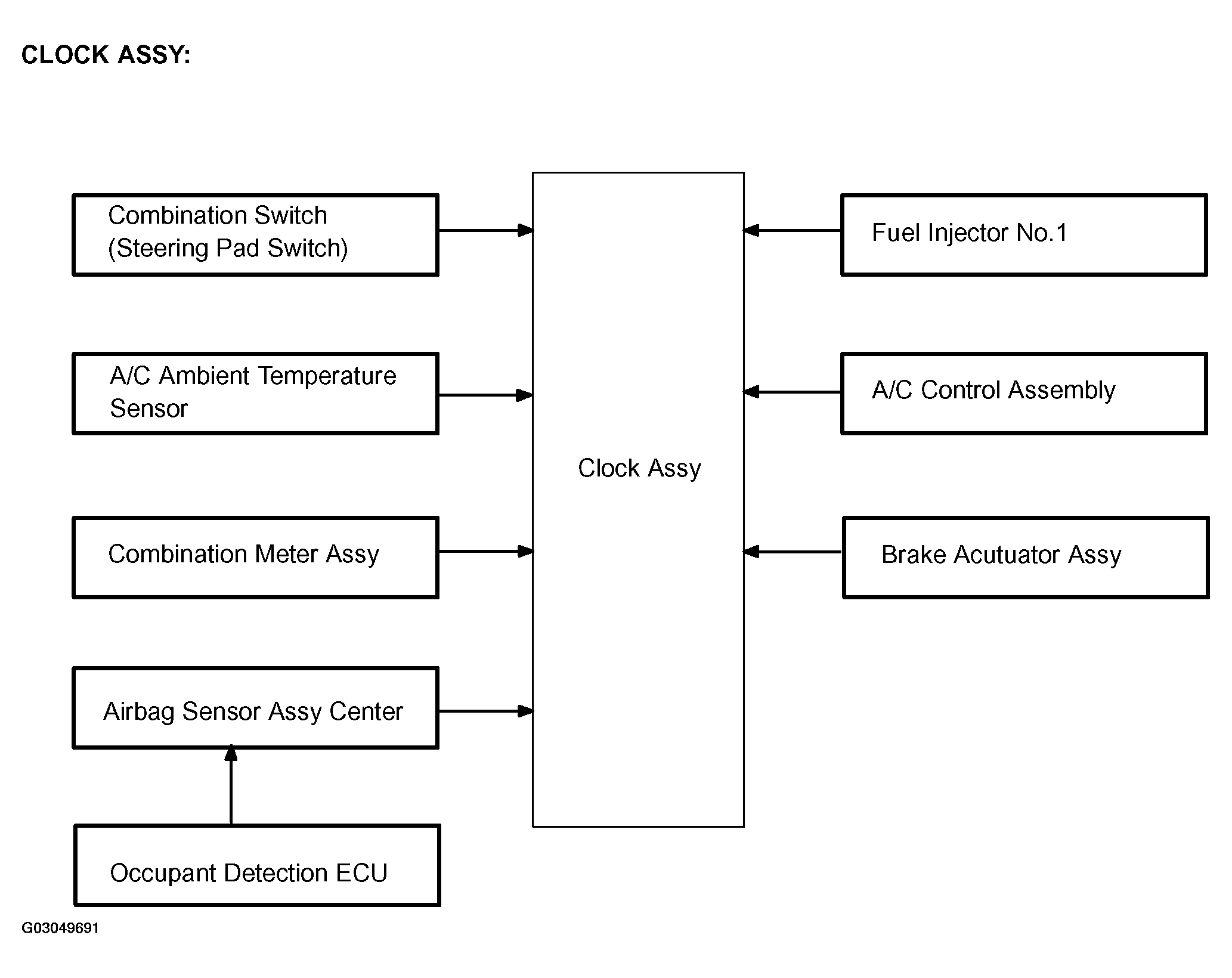

Fig 2: Clock Assy System Diagram
G03049691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
