Section 696 (Audio System - Diagnostics): Location

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

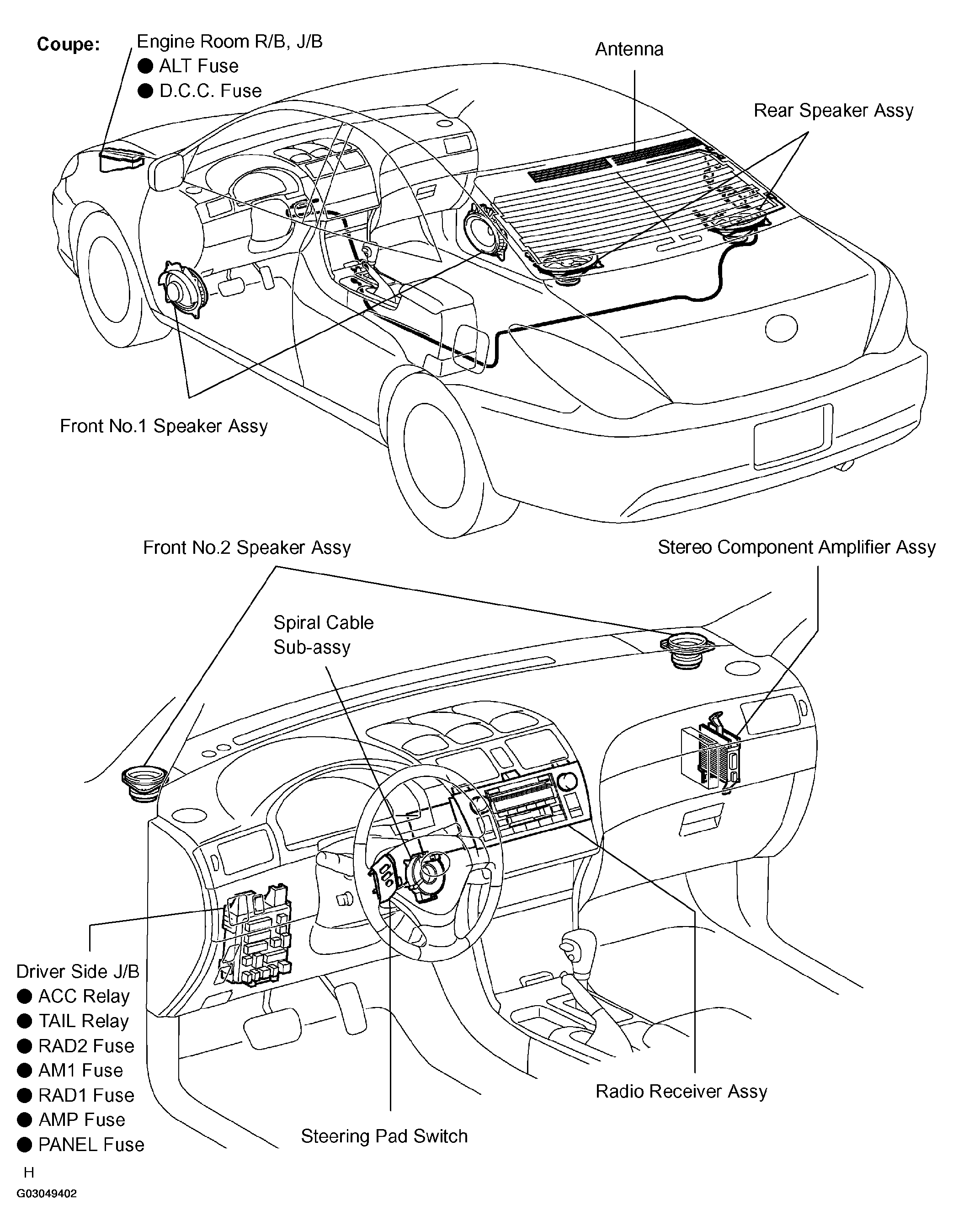

Fig 1: Locating Audio System Components (1 Of 2)
G03049402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

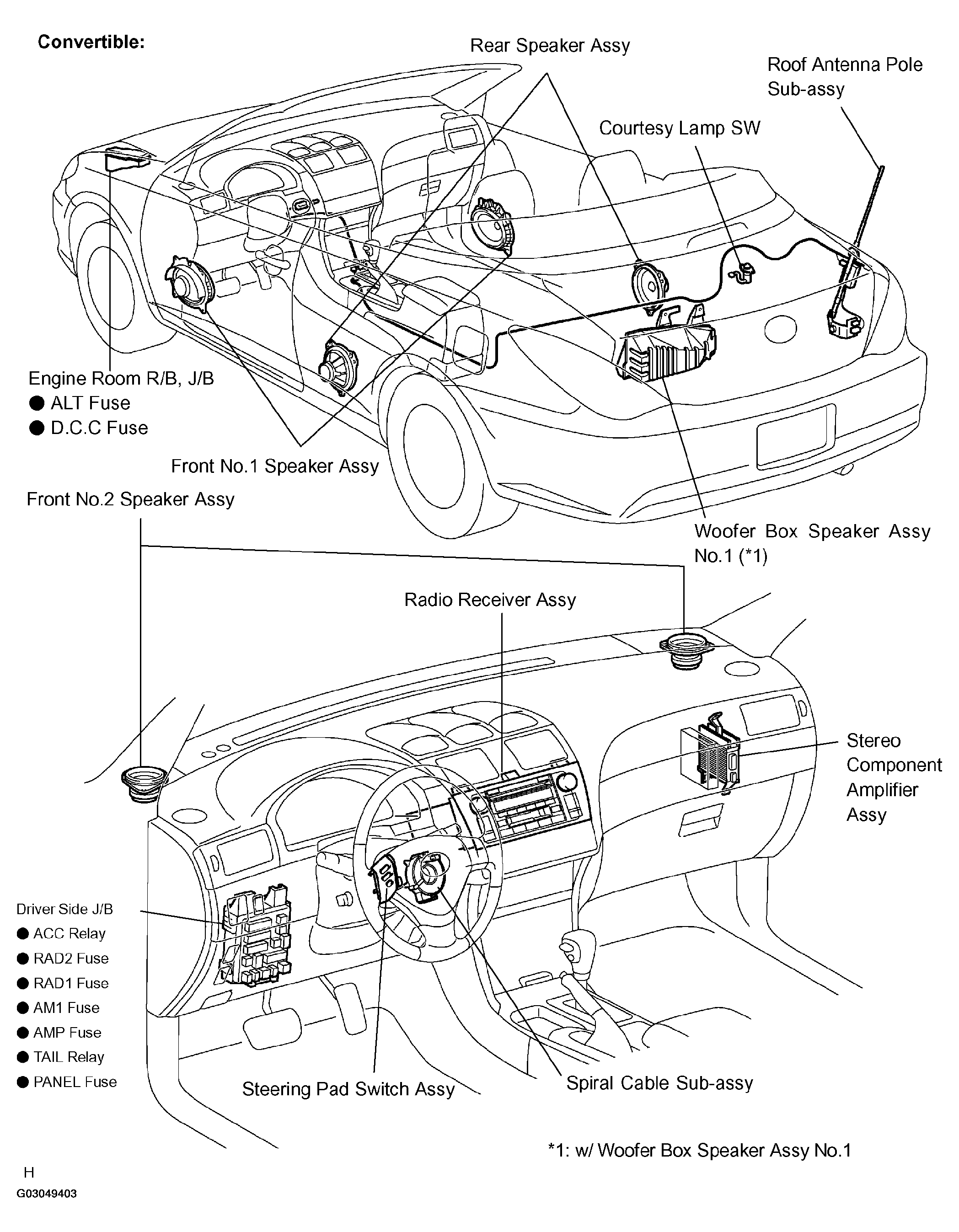

Fig 2: Locating Audio System Components (2 Of 2)
G03049403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
