Section 694 (Air Conditioning System Diagnostics): Location

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

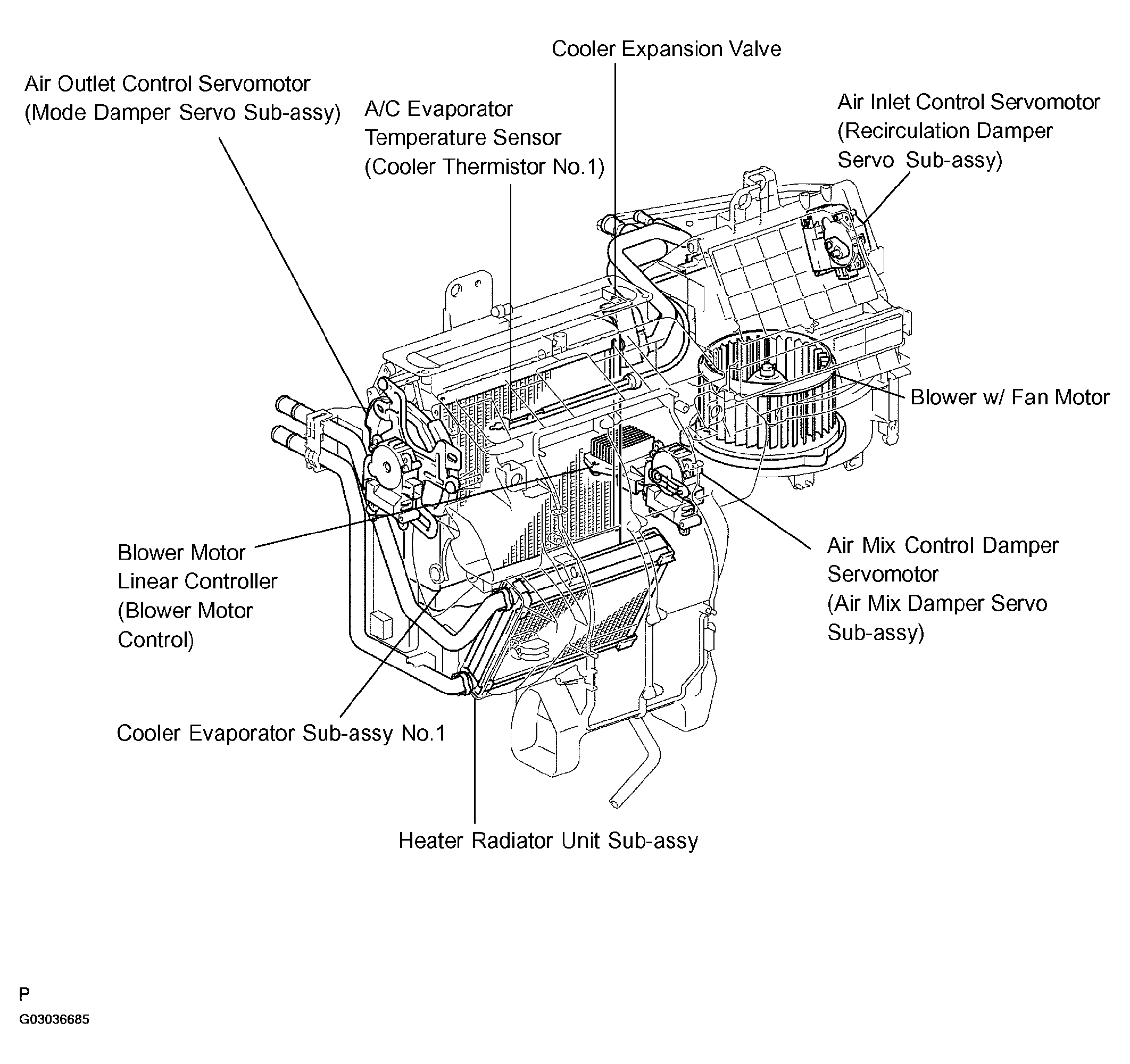

Fig 1: Locating A/C System Parts (1 Of 2)

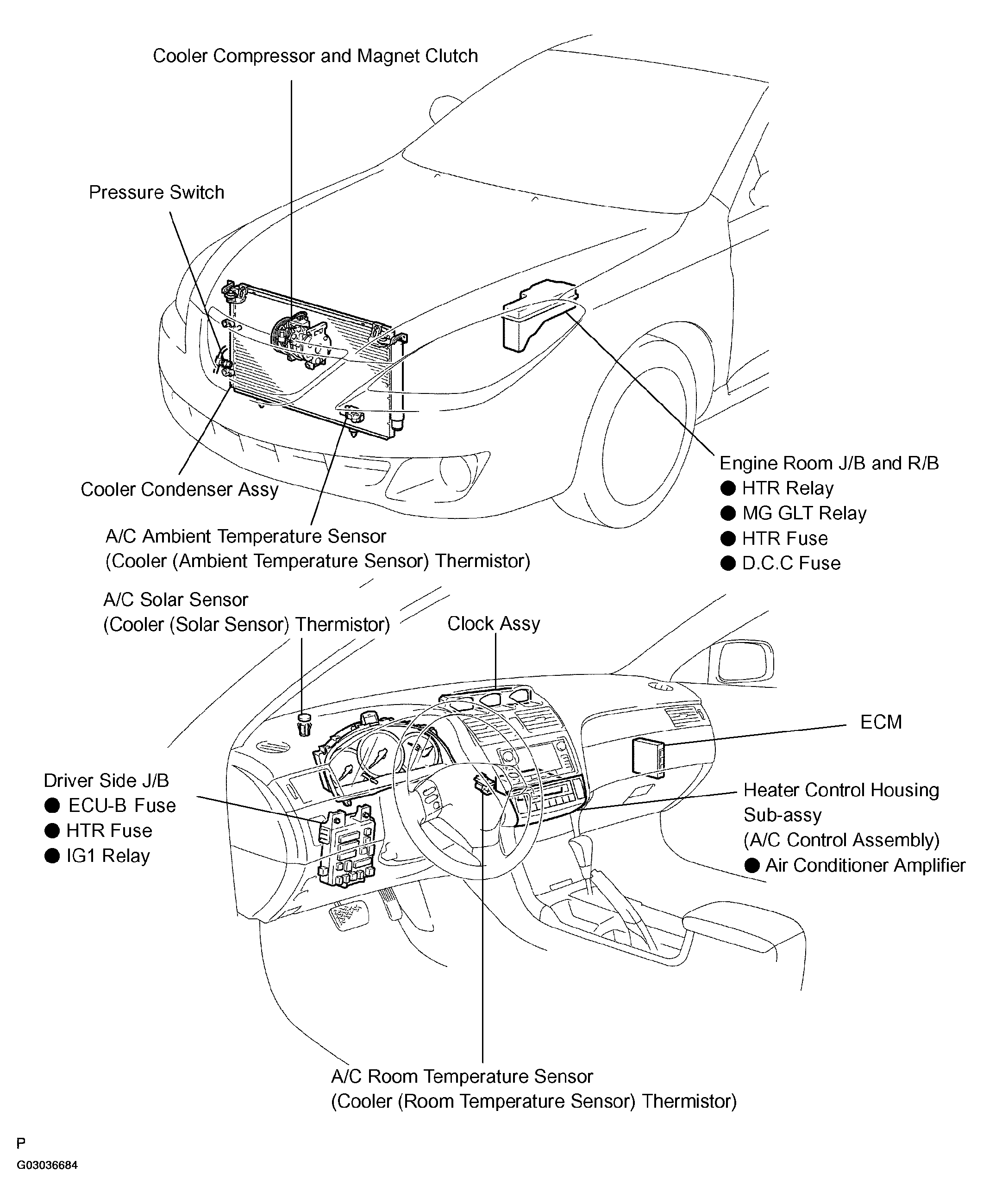

Fig 2: Locating A/C System Parts (2 Of 2)
