Diagnostic Trouble Code Table
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When removing parts, turn the ignition switch off.
HINT:
- If an abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
- If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the "See page" for respective "DTC No." in the DTC table.
- When 2 or more DTCs are detected, perform circuit inspection one by one until the problem is identified.

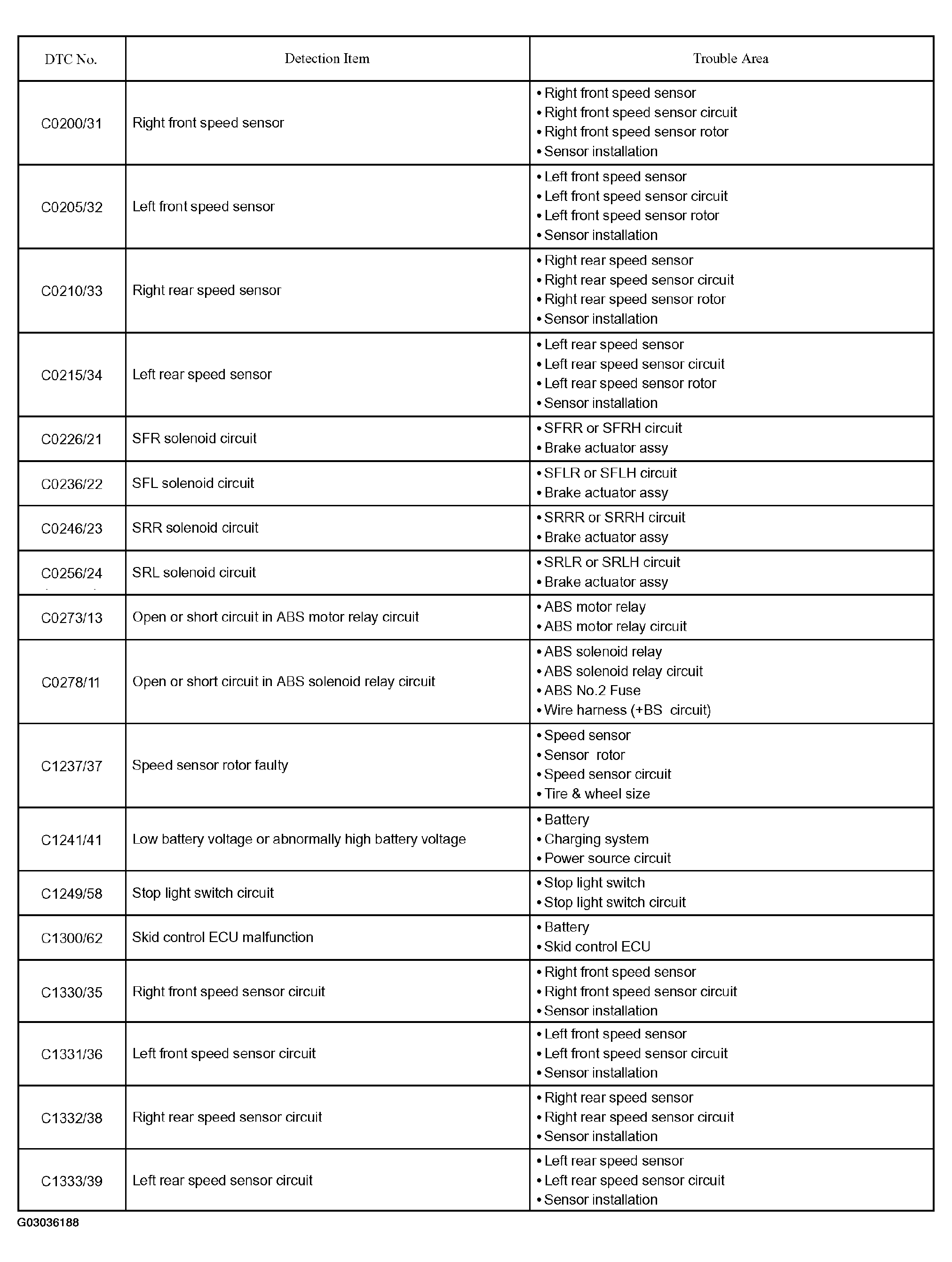

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0200/31, C0205/32, C1330/35, C1331/36 | RIGHT/LEFT FRONT SPEED SENSOR & RIGHT/LEFT FRONT SPEED SENSOR CIRCUIT |
| DTC C0210/33, C0215/34, C1332/38, C1333/39 | RIGHT/LEFT REAR SPEED SENSOR & RIGHT/LEFT REAR SPEED SENSOR CIRCUIT |
| DTC C0226/21, C0236/22, C0246/23, C0256/24 | SFR/SFL/SRR/SRL SOLENOID CIRCUIT |
| DTC C0273/13 | OPEN OR SHORT CIRCUIT IN ABS MOTOR RELAY CIRCUIT |
| DTC C0278/11 | OPEN OR SHORT CIRCUIT IN ABS SOLENOID RELAY |
| DTC C1237/37 | SPEED SENSOR ROTOR FAULTY |
| DTC C1241/41 | LOW BATTERY POSITIVE VOLTAGE |
| DTC C1249/58 | STOP LIGHT SWITCH CIRCUIT |
| DTC C1300/62 | SKID CONTROL ECU MALFUNCTION |
