Window Glass (Antenna Wire): Repair

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT WINDOW GLASS (ANTENNA WIRE)
NOTE: When cleaning the glass, use a soft, dry cloth, and wiper the glass in the direction of the wire. Take care not to damage the wires. Do not use detergents or glass cleaners with abrasive ingredients. When measuring voltage, wind a piece of tin foil around the top of the negative probe and press the foil against the wire with your finger, as shown in the illustration.

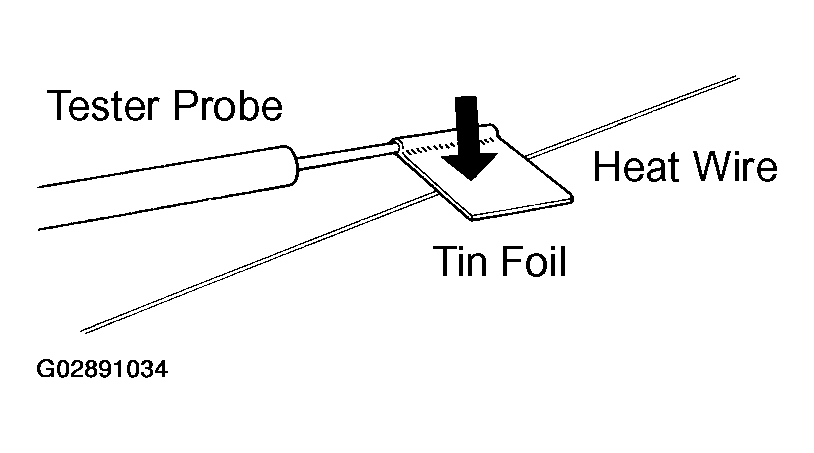

Fig 1: Inspecting Window Glass (Antenna Wire)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Inspect the continuity, at the center of each antenna wire, as shown in the illustration.

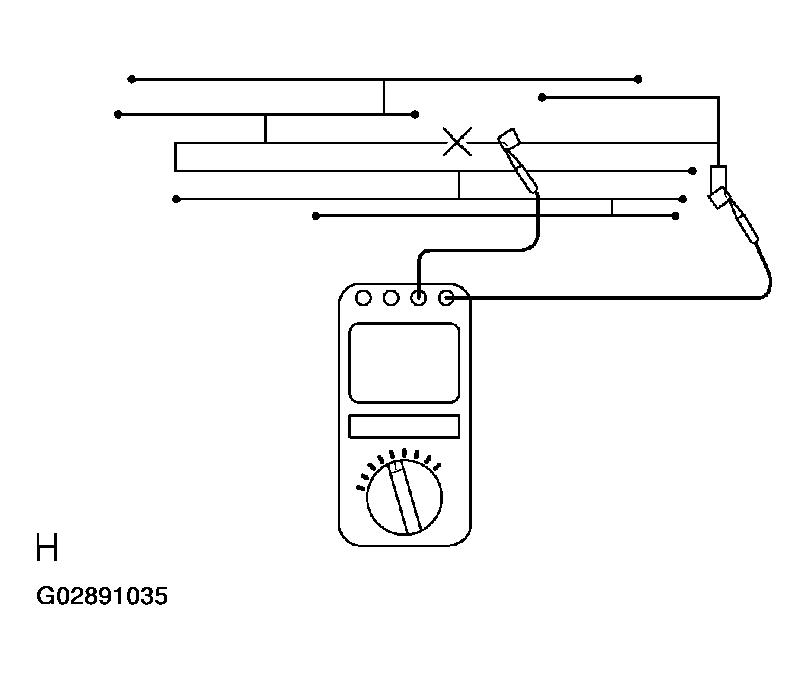

  Fig 2: Checking Continuity
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPAIR WINDOW GLASS (ANTENNA WIRE)
1. Clean the broken wire tips with a grease, wax and silicone remover.
2. Place the masking tape along both sides of the wire to be repaired.
3. Thoroughly mix the repair agent (DuPont paste No. 4817).

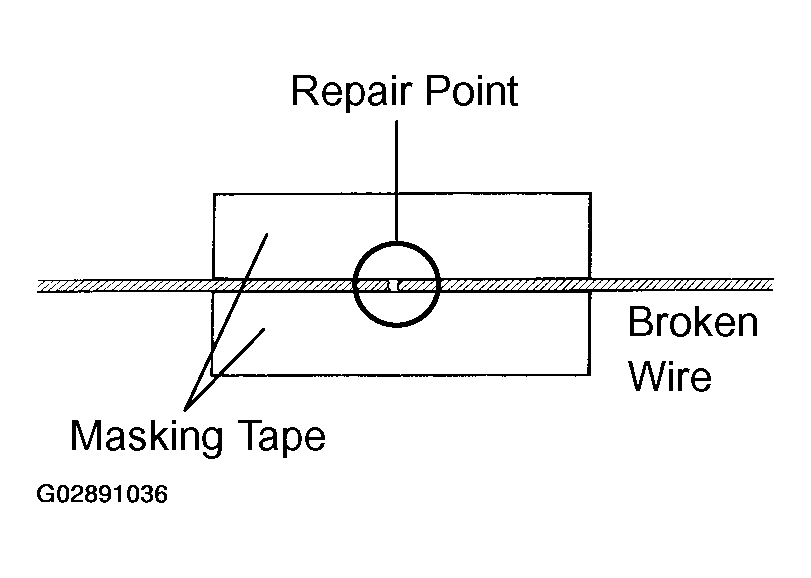

  Fig 3: Placing Masking Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a fine tip brush, apply a small amount to the wire.
5. After a few minutes, remove the masking tape.
6. Do not repair the defogger wire for at least 24 hours.

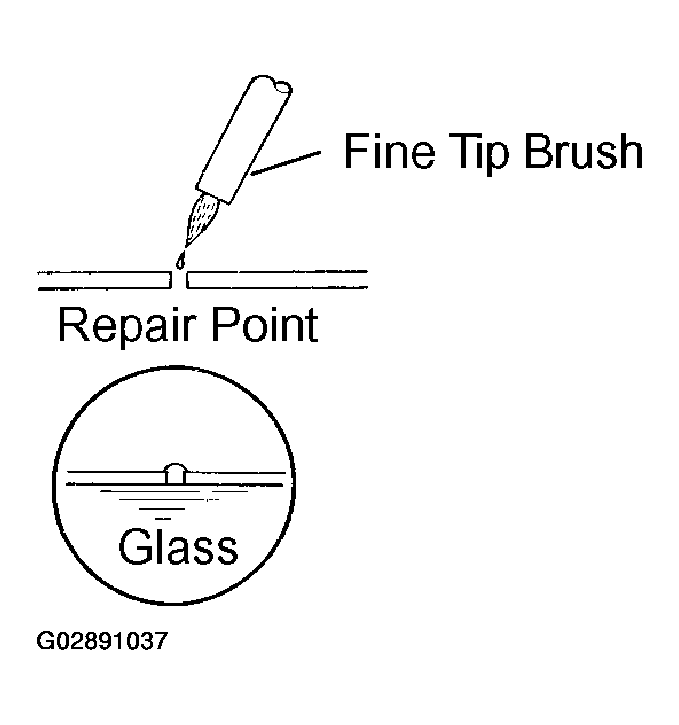

  Fig 4: Applying Small Amount To Wire Using Fine Tip Brush
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
