Rear Speaker ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE REAR SEAT CUSHION ASSY (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
2. REMOVE REAR SEAT BACK ASSY RH (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
3. REMOVE REAR SEAT BACK ASSY LH (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
4. REMOVE REAR SIDE SEAT BACK ASSY RH (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
5. REMOVE REAR SIDE SEAT BACK ASSY LH (See  REAR SEAT ASSEMBLY (FROM JULY, 2003)  )
6. REMOVE ROOF SIDE GARNISH INNER RH (W/O CURTAIN SHIELD AIR BAG) (See  REPLACEMENT  )
7. REMOVE ROOF SIDE GARNISH INNER LH (W/O CURTAIN SHIELD AIR BAG) (See  REPLACEMENT  )
8. REMOVE ROOF SIDE GARNISH INNER RH (W/ CURTAIN SHIELD AIR BAG) (See  REPLACEMENT  )
9. REMOVE ROOF SIDE GARNISH INNER LH (W/ CURTAIN SHIELD AIR BAG) (See  REPLACEMENT  )
10. REMOVE CENTER STOP LAMP ASSY (See  REPLACEMENT  )
11. REMOVE REAR SEAT SHOULDER BELT COVER RH (See  REPLACEMENT (TMC MADE)  OR  REPLACEMENT (TMMK MADE)  )
12. REMOVE ROOM PARTITION BOARD ASSY (TMMK MADE) (See  REPLACEMENT (TMMK MADE)  )
13. REMOVE PACKAGE TRAY TRIM PANEL ASSY (TMC MADE) (See  REPLACEMENT (TMC MADE)  )
14. REMOVE PACKAGE TRAY TRIM PANEL ASSY (TMMK MADE) (See  REPLACEMENT (TMMK MADE)  )

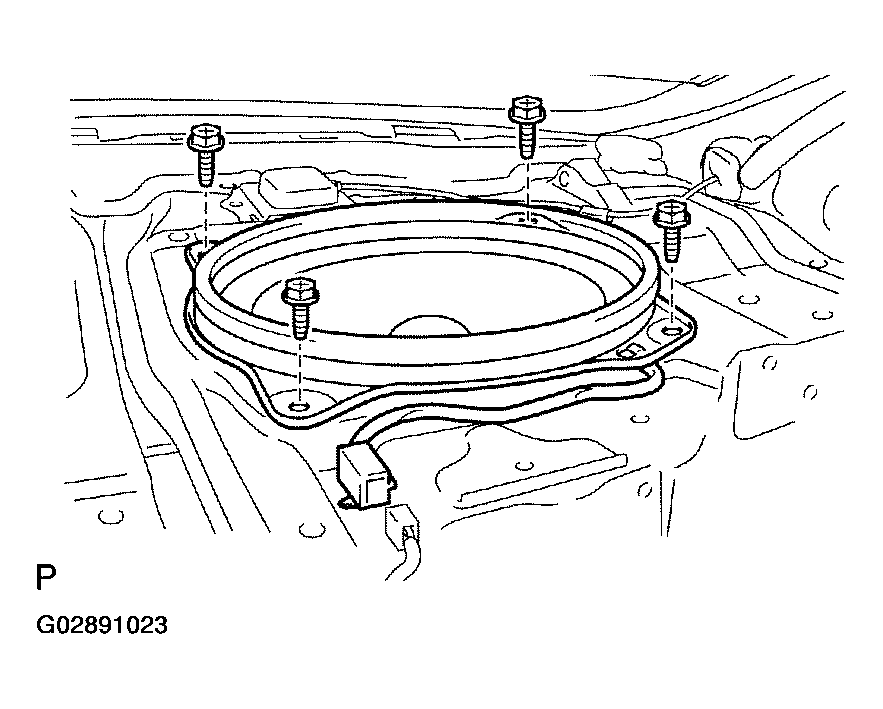

15. REMOVE REAR SPEAKER ASSY
    1. Disconnect the connector.
    2. Remove the 4 screws and rear speaker assy.
       Fig 1: Removing Rear Speaker Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

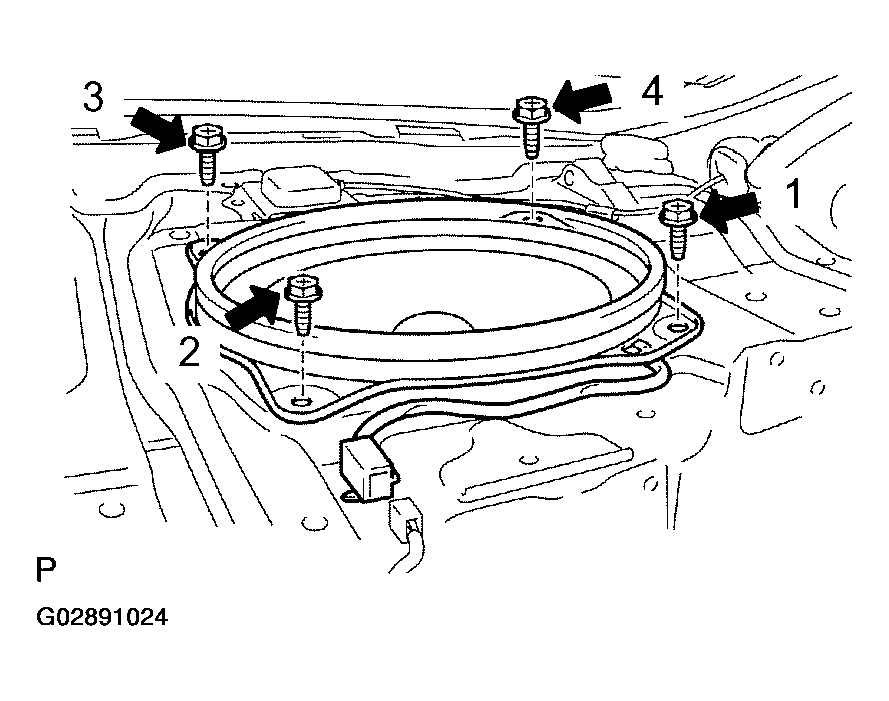

16. INSTALL REAR SPEAKER ASSY
    1. Install the rear speaker assy with the 4 screws.
       NOTE: Install them in the order shown in the illustration.
    2. Connect the connector.
       Fig 2: Installing Rear Speaker Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL REAR SIDE SEAT BACK ASSY LH (See  OVERHAUL  )
18. INSTALL REAR SIDE SEAT BACK ASSY RH (See  OVERHAUL  )
19. INSTALL REAR SEAT BACK ASSY RH (See  OVERHAUL  )
20. INSTALL REAR SEAT BACK ASSY LH (See  OVERHAUL  )
