Section 629 (Combination Meter - Diagnostics): Location

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

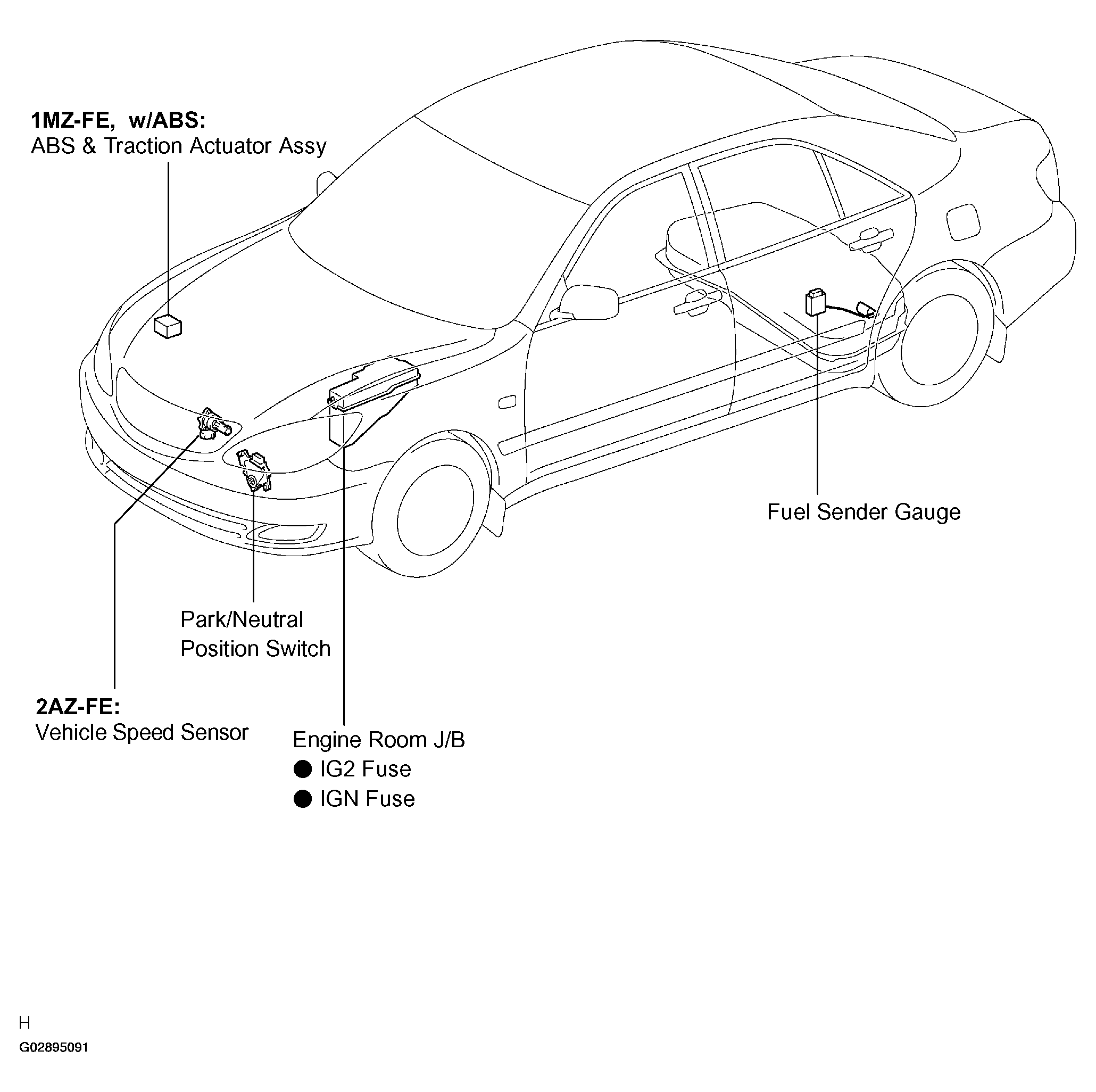

Fig 1: Identifying Combination Meter Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

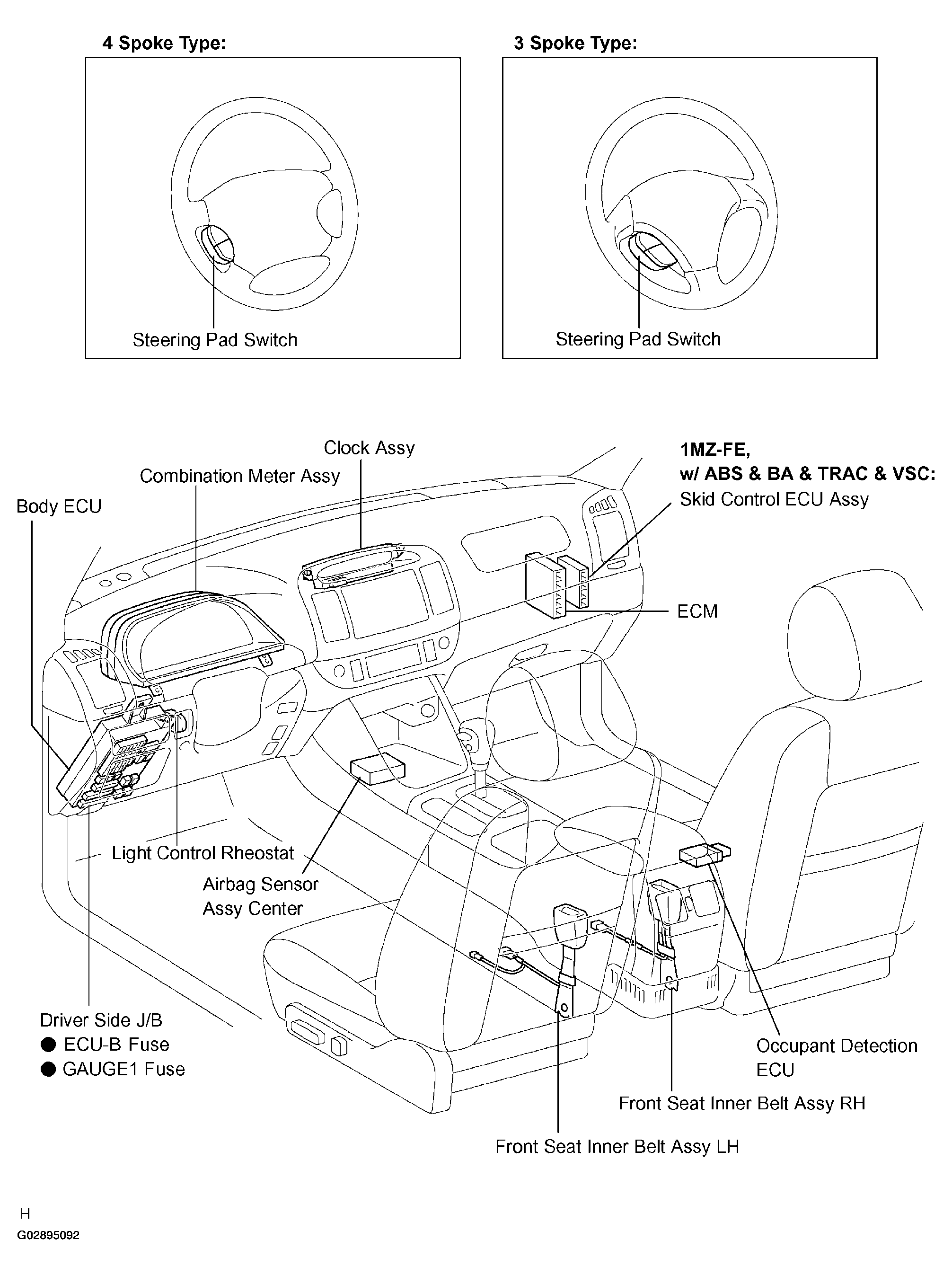

Fig 2: Identifying Combination Meter Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

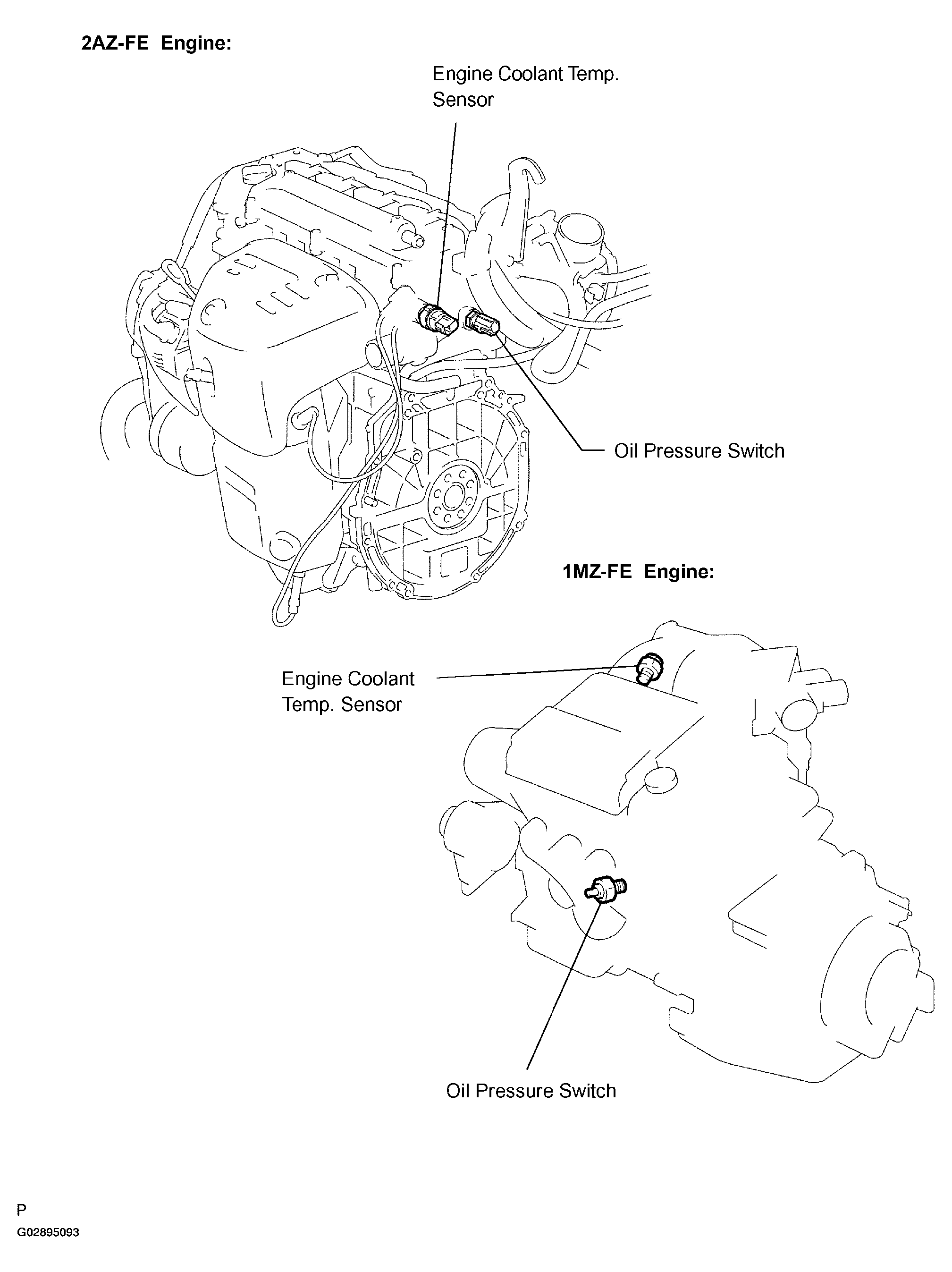

Fig 3: Identifying Engine Coolant Temperature Sensor & Oil Pressure Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

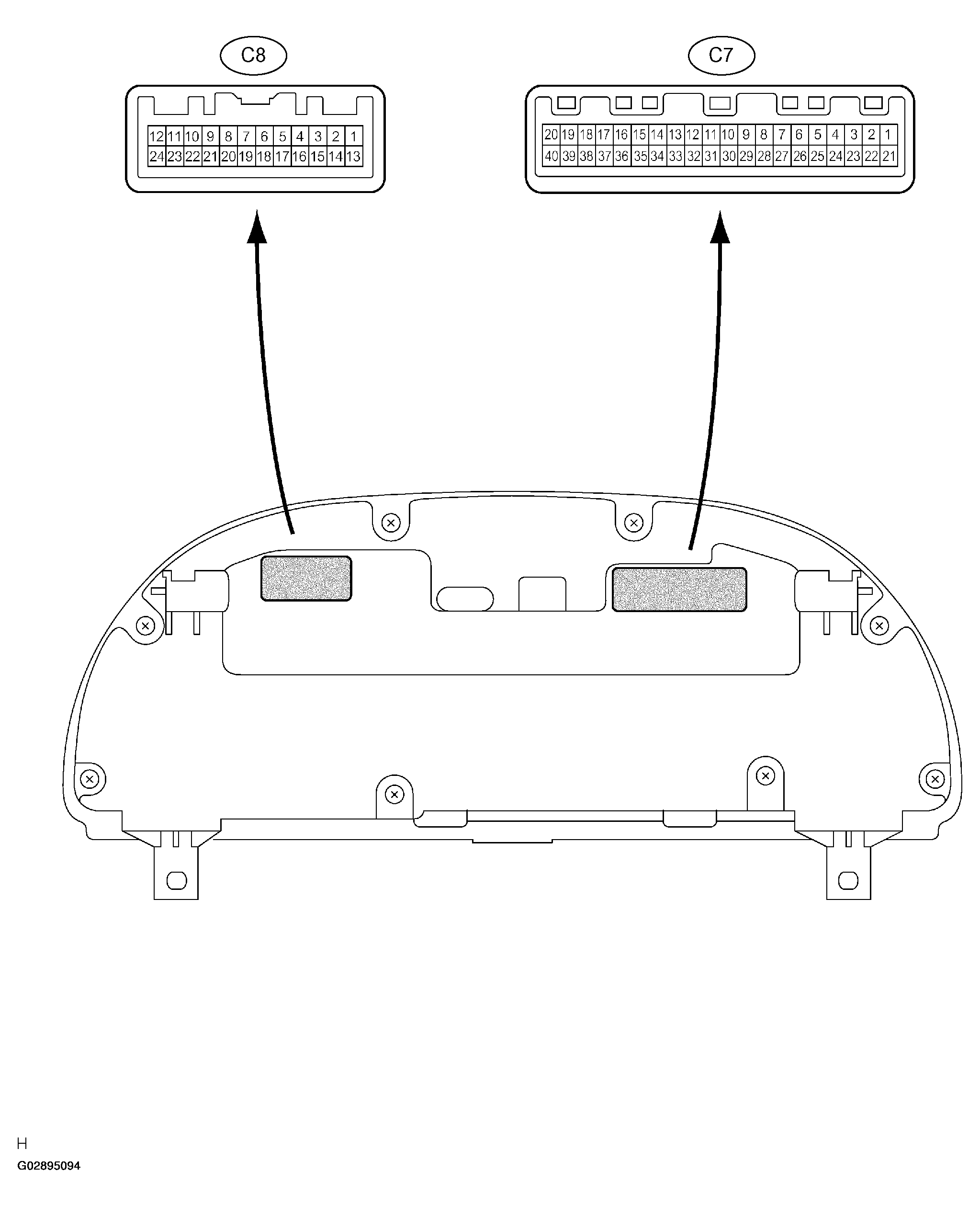

Fig 4: Identifying Connector Terminals

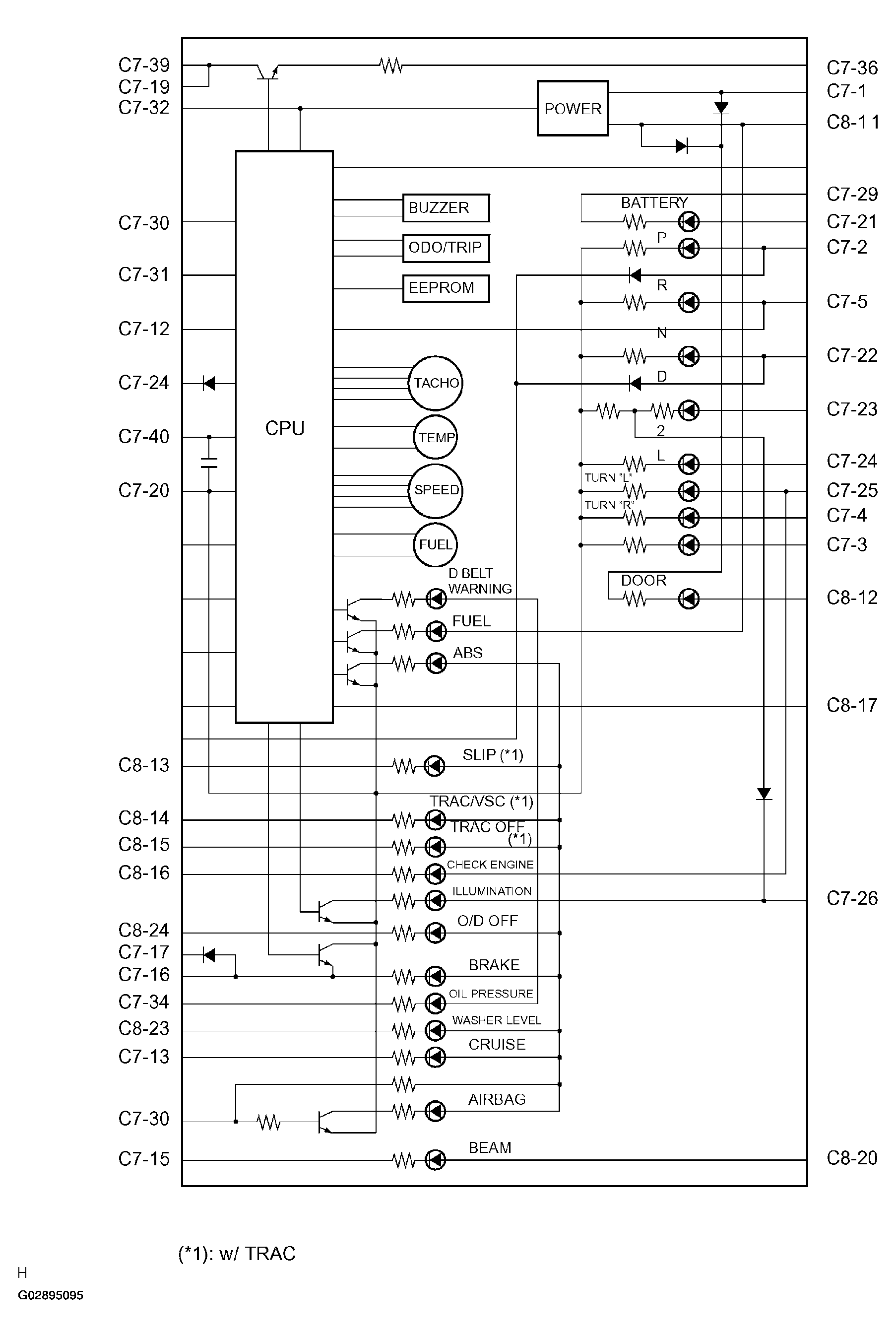

Fig 5: Identifying Wiring Diagram

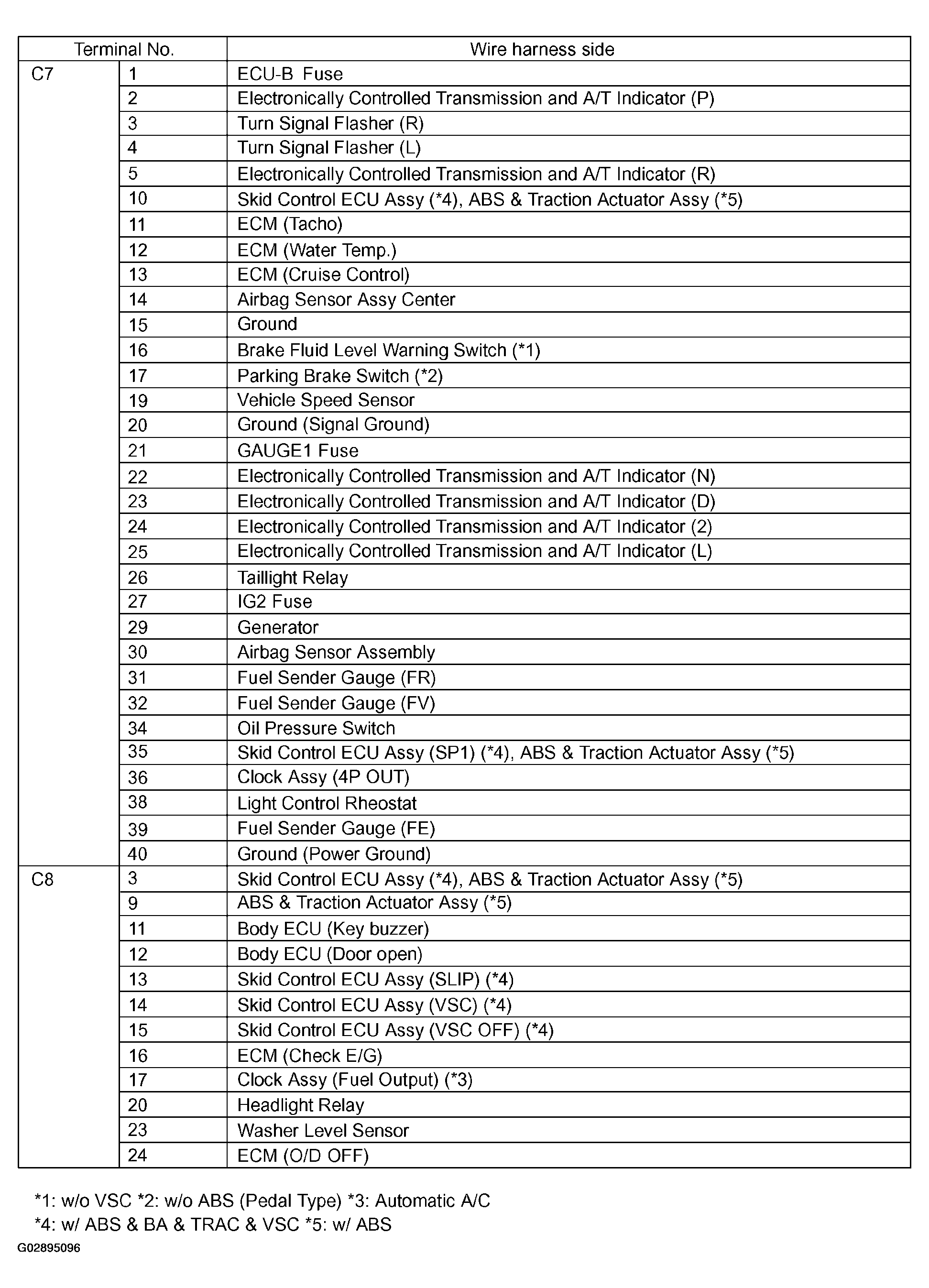

Fig 6: Terminal Wire Harness Table
