Section 592 (Cooling Unit): Removal

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
    NOTE: At the time of installation, please refer to the following item. Evacuate air from refrigeration system. Charge system with refrigerant and inspect for leakage of refrigerant.

    Specified amount:

    Single A/C: 750 +/- 50 g (26.45 +/- 1.76 oz.)

    Dual A/C: 1050 +/- 50 g (37.03 +/- 1.76 oz.)

  2. DISCONNECT LIQUID AND SUCTION TUBE
    1. Using SST, remove the 2 piping clamps.

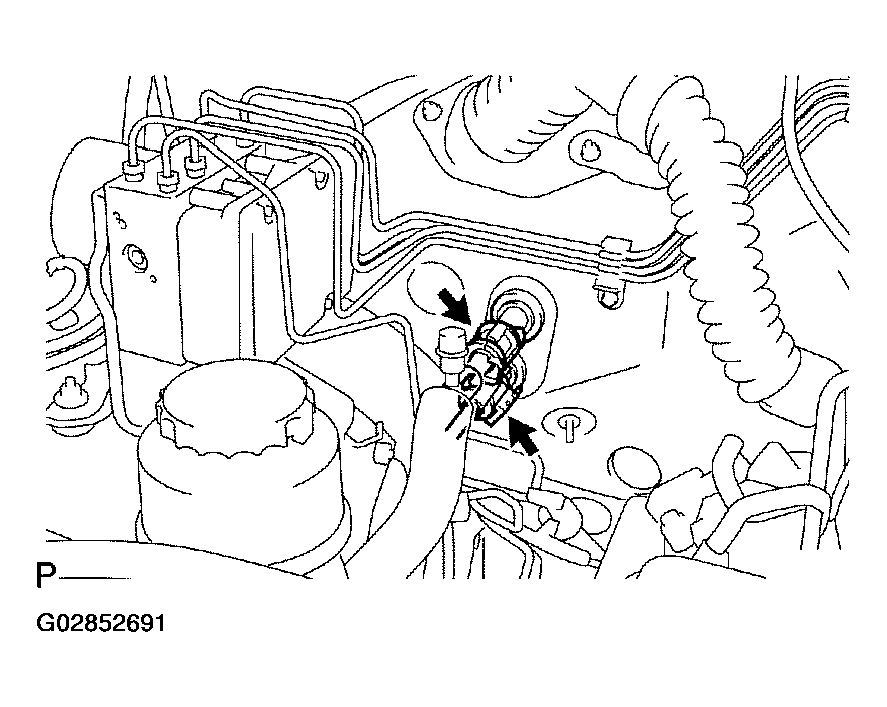

      Fig 1: Removing Piping Clamps Using SST
      G02852691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09870-00015 (Suction tube)

      09870-00025 (Liquid tube)

      1. (1) Insert SST to piping clamp.
        Fig 2: Installing SST
        G02852692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: Confirm the direction of the piping clamp claw and SST using the illustration showing on the caution label.
      2. (2) Push down SST and release the clamp lock.
        NOTE: Be careful not to deform the tubes, when pushing SST.
      3. (3) Pull SST slightly and push the release lever, then remove the piping clamp with SST.

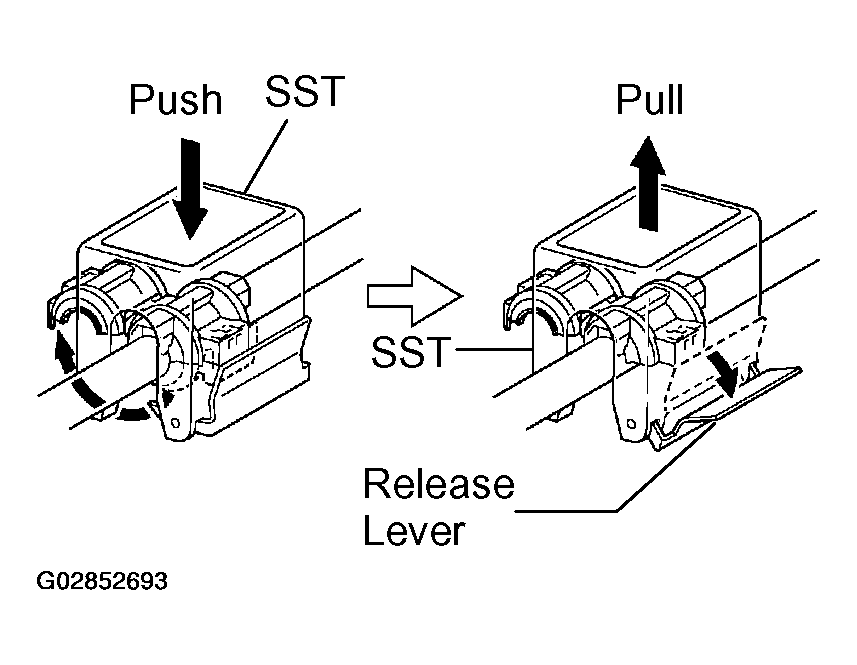

        4. Fig 3: Releasing Lever
        G02852693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. (4) Remove the piping clamp from SST.
    2. Disconnect the both tubes.
      NOTE:
      • Do not use tools like screwdriver to remove the tube.
      • Cap the open fittings immediately to keep moisture or dirt out of the system.
        Fig 4: Identifying Improper Method Of Removing Tube
        G02852694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: At the time of reassembly, please refer to the following item.
      • Lubricate 4 new O-rings with compressor oil and install them to the tubes.
      • After connection, check the fitting for claw of the piping clamp.
        • Fig 5: Checking Fitting For Claw Of Piping Clamp
        G02852695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CONSOLE UPPER PANEL
  4. REMOVE REAR CONSOLE BOX
  5. REMOVE FRONT CONSOLE BOX
  6. REMOVE GLOVE COMPARTMENT PARTS
  7. REMOVE LOWER NO. 2 FINISH PANEL
  8. REMOVE LOWER LH FINISH PANEL
  9. REMOVE LOWER COVER (See  REMOVAL  )
  10. REMOVE NO. 4 HEATER TO REGISTER DUCT
  11. REMOVE COOLING UNIT

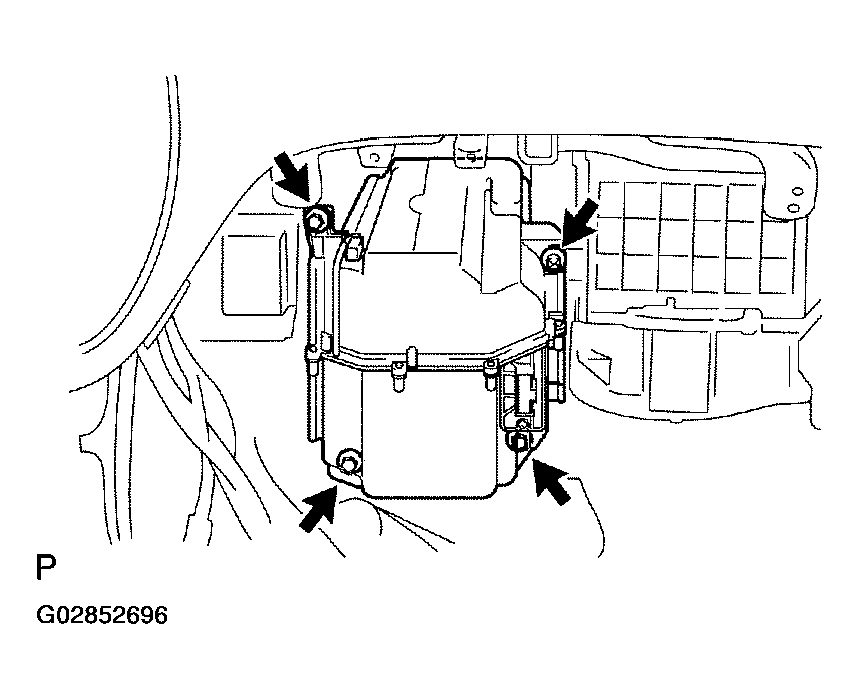

    Fig 6: Removing Cooling Unit
    G02852696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connectors.
    2. Remove the 3 screws and a bolt, then the cooling unit.
