Install Drive Belt

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Turn the drive belt tensioner counterclockwise then install the drive belt.

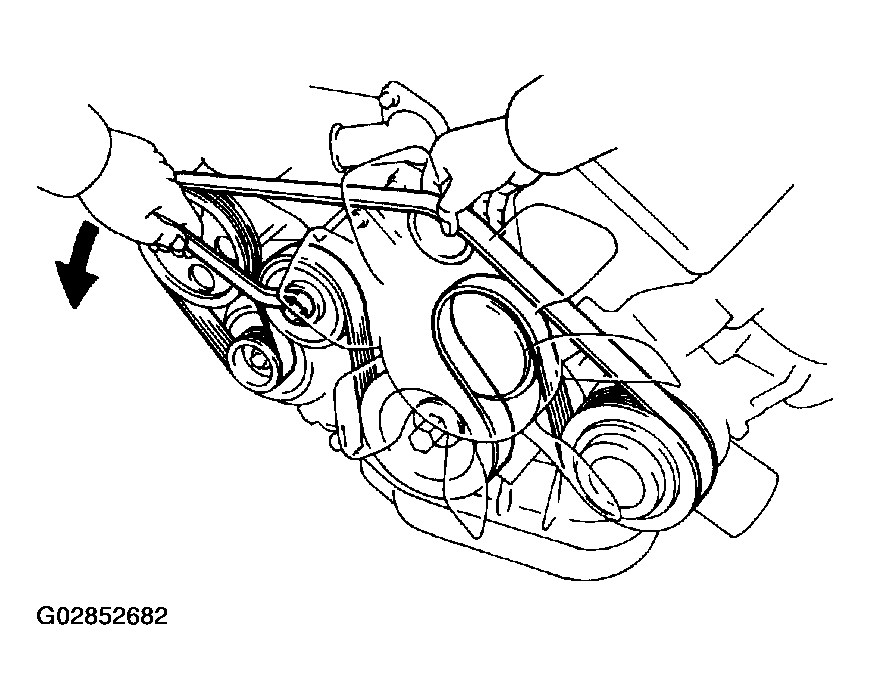

Fig 1: Installing Drive Belt
G02852682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
