Inspection Procedure
- Read value of TOYOTA hand-held tester.
PREPARATION:
- Connect the TOYOTA hand-held tester to the DLC3.
- Turn the ignition switch ON and push the TOYOTA hand-held tester main SW ON.
CHECK:
Select the item "A/C SIG" in the DATA LIST and read its value displayed on the TOYOTA hand-held tester.
OK:
NOTE: Check with the engine running.- NG : Go to step 6 .
- OK : Go To Next Step.
- Check magnetic clutch relay.
PREPARATION:
Remove magnetic clutch relay from engine room J/B.
CHECK:
Check continuity between each pair of terminals shown below of magnetic clutch relay.
OK:
TESTER CONNECTION SPECIFIED CONDITIONTester connection Specified condition 1 - 2 62.5 - 90.9 Ω 3 - 5 No Continuity PREPARATION:
Apply battery positive (+) voltage between terminals 1 and 2.
CHECK:
Check continuity between terminals 3 and 5.
OK:
- Continuity exists.
- NG : Replace magnetic clutch relay.
- OK : Go To Next Step.
- Read value of TOYOTA hand-held tester.
PREPARATION:
- Connect the TOYOTA hand-held tester to the DLC3.
- Turn the ignition switch ON and push the TOYOTA hand-held tester main SW ON.
CHECK:
Select the item "A/C MAG CLUTCH" in the DATA LIST and read its value displayed on the TOYOTA hand-held tester.
OK:
NOTE: Check with the engine running.- NG : Repair or replace harness or connector.
- OK : Go To Next Step.
- Check A/C magnetic clutch.
PREPARATION:
Disconnect magnetic clutch connector.
CHECK:

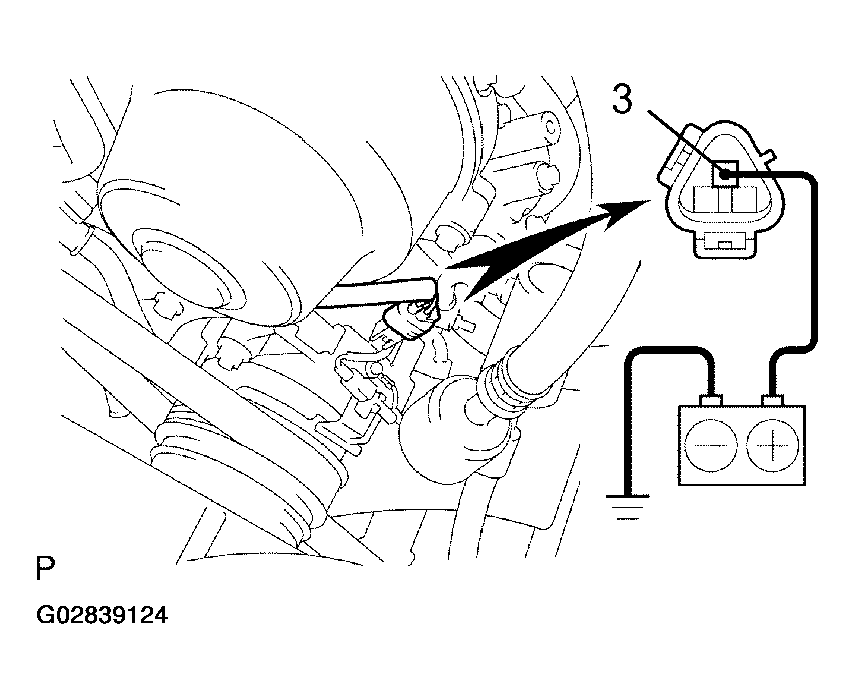

Connect positive (+) lead connected to battery to magnetic clutch connector terminal 3.
OK:
- Magnetic clutch is energized.
- NG : Repair A/C magnetic clutch.
- OK : Go To Next Step.
- Check harness and connector between magnetic clutch and battery (See
HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE
).
- NG : Repair or replace harness or connector.
- OK : Proceed to next circuit inspection shown in PROBLEM SYMPTOMS TABLE .
- Check voltage between terminal AC1, A/CS of integration control and panel connector and body ground.
PREPARATION:
- Remove integration control and panel with connector still connected.
- Start the engine and push AUTO switch.
CHECK:

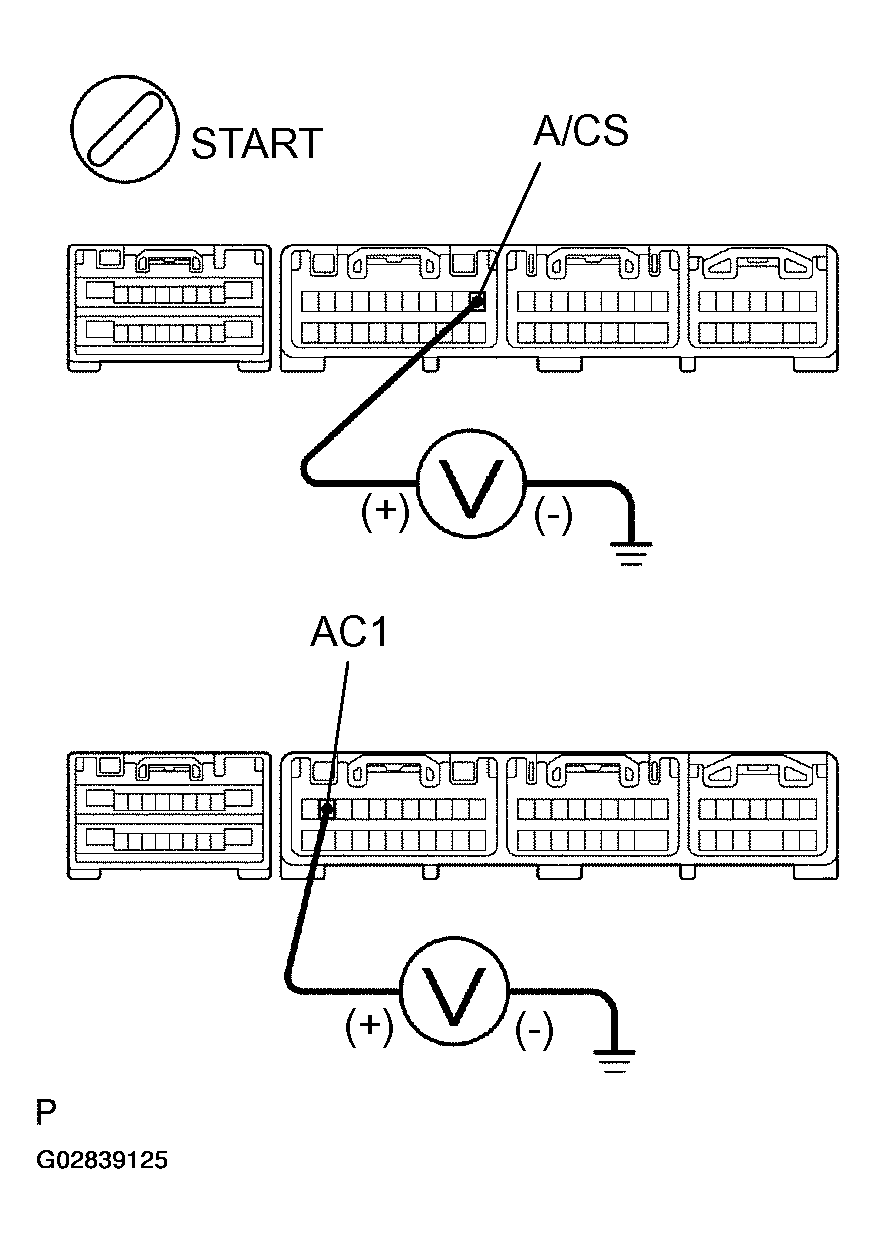

Check the voltage between terminal A/CS, AC1 of integration control and panel connector and body ground when magnetic clutch is ON and OFF by A/C switch.
OK:
SWITCH OPERATION SPECIFIED CONDITIONSwitch Operation Tester Connection Specified Condition ON AC1 - Body Ground 1.3 - 2.6 V OFF AC1 - Body Ground 3.7 - 4.5 V ON A/CS - Body Ground 10 - 14 V OFF A/CS - Body Ground Below 1.0 V Fig 5: Checking Voltage Between Terminal A/CS, AC1 Of Integration Control And Panel Connector And Body GroundCourtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG : Check and replace integration control and panel.
- OK : Repair or replace harness or connector.
