Condenser Fan: Disassembly

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FANS
    1. Remove the nut and fan.
    2. Remove the 2 fans.

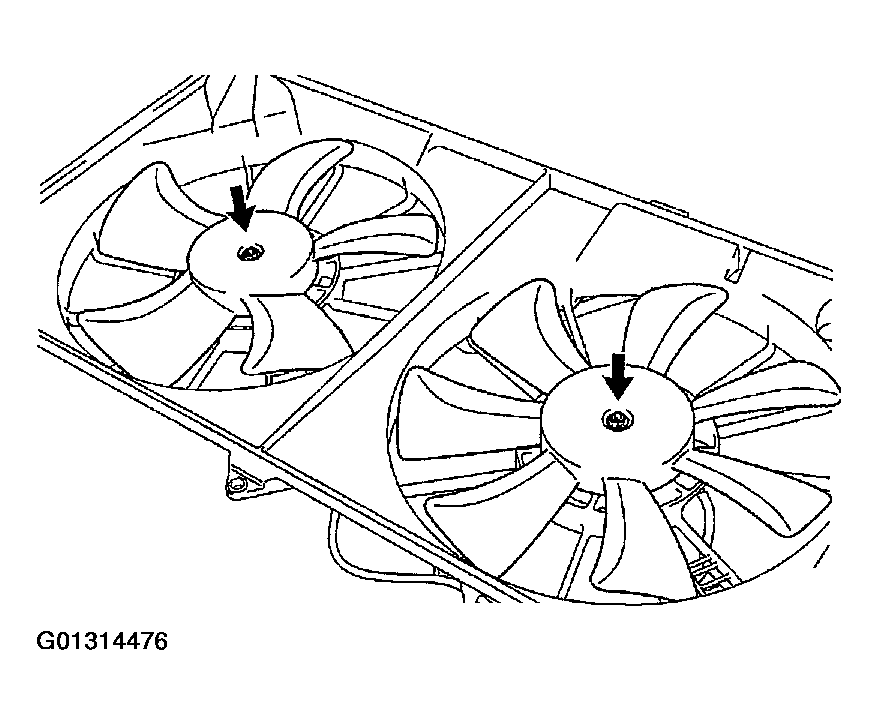

    Fig 1: Removing Nut And Fan
    G01314476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FAN MOTORS
    1. Disconnect the wires and connector holders from the fan shroud.
    2. Remove the 3 screws and fan motor.
    3. Remove the 2 fan motors.

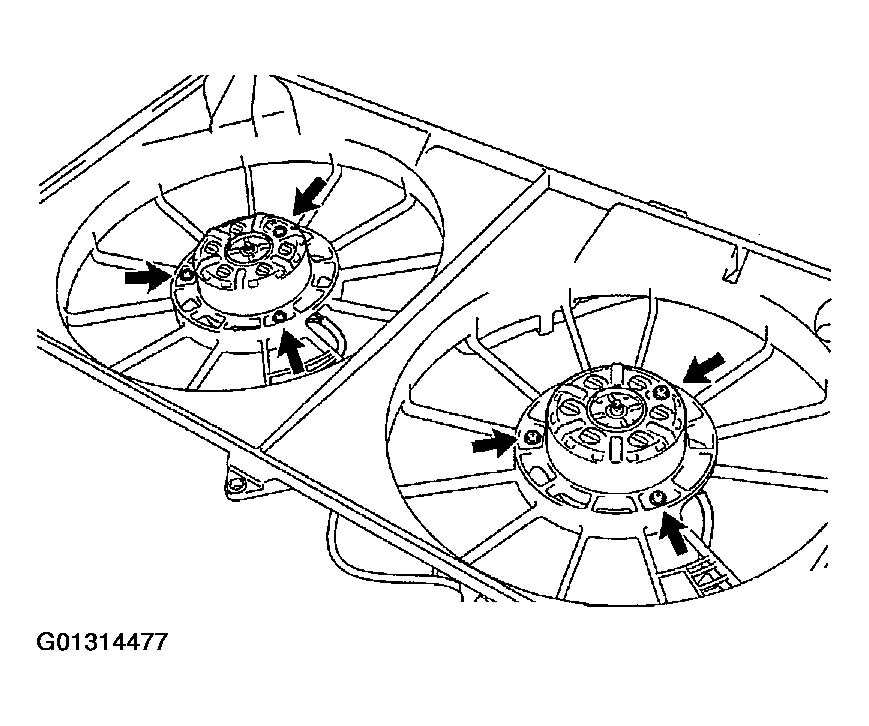

    Fig 2: Removing Fan Motors
    G01314477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
