Compressor And Magnetic Clutch: Components

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

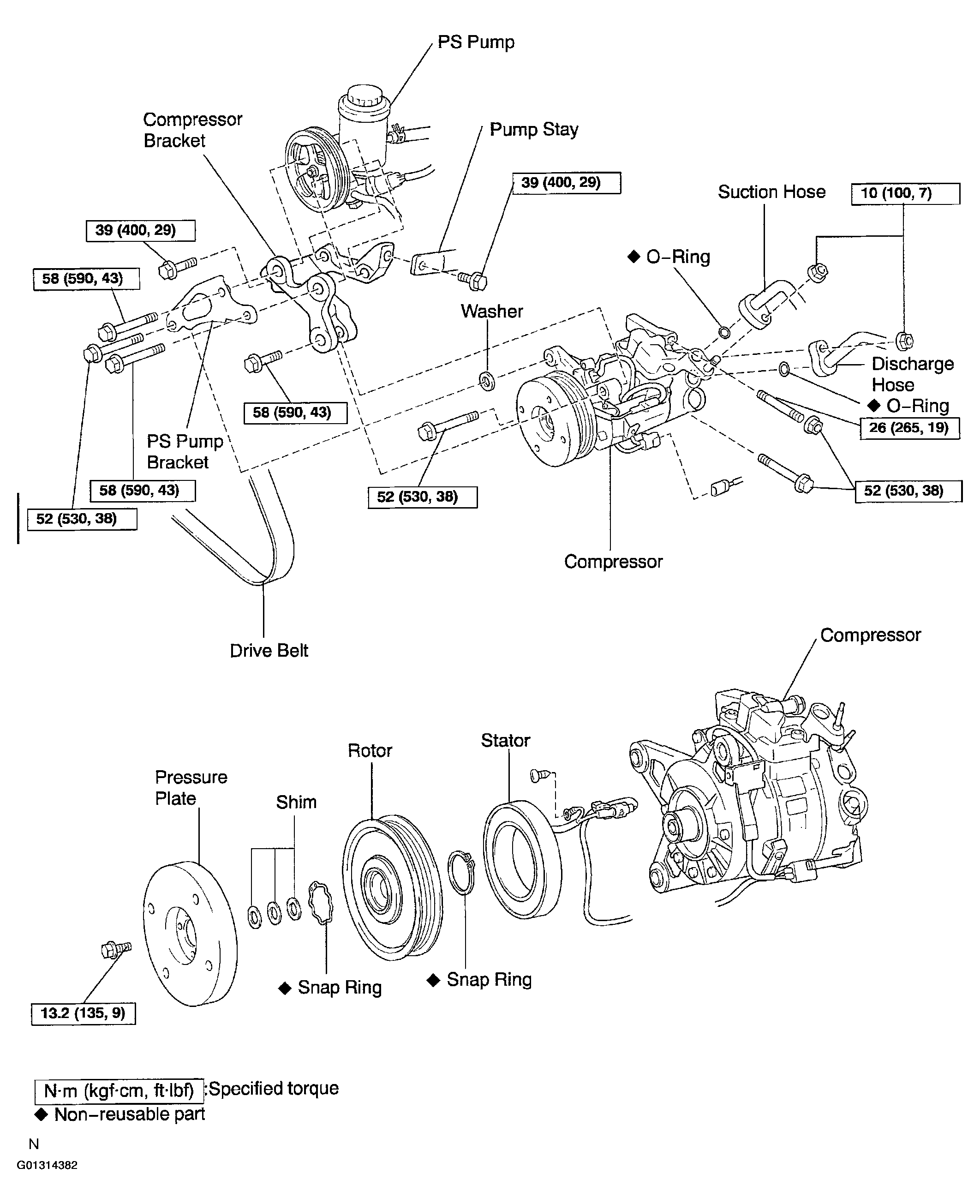

Fig 1: Exploded View Of Compressor And Magnetic Clutch Components
G01314382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
