Section 503 (Engine Cooling System): Radiator: Removal

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT
  2. REMOVE RADIATOR GRILLE

    Remove the 4 screws, 2 clips and radiator grille.

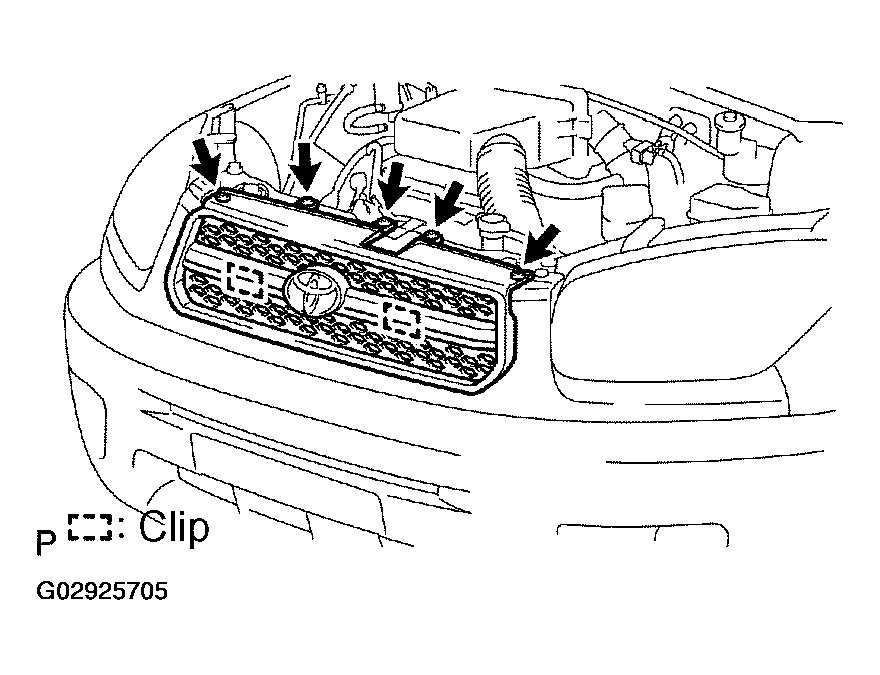

    Fig 1: Removing Radiator Grille
    G02925705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT END PANEL

    Remove the 4 screws and front end panel.

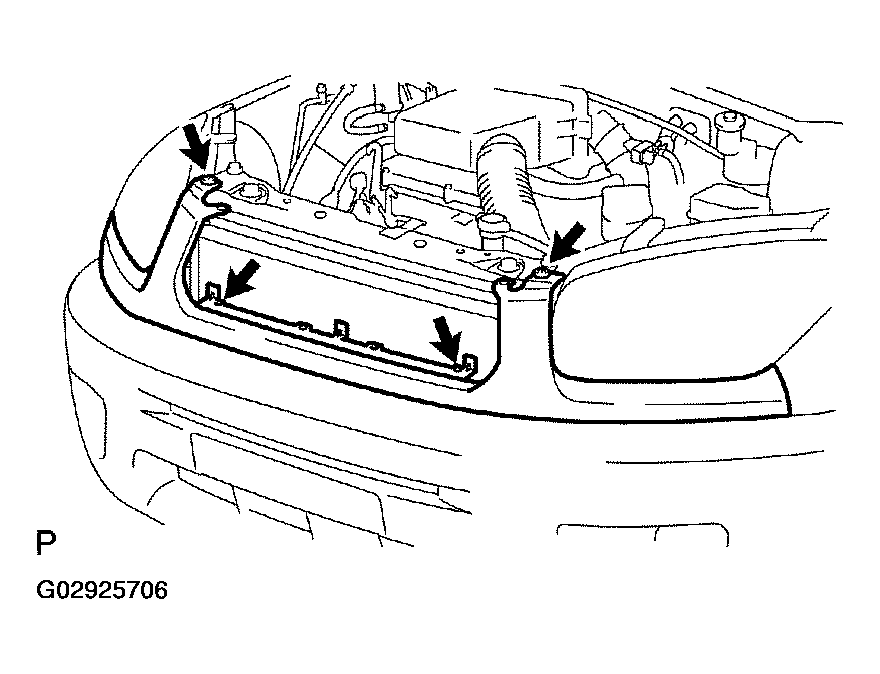

    Fig 2: Removing Front End Panel
    G02925706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT HOOD LOCK
    1. Remove the 3 bolts, and disconnect the hood lock.
    2. Disconnect the wire from the clamp.

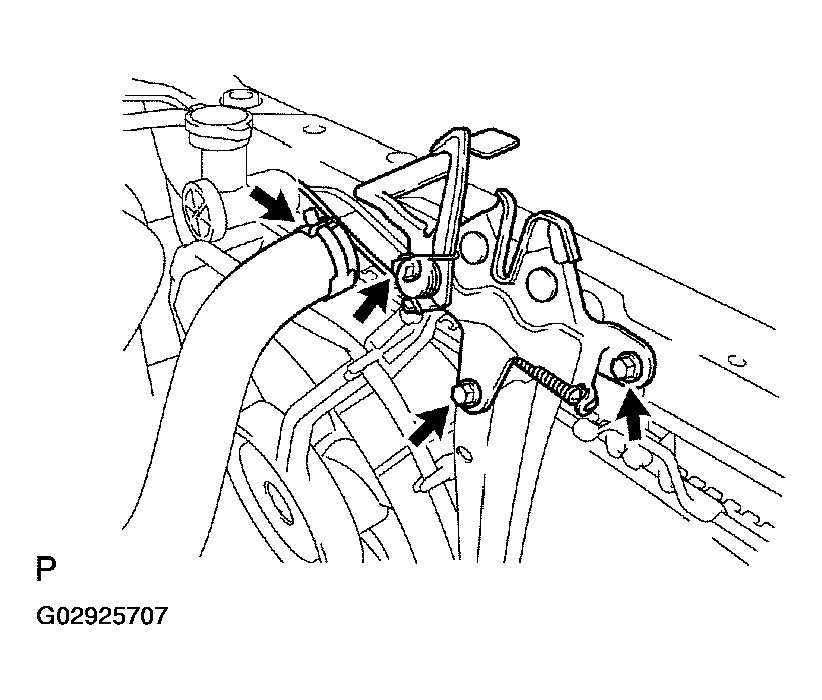

      3. Fig 3: Disconnecting Hood Lock
      G02925707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT UPPER RADIATOR HOSE
  6. REMOVE UPPER RADIATOR SUPPORT

    Remove the 5 bolts and radiator support.

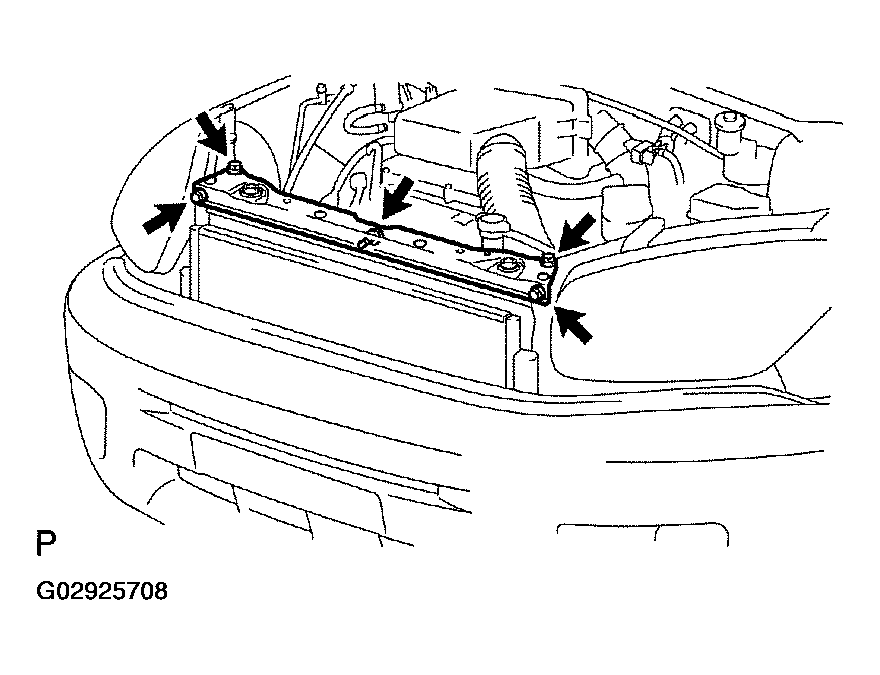

    Fig 4: Removing Upper Radiator Support
    G02925708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LH ENGINE UNDER COVER
  8. REMOVE RADIATOR RESERVOIR
  9. REMOVE NO. 1 AND NO. 2 COOLING FANS (See  ELECTRIC COOLING FANS  )
  10. A/T: DISCONNECT OIL 2 HOSES

    Disconnect the 2 oil cooler hoses from the radiator.

  11. DISCONNECT LOWER RADIATOR HOSE
  12. REMOVE RADIATOR
  13. REMOVE UPPER AND LOWER RADIATOR SUPPORTS FROM RADIATOR
