Section 464 (Hood): Adjustment

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Since the centering bolt is used as the hood hinge and hood lock set bolt, the hood and hood lock can not be adjusted with it on. Substitute the bolt with a washer for the centering bolt.

Fig 1: Identifying Centering Bolt & Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ADJUST HOOD IN FORWARD/REARWARD AND LEFT/RIGHT DIRECTIONS
Adjust the hood by loosening the hood side hinge bolts.

Torque: 13 N.m (130 kgf.cm, 10 ft.lbf)

Fig 2: Loosening Hood Side Hinge Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ADJUST FRONT EDGE OF HOOD IN VERTICAL DIRECTIONS
Adjust the hood by turning the cushions.

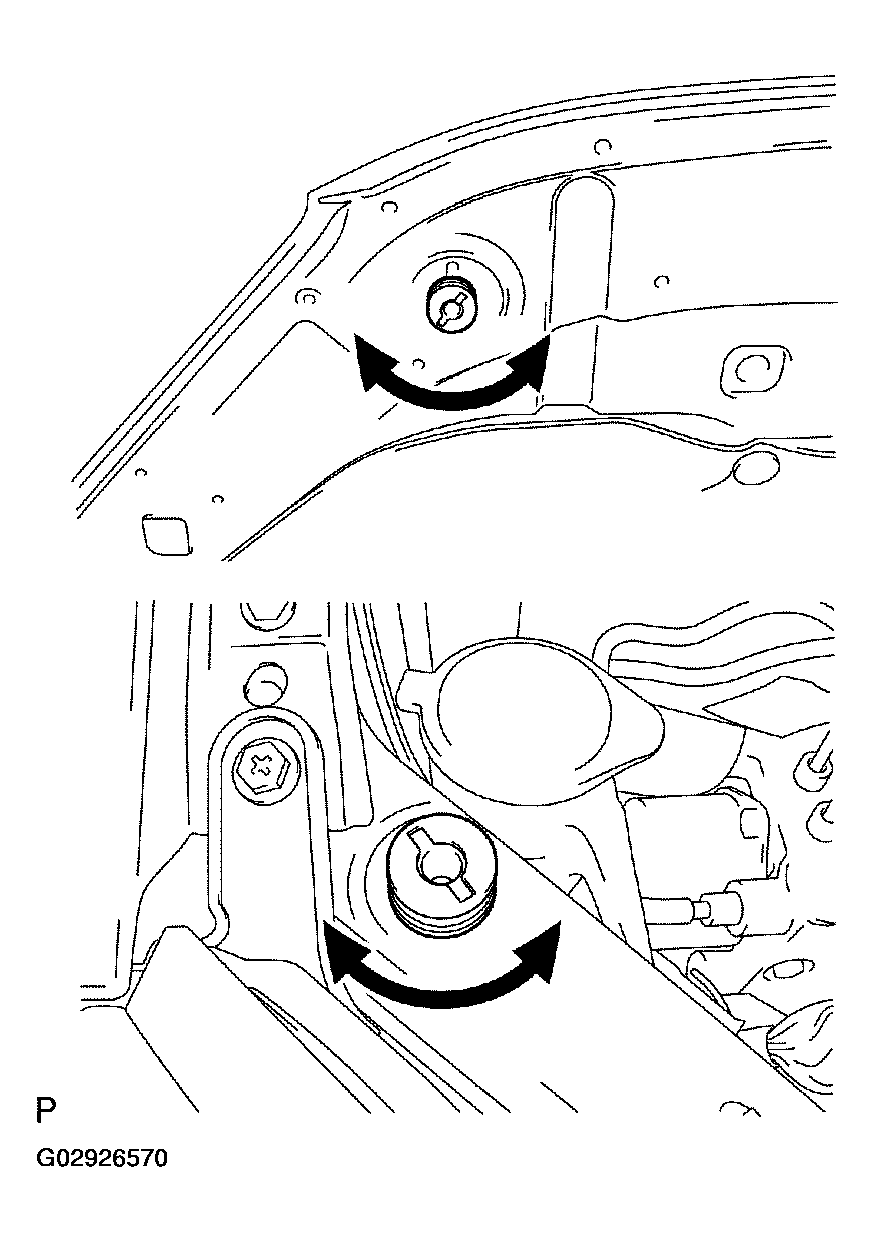

Fig 3: Adjusting Hood by Turning Cushions

ADJUST HOOD LOCK
Adjust the lock by loosening the 3 bolts.

Torque: 8.0 N.m (80 kgf.cm, 70 in.lbf)

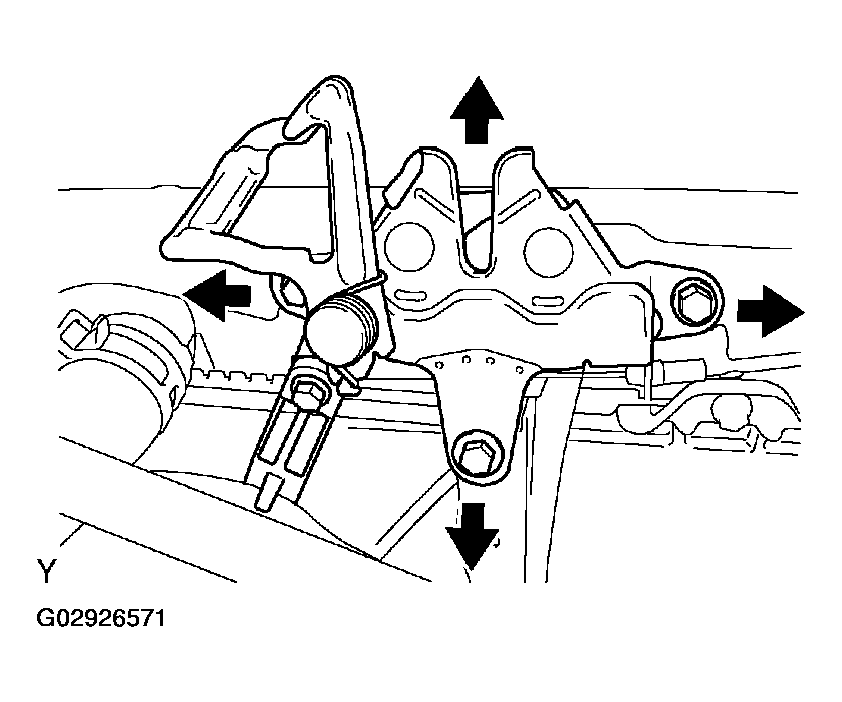

Fig 4: Adjusting Lock by Loosening Bolts
