Replace Dryer From Modulator

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

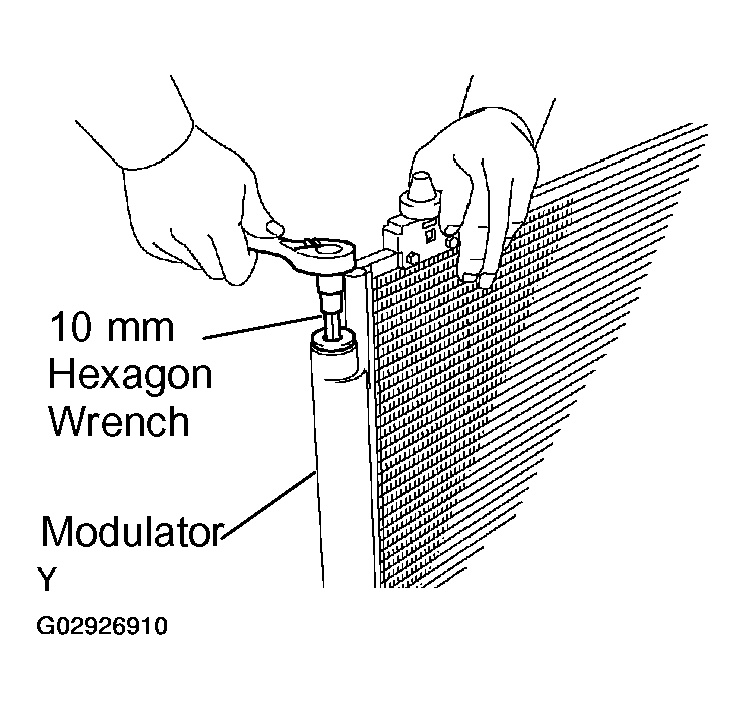

Using a 10 mm hexagon wrench, remove the cap from the modulator.

Fig 1: Removing Cap From Modulator

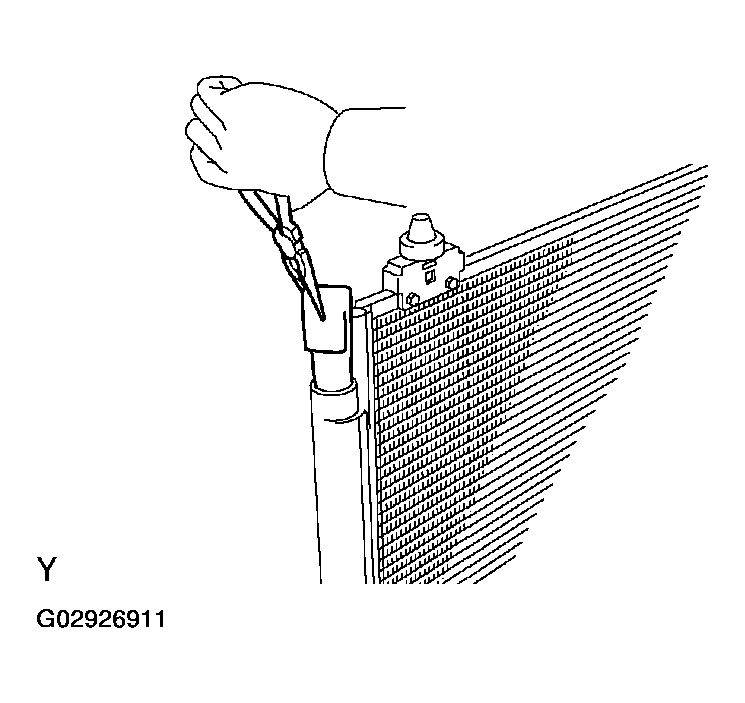

Remove the filter from the modulator.
Insert a new dryer into the modulator.
NOTE:
- Do not remove the dryer from a vinyl bag until inserting it into the modulator.

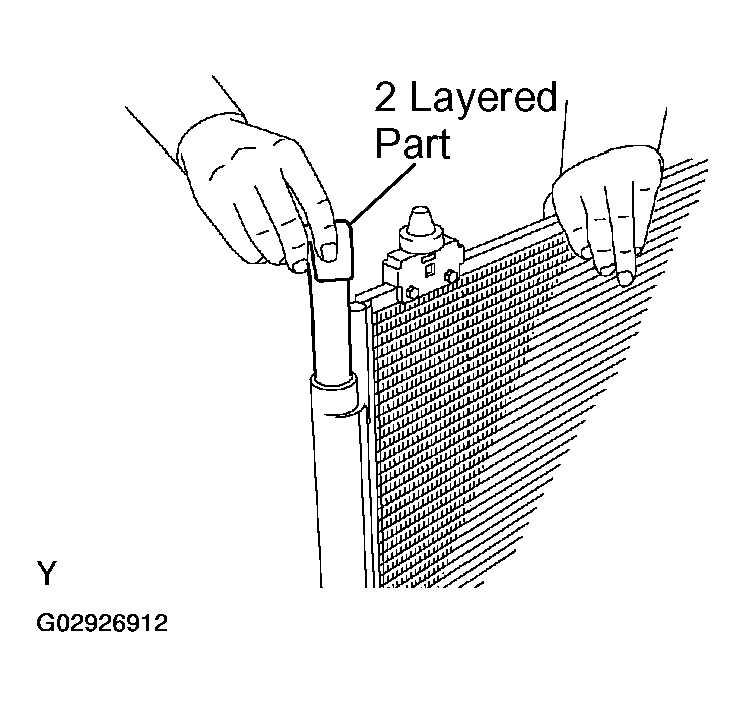

- Install the dryer with its 2 layered parts facing up to the modulator.

  Fig 3: Inserting New Dryer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Insert the filter into the modulator.

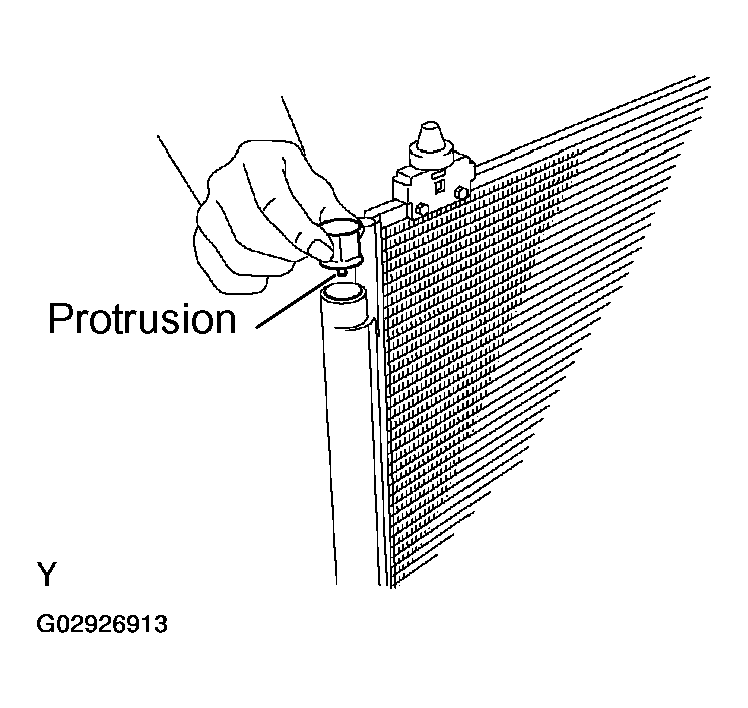

NOTE: Install the filter with its protrusion facing down to the modulator.

Fig 4: Inserting New Filter Into Modulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the cap to the modulator.

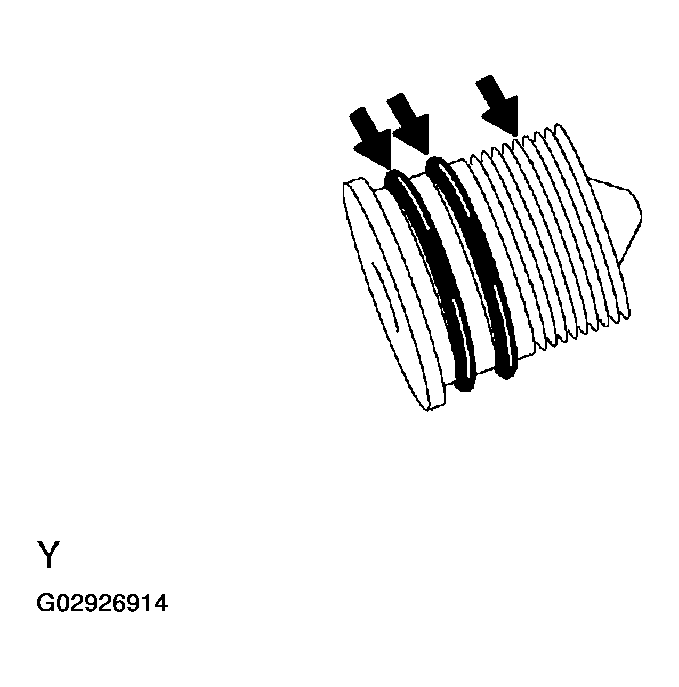

1. Apply compressor oil to the O-rings and screw part of the cap.
  Compressor oil: ND-OIL 8 or equivalent
2. Using a 10 mm hexagon wrench, install the caps.
  Torque: 2.9 N.m (30 kgf.cm, 26 in.lbf)

  Fig 5: Installing Cap To Modulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
