Section 463 (Air Conditioning): Condenser: Removal

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
REMOVE FRONT BUMPER (See COMPONENTS )
REMOVE LIQUID TUBE AND DISCHARGE TUBE
Remove the 2 bolts and both tubes.

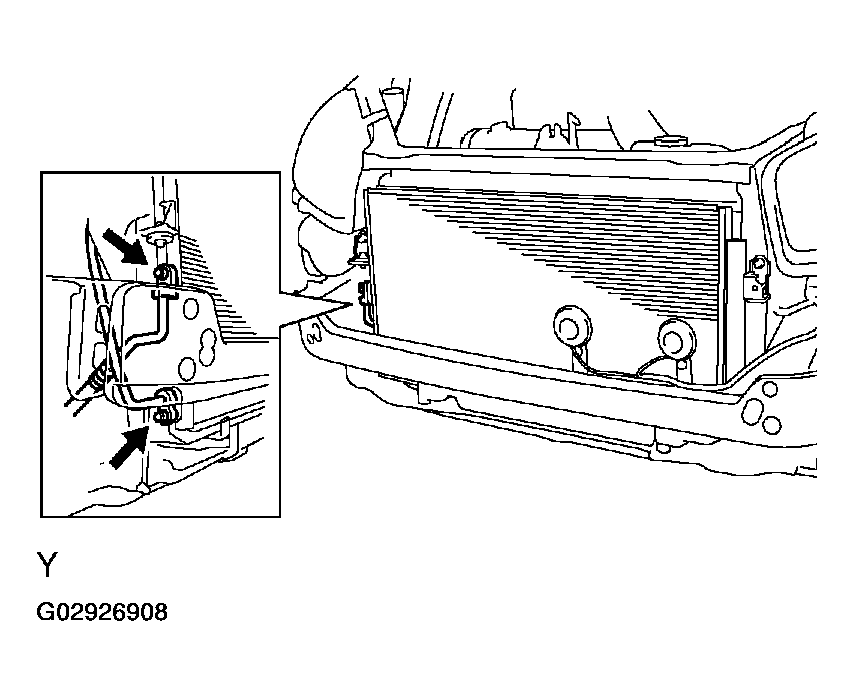

Fig 1: Removing Liquid Tube & Discharge Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Cap the open fittings immediately to keep moisture out of the system.
REMOVE CONDENSER
1. Remove the 2 bolts.
2. Pull up the condenser.
  NOTE: Be careful not to damage the radiator and condenser.

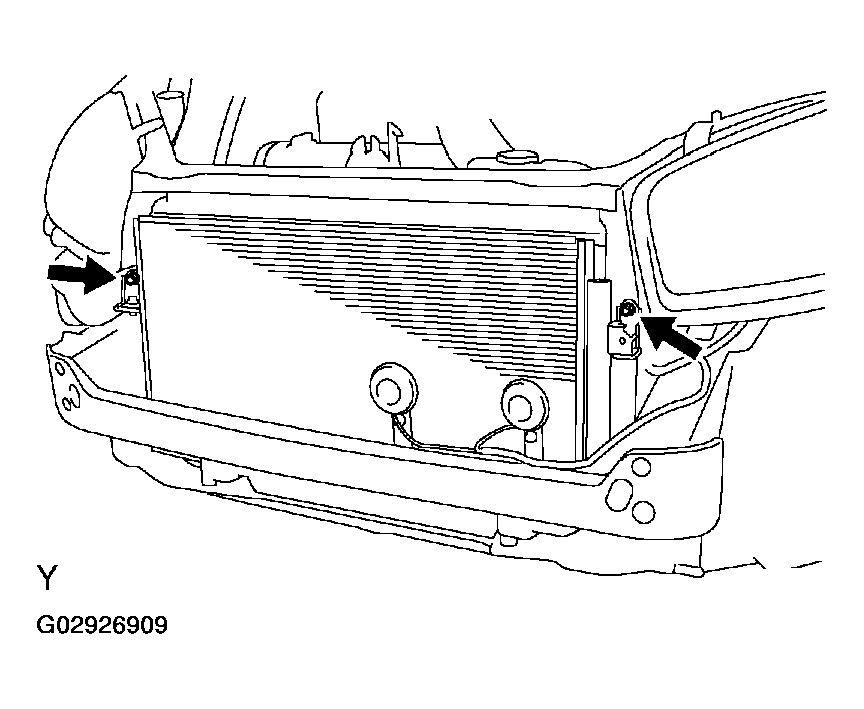

  Fig 2: Removing Condenser
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
