Compressor & Magnetic Clutch: Disassembly

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE PRESSURE PLATE
1. Using SST and a socket wrench, remove the shaft bolt.
  SST 07112-76060

  Fig 1: Removing Shaft Bolt Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

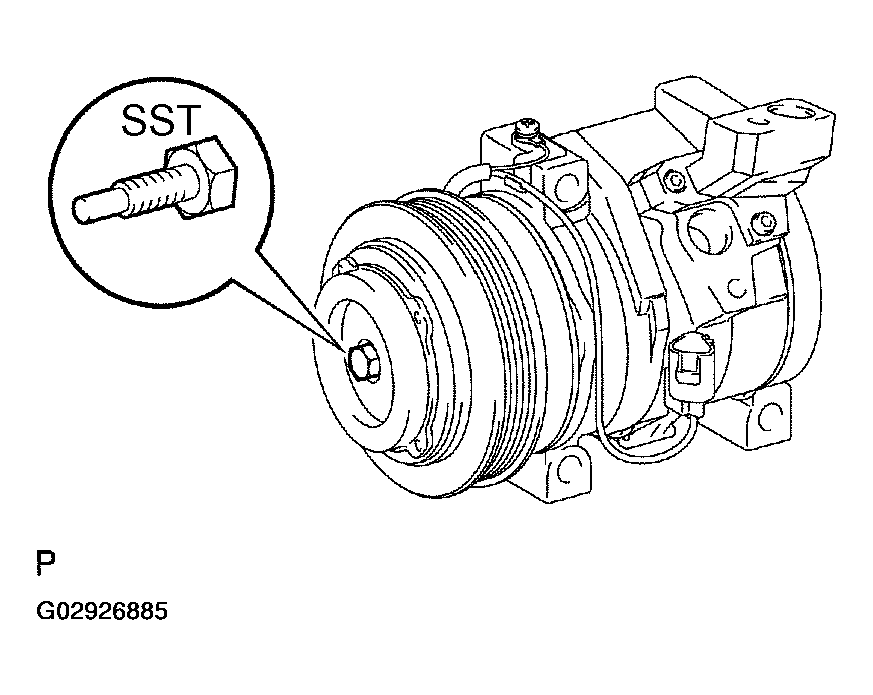

2. Install SST on the pressure plate.
  SST 07112-66040

  Fig 2: Installing SST On Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

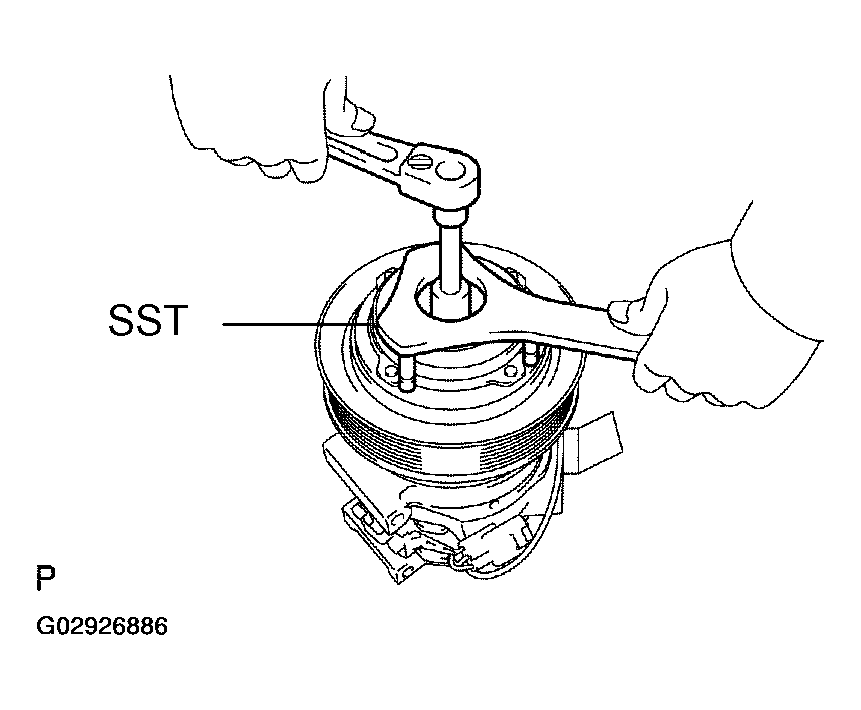

3. Using SST and socket wrench, remove the pressure plate.
  SST 07112-66040, 07112-7606

  Fig 3: Removing Pressure Plate Using SST And Socket Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

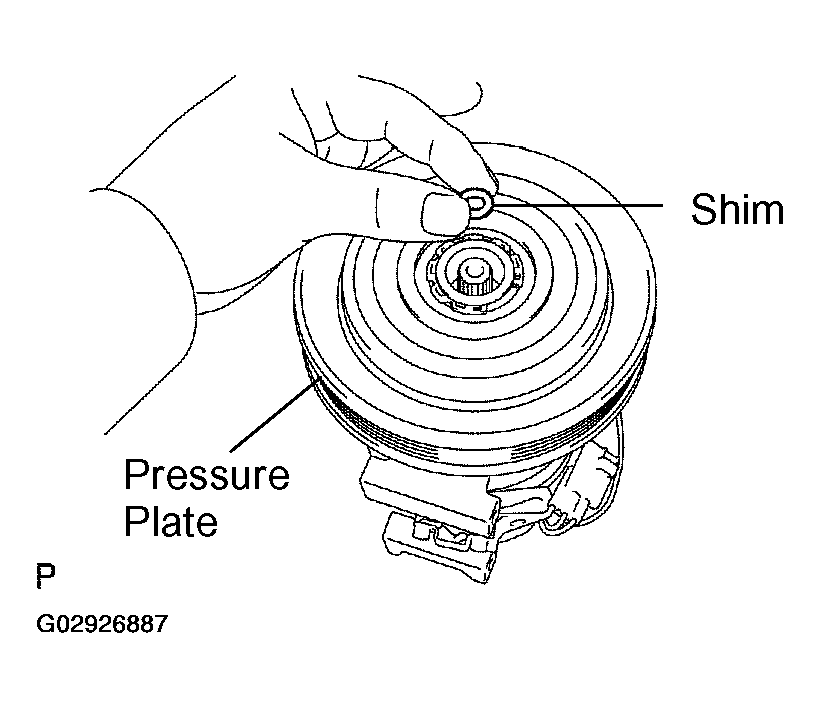

4. Remove the shims from the pressure plate.

  Fig 4: Removing Shims From Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROTOR

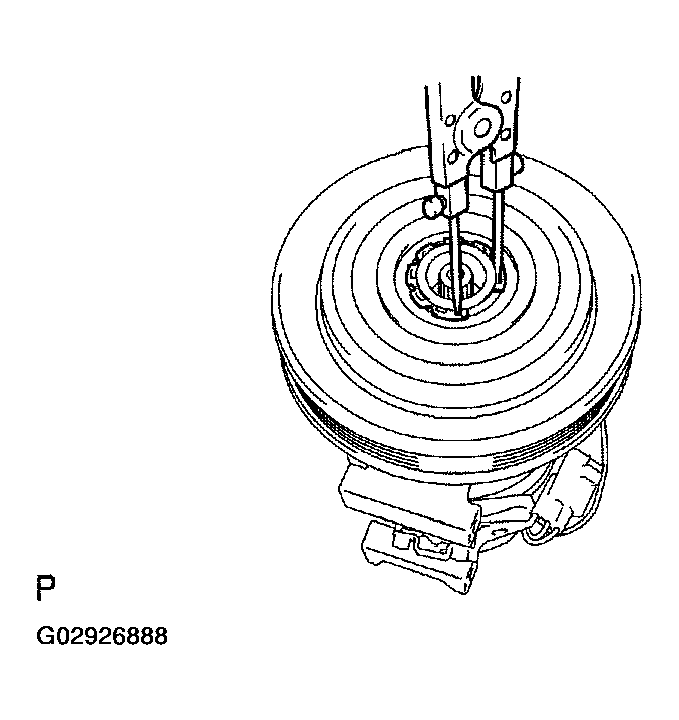

1. Using snap ring pliers, remove the snap ring.

  Fig 5: Removing Snap Ring Using Snap Ring Pliers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

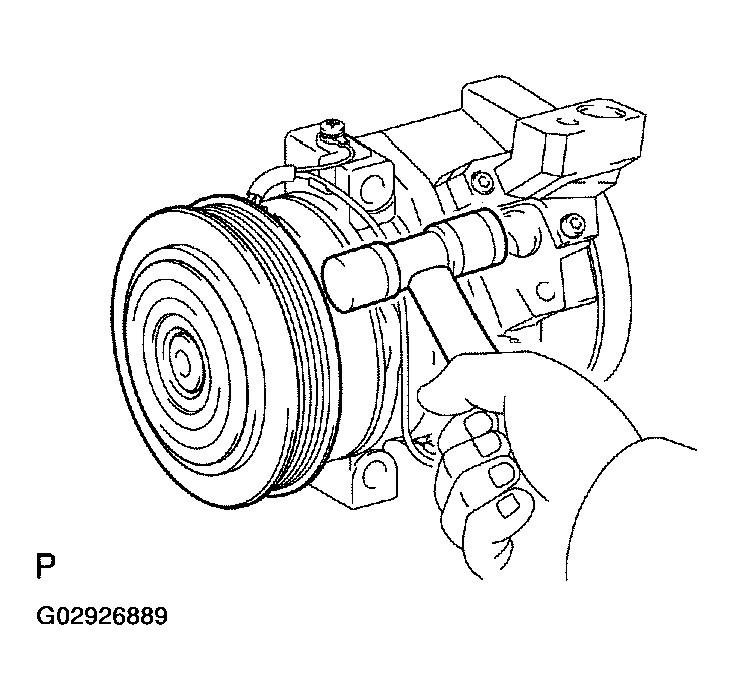

2. Using a plastic hammer, tap the rotor off the shaft.
REMOVE STATOR

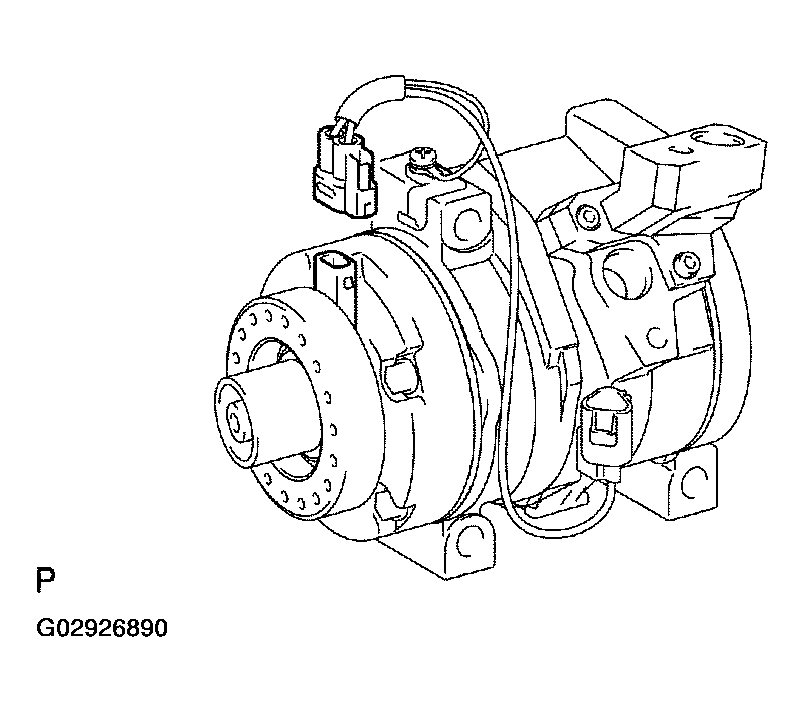

1. Disconnect the connector from the stator.

  Fig 7: Disconnecting Connector From Stator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

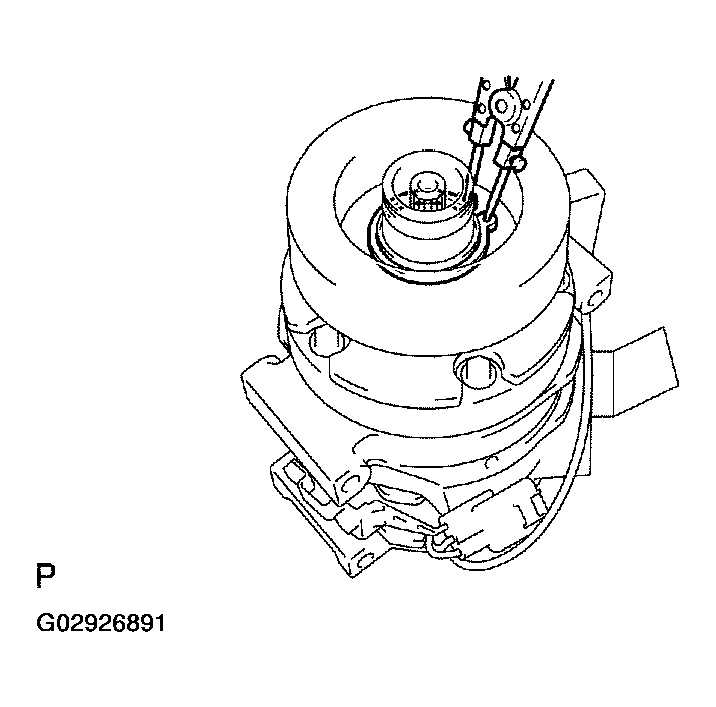

2. Using snap ring pliers, remove the snap ring.

  Fig 8: Removing Snap Ring Using Snap Ring Pliers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

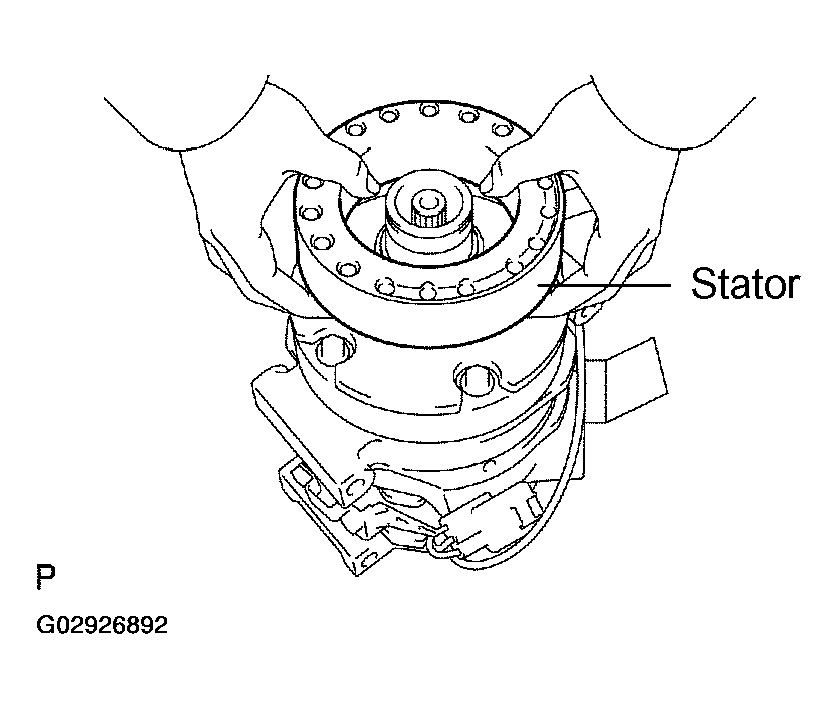

3. Remove the stator.

  Fig 9: Removing Stator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

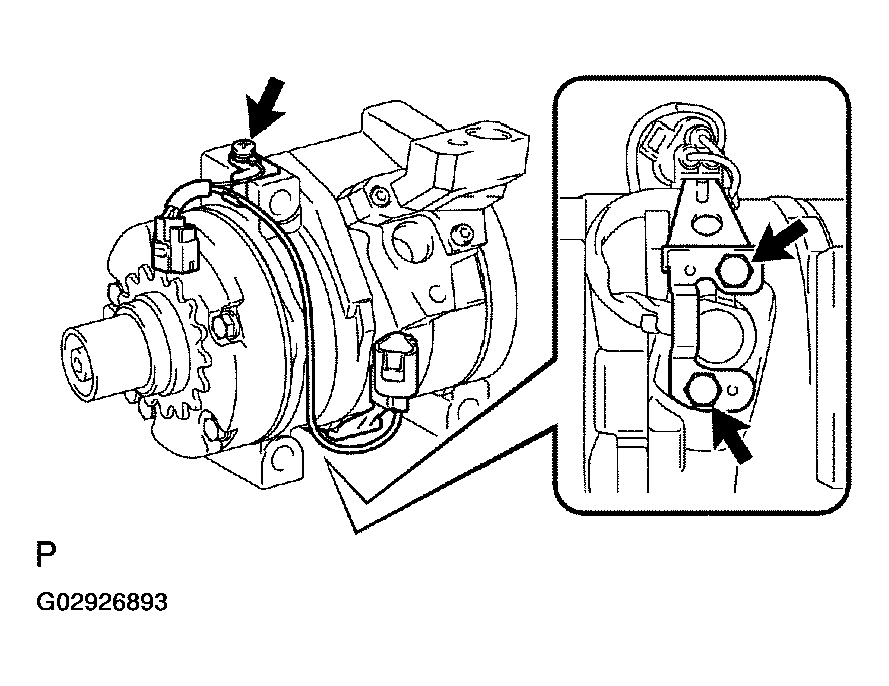

4. Remove the 2 bolts, screw, wire harness and lock sensor assembly.

  Fig 10: Removing Lock Sensor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
