Compressor & Magnetic Clutch: Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

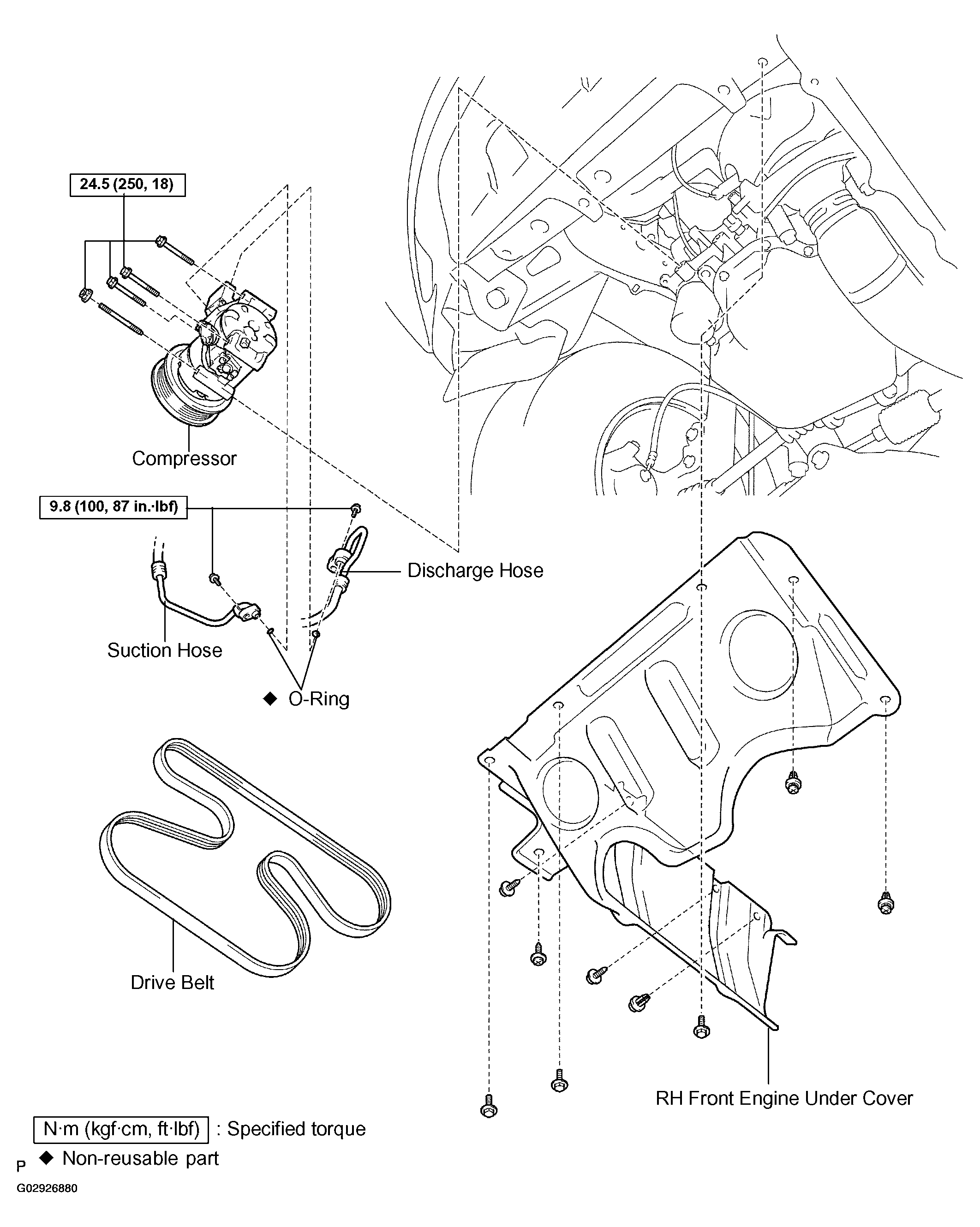

Fig 1: Identifying Components For A/C Compressor Removal
G02926880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

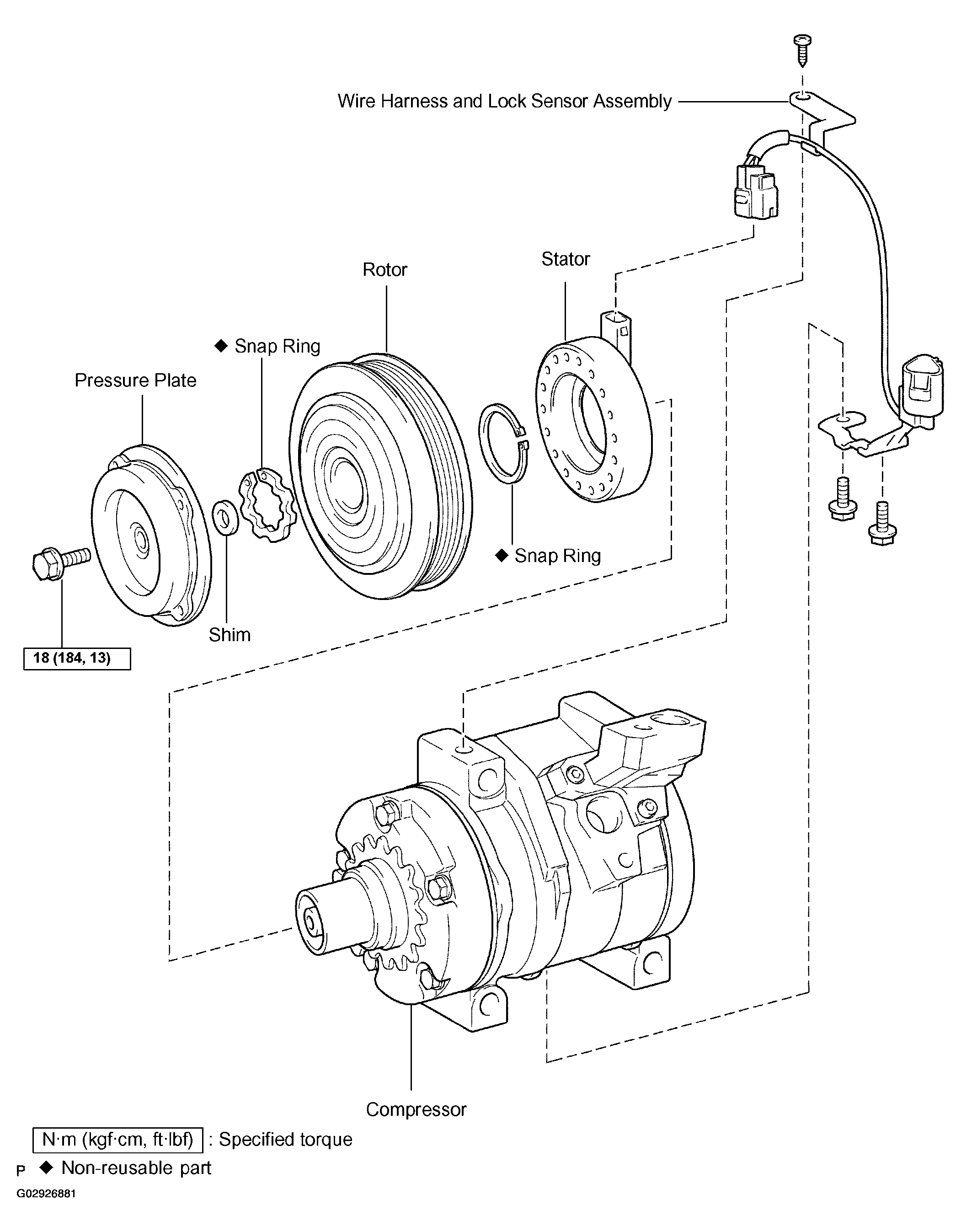

Fig 2: Identifying Magnetic Clutch Components
G02926881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
