Component Locations

WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

For component locations, see Fig 1 and Fig 2 .

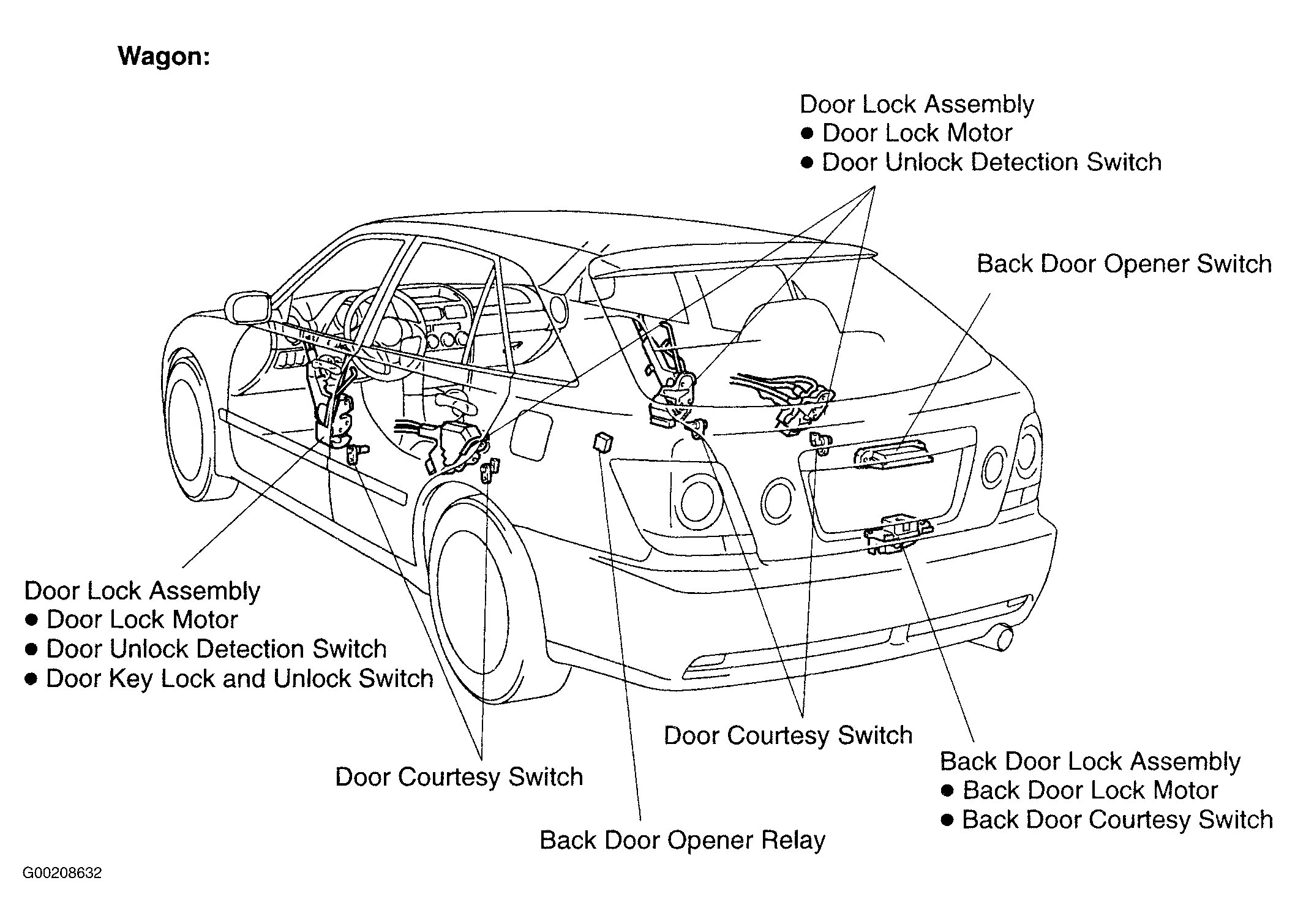

Fig 1: Locating Power Door Locks Component Locations (1 Of 2)

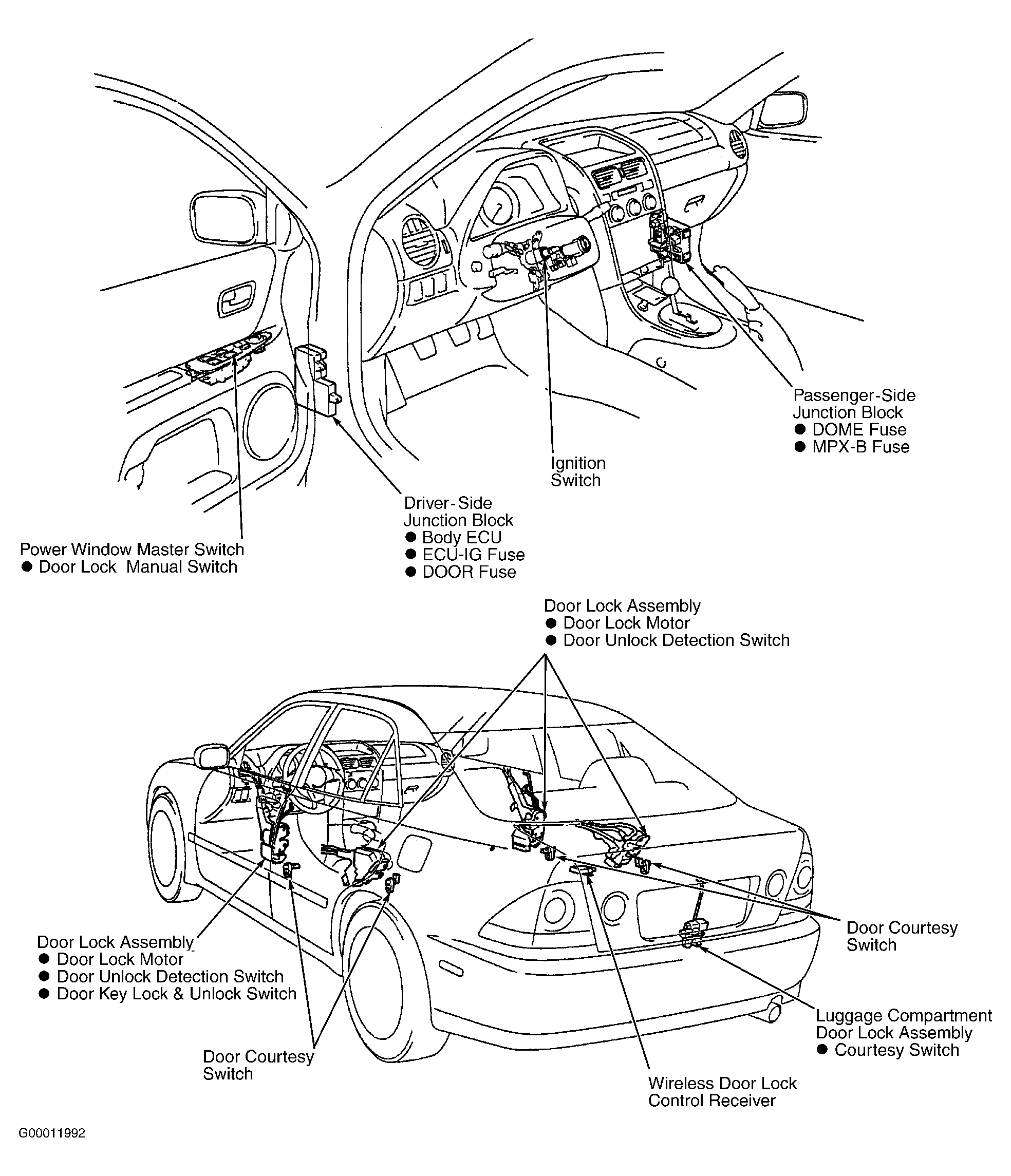

Fig 2: Identifying Power Door Lock Component Locations (2 Of 2)
