Multiplex Network Body ECU

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

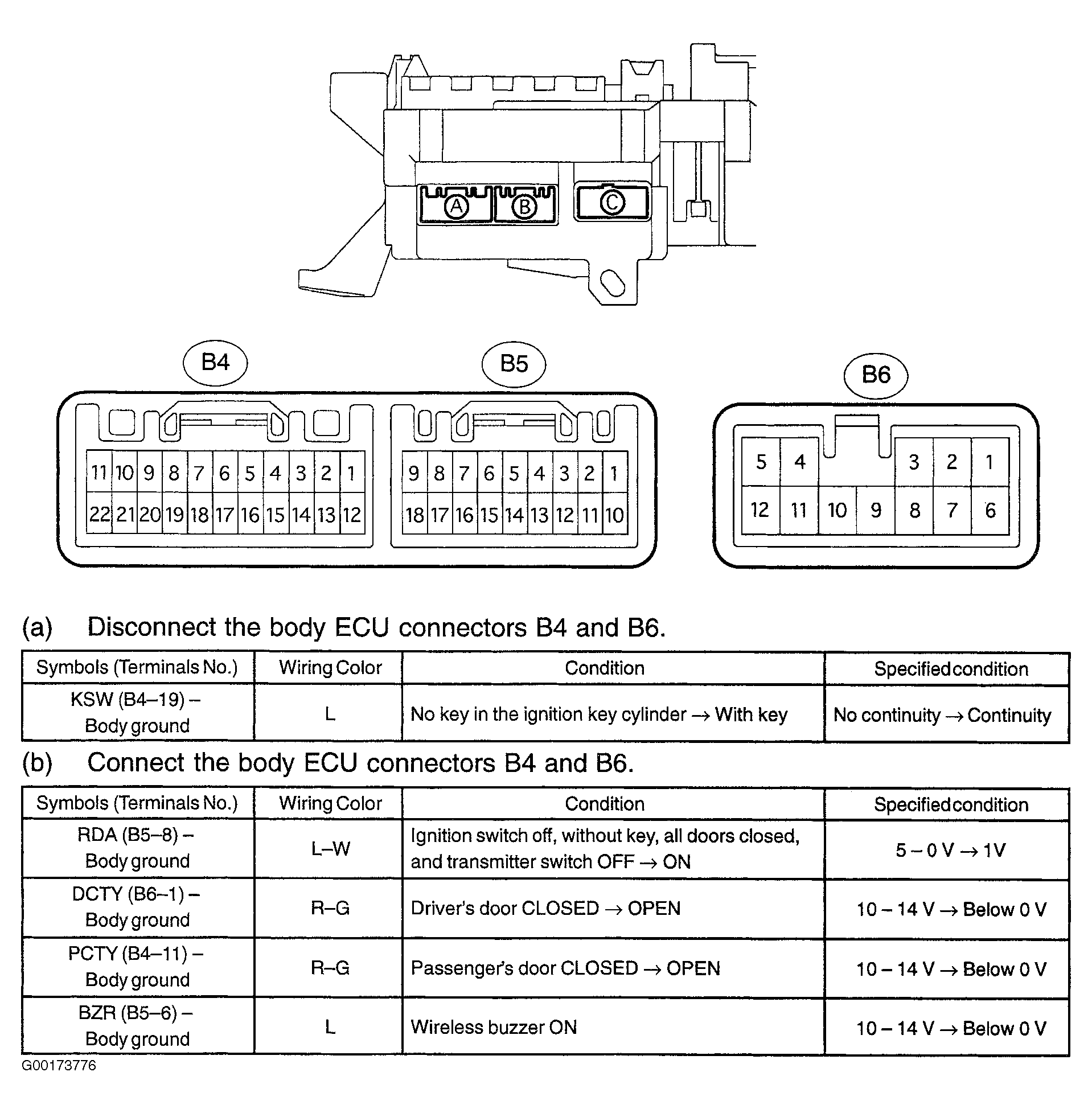

For inspection, see Fig 1.

Fig 1: Inspecting Multiplex Network Body ECU
G00173776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
