Front Seat ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

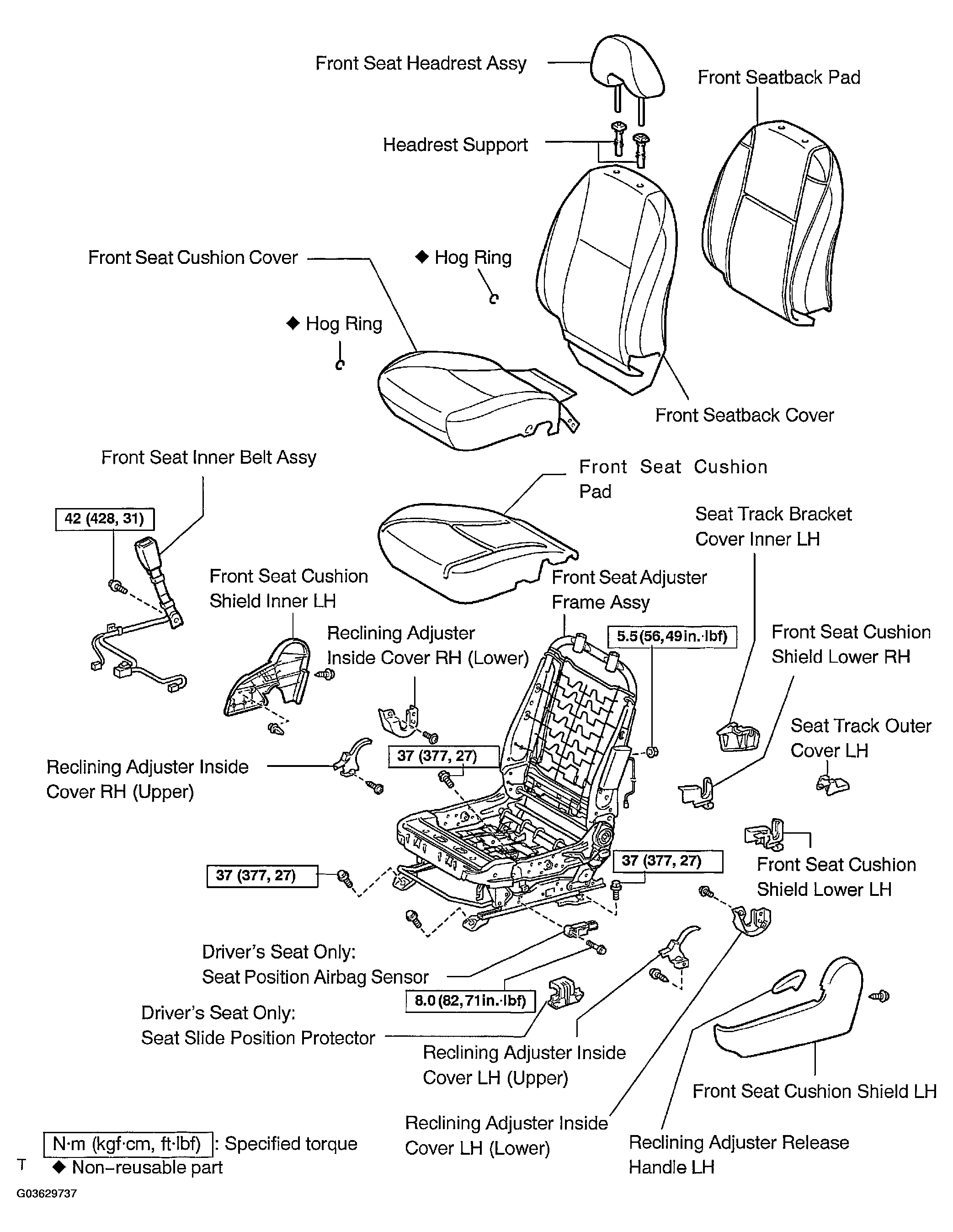

Fig 1: Identifying Component Of Front Seat Assy
G03629737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
